Cel-Fi GO Telstra Mini 4WD/Trucker Vehicle Pack incl compact 65cm RFI CD7194-B (5.5dBi) Antenna - Point to Point Distributions
Cel-Fi GO Telstra Mini 4WD/Trucker Vehicle Pack incl compact 65cm RFI CD7194-B (5.5dBi) Antenna - Point to Point Distributions

Cel-Fi GO Telstra Mini 4WD/Trucker Vehicle Pack incl compact 65cm RFI CD7194-B (5.5dBi) Antenna

G31-3/5/28MK-CD4-B

RFI - PTP DISTRIBUTIONS

Regular price $945.00 Sale

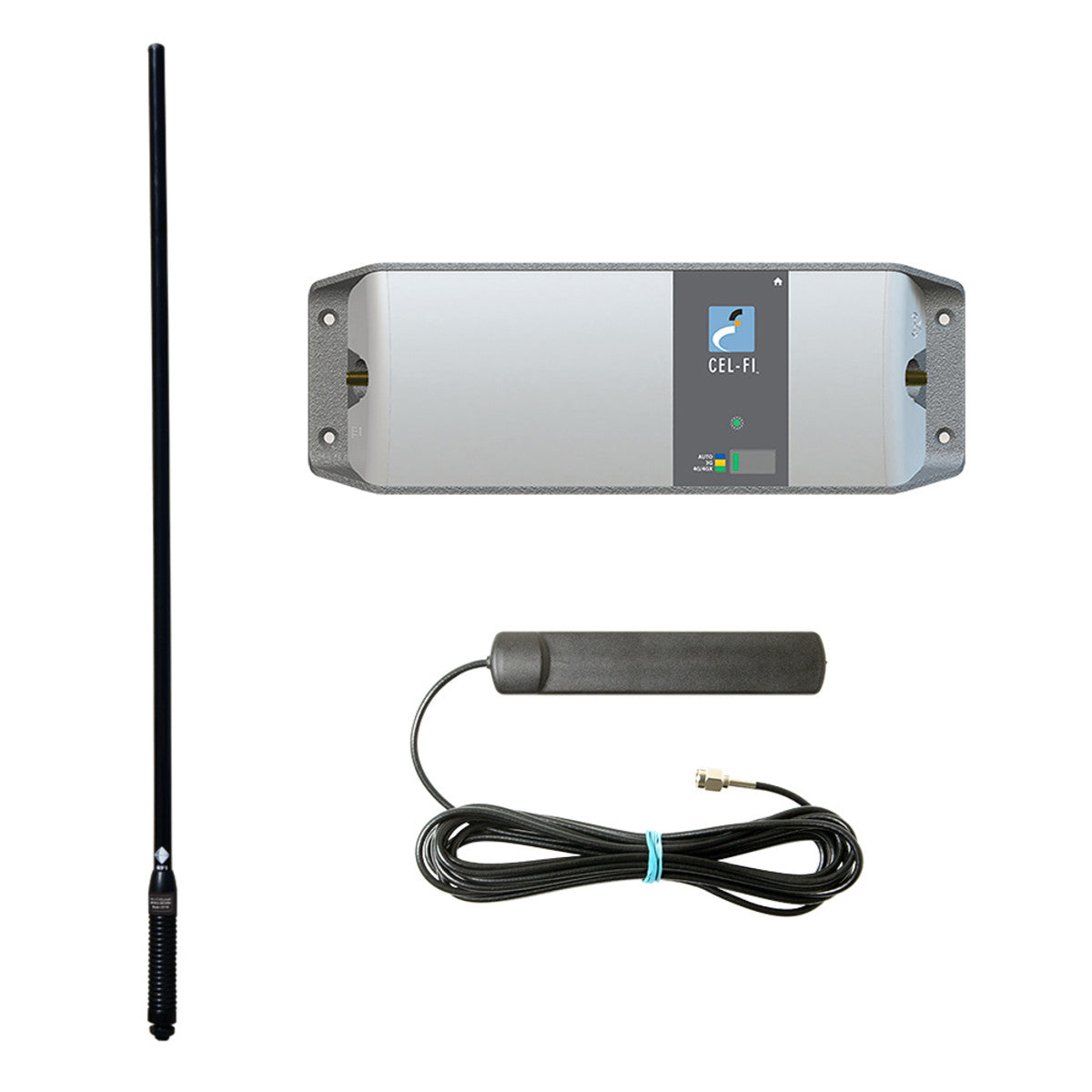

Cel-Fi GO Mobile Telstra + RFI CD7194-B (5.5dBi) Black Donor Antenna 655mm + T7-4M-SMA Internal Server Antenna (G31-3/5/28MK-CD4-B)

The Cel-Fi GO Telstra Mobile Smart Signal Repeater, the first carrier-class mobile cellular coverage solution to feature industry-leading 100 dB system gain and Nextivity’s unconditional network safe guarantee. Cel-Fi GO Mobile leverages artificial intelligence and award-winning Intelliboost signal processing to deliver the industry’s best voice and data wireless performance for mobile subscribers on the move. Cel-Fi GO Mobile is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for trucks, vehicles, RVs, and boats.

What's included in the bundle...

G31-3/5/28MK-CD4-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD-7194-B Black Donor Antenna with 5M cable FME female 655mm long
1x A-88 FME male to SMA male adaptor

CEL-FI GO is a 3G/4G cellular signal amplifier that uses Nextivity's award winning technology to provide up to 100 dB of signal gain, while unconditionally protecting the operator's network.

FEATURES:

  • 3G / 4G / 4GX Voice and Data
  • Multi-User Mobile Coverage
  • Multi-Band Support
  • Indoor / Outdoor IP54 Rated
  • Network Safe
  • Configuration for Mobile or Stationary version via Wave app

TELSTRA MOBILE SIGNAL AVAILABILITY

Check out the Telstra mobile signal coverage map

3-BAND CEL-FI GO MOBILE

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating, combined with an industrial design for harsh conditions, enables the device to support weather conditions that include water, dust, and dirt.

Get setup in 5 easy steps

Cel-Fi GO Mobile Telstra - CD7195-B (6.5dBi) Antenna - Point to Point Distributions

SUPPORTED NETWORKS
Telstra Network

IMPORTANT NOTE
Cel-Fi GO will boost a single band at a time (either 3G 850 or 4G 700 or 4G 1800). It is highly recommended to leave the unit in 3G mode to ensure voice calls are received. Voice on 4G (VoLTE) will only work in selected areas and with later model phones.



SPECIFICATIONS

Frequency: 698-960MHz / 1710-2200MHz / 2300-2700MHz
Maximum Power: 10 Watts
Band 4G LTE
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 5.0 / 4.5 / 5.5
Cable and Connector 5m of 9006 low loss cable with FME
Suggested Installation Bullbar, guard, m,irror
Radome Diameter mm 15.6
VSWR <2.5:1
Length mm 655


Warranty: 2 Years.

Also available in these antenna configurations

Cel-Fi GO Mobile Telstra - No Antenna

Cel-Fi GO Mobile Telstra + RFI T7-4M-SMA Internal Antenna

Cel-Fi GO Mobile Telstra + RFI CD7195-B (6.5dBi) Antenna 89cm

Cel-Fi GO Mobile Telstra + RFI CD7197-B (6.5dBi) Antenna 114cm

Cel-Fi GO Mobile Telstra + RFI CDR7195-B (6.5dBi) Antenna 93cm

Cel-Fi GO Mobile Telstra + RFI CDQ7195-B (6.5dBi) Antenna 97cm

Cel-Fi GO Mobile Telstra + CDQ7197-B (6.5dBi) Antenna 121cm


Documentation

Cel-Fi GO Data Sheet

Cel-Fi GO Mobile Quick Start Guide

Cel-Fi GO Trouble Shooting Support

Cel-Fi GO Technical Guide

View the RFI CD7100 Series Technical Data Sheet

T7-4M-SMA Product Data Sheet


Wave App

Nextivity Wave App - iPhone, Android and PC


What's in the Box

G31-3/5/28MK-CD4-B
1x CEL-FI-GO Telstra 3/5/28M mobile unit
1x CEL-FI-GO 12VDC CLA power lead
1x RFI T7-4M-SMA Internal Server Antenna with 4M cable SMA male
1x RFI CD-7194-B Black Donor Antenna with 5M cable FME female 655mm long
1x A-88 FME male to SMA male adaptor
