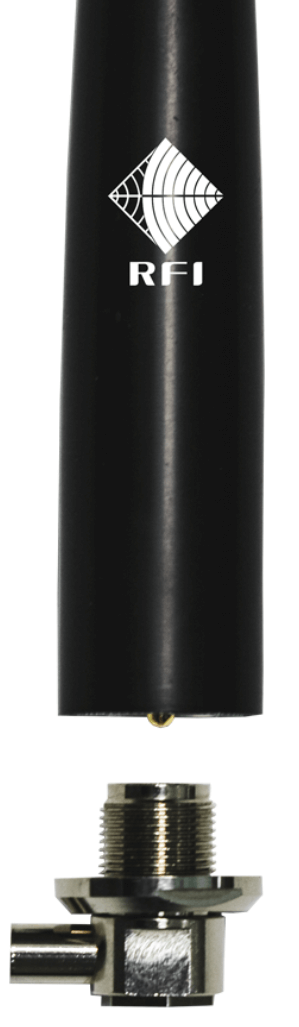

RFI CD30-148470-53 Dual Band VHF/UHF Mobile Antenna - Whip & MBC Base c/w 5m cable

CD30-148470-53

RFI

Regular price $206.00 Sale

RFI Dual Band VHF/UHF Mobile Antenna - Whip & MBC Base c/w 5m cable (unterminated)

RFI’s new dual band VHF/UHF antenna supports multi-band radio technology to provide interoperability among emergency management and response personnel, regardless of the frequency band used. It provides outstanding coverage of VHF and UHF bands frequencies in an easy-to-install, no tune design. Its PCB based matching circuit is housed in a rugged, impact-resistant housing for maximum durability and its base is designed to interface with standard SO-239 (MBC) mobile base mounts to facilitate existing installation upgrades on public safety vehicles.


Features:
- No tune, dual band coverage of VHF (148-174 MHz) and UHF (400-470 MHz) frequencies

- Rugged construction for long lasting, reliable emergency response applications

- MBC (SO-239) compatible interface for easy installation or upgrade

- Excellent VSWR performance across frequencies

DESIGNED & MANUFACTURED IN AUSTRALIA.

NOTE: The CD30 is ground dependant and should be mounted on a ground plane or close to a ground plane.


Specifications:

Maximum Power: 40W @ VHF and 25W @ UHF
Impedance: 50 Ohms
Band 148-174MHz & 400-470MHz
Tunable Bandwidth Full
Nominal Gain dBi 1 / 4.5
Power W 50
Whip Material Flexible tapered stainless steel whip
Suggested Installation MBC base (included) with 5m cable (unterminated)
Whip Length mm 496
VSWR <2.0:1
Mounting MBC (PL259) base (included)



Documentation

CD30 Series Product Data Sheet
