Smart Park PDC-125 Programmable Parking Sensor Kit (Front or Rear)
Item Code: PDC-125PI
Advantages...
- The most advanced sensor system available.
- 2 or 4 Sensor / Front or Rear - one kit for all - Hole size: 20mm
- Automatic active learning front system - Active when you need it & silent when you don’t.
- Adjustable range and sensitivity

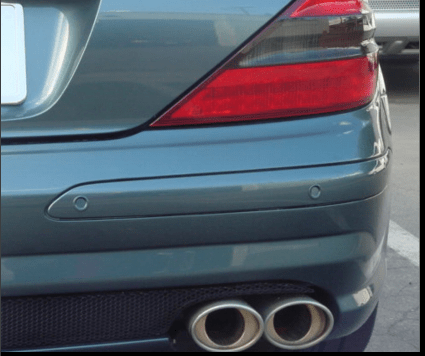

- Installs into plastic or metal bumpers.
- Learning capability to ignore vehicle mounted objects
- Auto-mute capability for use when towing
- Adjustable Audio/Visual display unit included with high quality speaker

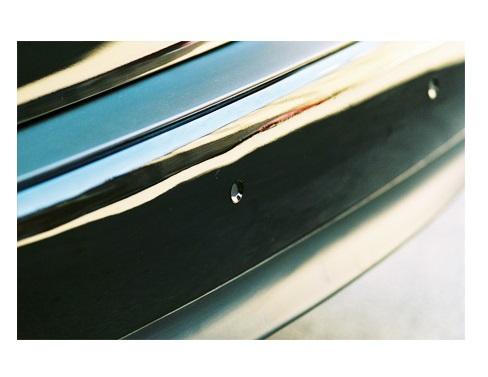

- Low profile, small diameter sensors
- Paintable black sensors
- Voltage Range 9v-16v
- Self-diagnostic check on startup
- Warranty - 3 Years
- Variable Detection Range
- Variable sensitivity
- Self-test at startup to ensure accurate function
- Learning capability to ignore vehicle mounted obstacle such as tow-bars and bicycle racks
- Auto-mute option for use when towing or off-roading
- Front system automatic activation system
|
Item |
PDC125PI |
|
|
Power Requirements |
DC 12V |
|
|
Current Draw |
<120mA |
|
|
The Number of Sensors |
4 pcs |
|
|
Detecting Distance |
0~200 cm |
|
|
Sensor Cable Length |
6 m |
|
|
Operating Temperature Range |
-30℃ ~ +80℃ |
|
|
Storage Temperature |
40℃ ~ +100℃ |
|
|
Ultrasonic Frequency |
58 KHz |
|
|
Alarm Type |
Speaker |
|
|
Supporter |
Yes |
|
|
Mode |
Rear/Front |
|
|
Setting Function |
Rear/Front, 2/4 Sensor, Far/Near Range, High/Low Sensitivity |
|
|
Zone Range
|
Center |
0~40~100~200 cm |
|
Side Sensor |
0~40~80 cm |
|
|
Response time |
0.2S |
|
3 Year Warranty
FRONT Install DIP Switch Settings
Dip Sw1 - Down
Dip Sw2 - Up
Dip Sw3 - Down
Dip Sw4 - Down
REAR Install DIP Switch Settings
Dip Sw1 - Up
Dip Sw2 - Up
Dip Sw3 - Up
Dip Sw4 - Down
Documentation
See our brochure - click here
PDC125PI Operation & Installation Manual
