RFI PSP6927-5102-N 2-Way Splitter / Combiner 698-2700MHz - 300W, N Type

PSP6927-5102-N

RFI - PTP DISTRIBUTIONS

Regular price $35.00 Sale

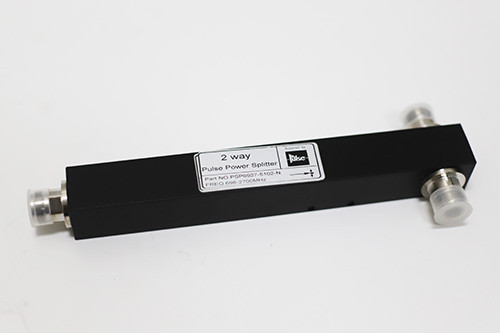

RFI Pulse PSP6927-5102-N 2-Way Splitter / Combiner 698-2700MHz - 300W, N Type

RFI Pulse Power Dividers / Combiners are used in a variety of RF power dividing and combining applications. Typically used in DAS (Distributed Antenna Systems) for distributing power throughout feeder cable networks.

PSP6927-5102-N Features:

- Low PIM performance,

- 150dBc -Broadband performance covering full 698-2700MHz

- Suitable for use with analogue or digital RF communications.

Specifications

Splits 2
PIM 3rd Order 2x43dBm <150dBc
Finish Black - Painted
Connector Types All Termiantion Ports N (F)
Power Rating Watts 300W
Operational Temperature Range -25° C to +75° C
Connector N(F)
Frequency Range 698 - 2700
Weight [kg] 0.5
Component Type Splitter/Combiner
