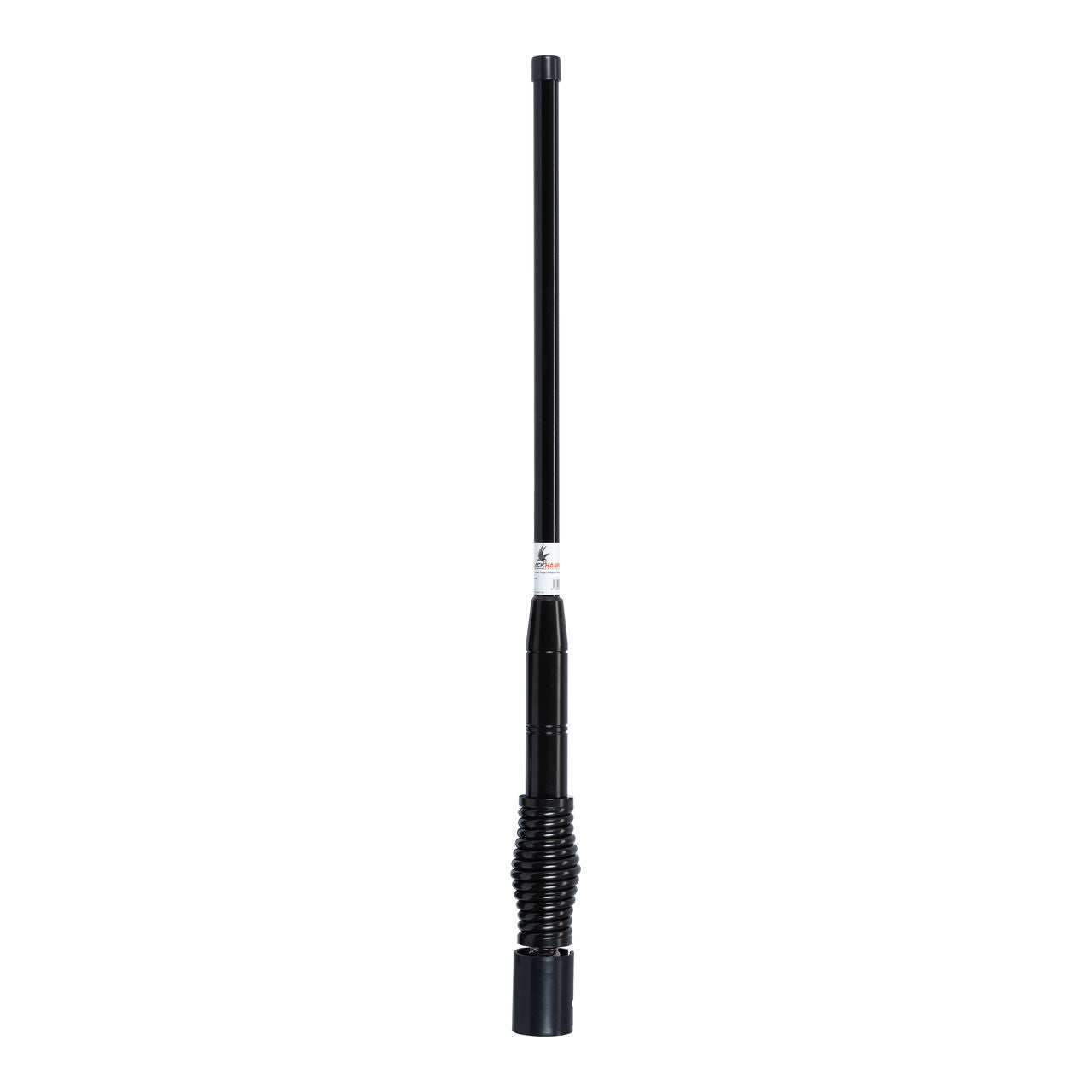

Blackhawk ANT-BH-OM-205B Blackhawk 4G Trucker Edge Compact Antenna, 698 To 2200 MHz, 68cm high.
Enhance mobile communication with Blackhawk 4G Trucker Edge Compact Antenna. Wide frequency range, SMA Male connector. Trust Blackhawk Antennas for reliable signal boost.
The Blackhawk Trucker EDGE Compact Antenna – 4/6dBi is ideal for all carrier bands Telstra, Optus and Vodafone 4G/*5G.
Future-proof your vehicle installations with this high grade, ruggedized Omni Trucker Antenna. This premium-grade cellular antenna will satisfy 3G and 4G capabilities for all the major networks in Australia and can be used for commercial and industrial 3G and 4G applications.
Trucker EDGE Compact Features:
- 5G Ready*
- 4 dBi gain across lower bands 698-960 MHz
- 6 dBi gain across upper bands 1710-2170 MHz
- Can be mounted directly on a bullbar
- Suitable for all mobile carriers

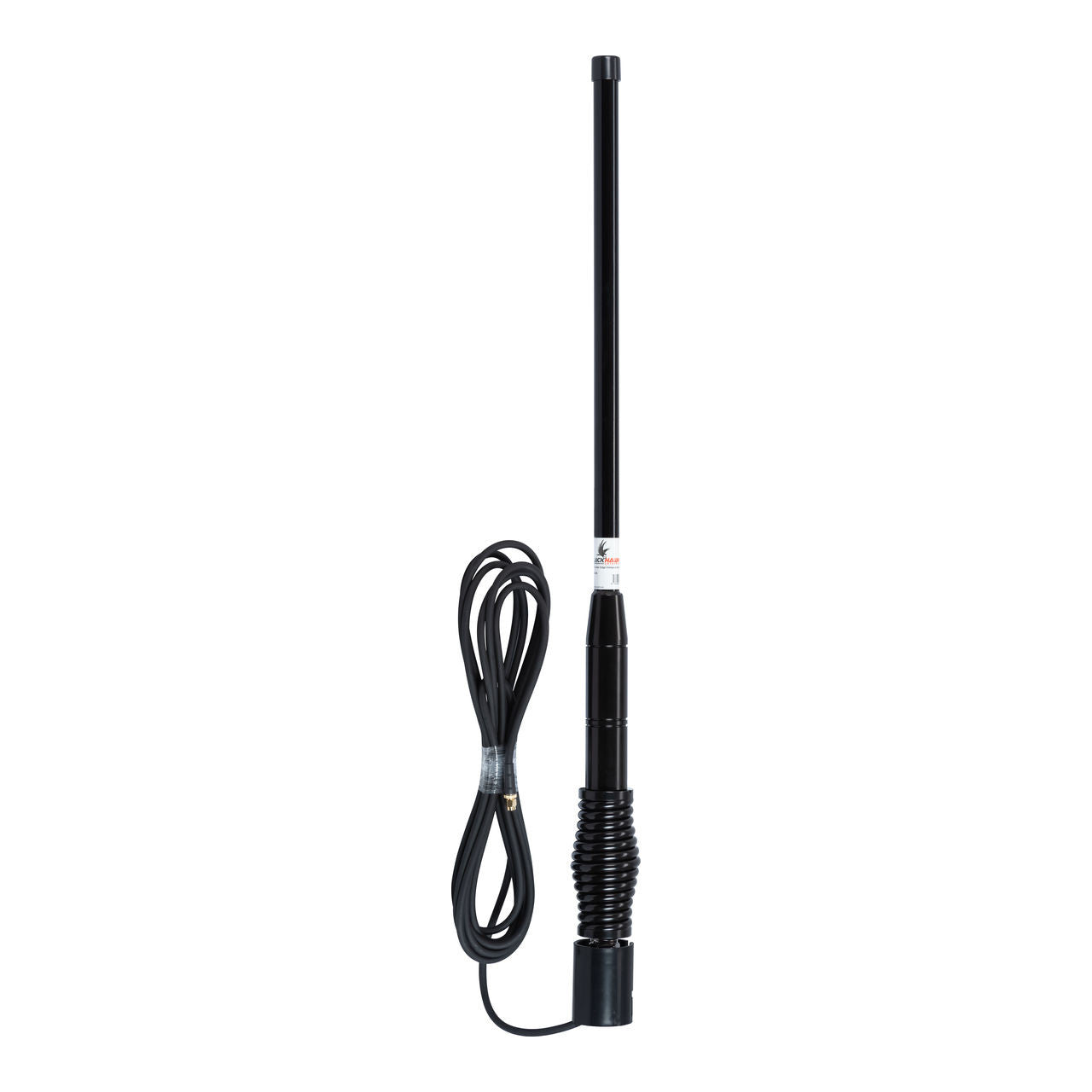

- Included is 4 metres of LMR240 Ultra Flex cable fitted with SMA/M connector
- Made of ruggedized fibreglass to withstand 210km/h winds
- Bracket additional
- 68cm in height
*5G via Dynamic Spectrum Sharing (DSS) on compatible repeaters including the CEL-FI R41.
The Blackhawk Omni Trucker Edge Compact at 68cm will provide the perfect solution for voice and data applications where high gain antennas are required while on the move. Combine with a CEL-FI ROAM in your vehicle to never be out of contact when away from home.
Specifications
ELECTRICAL SPECIFICATIONS
| Frequency Range | 698-960 MHz / 1710-2170 MHz |
| Input Impedance | 50 Ω |
| Peak Gain | 4 / 6 dBi |
| VSWR | ≤2.0:1 / ≤2.0:1 |
| Polarisation | Vertical, linear |
| Horizontal Beamwidth | 360° (omnidirectional) |
| Vertical Beamwidth | 48 / 23° |
| Maximum Input Power | 50 W |
MECHANICAL SPECIFICATIONS
| Input Connector | SMA Male |
| Cable | 4 m PT240 cable |
| Lightning Protection | DC Ground |
| Antenna Construction | Fibreglass radome, heavy duty spring base |
| Dimensions | 680 x Ø20 mm |
| Weight | 1.5 kg |
| Rated Wind Velocity | 210 km/h |
| Operating Temperature | -40 to +65°C |
