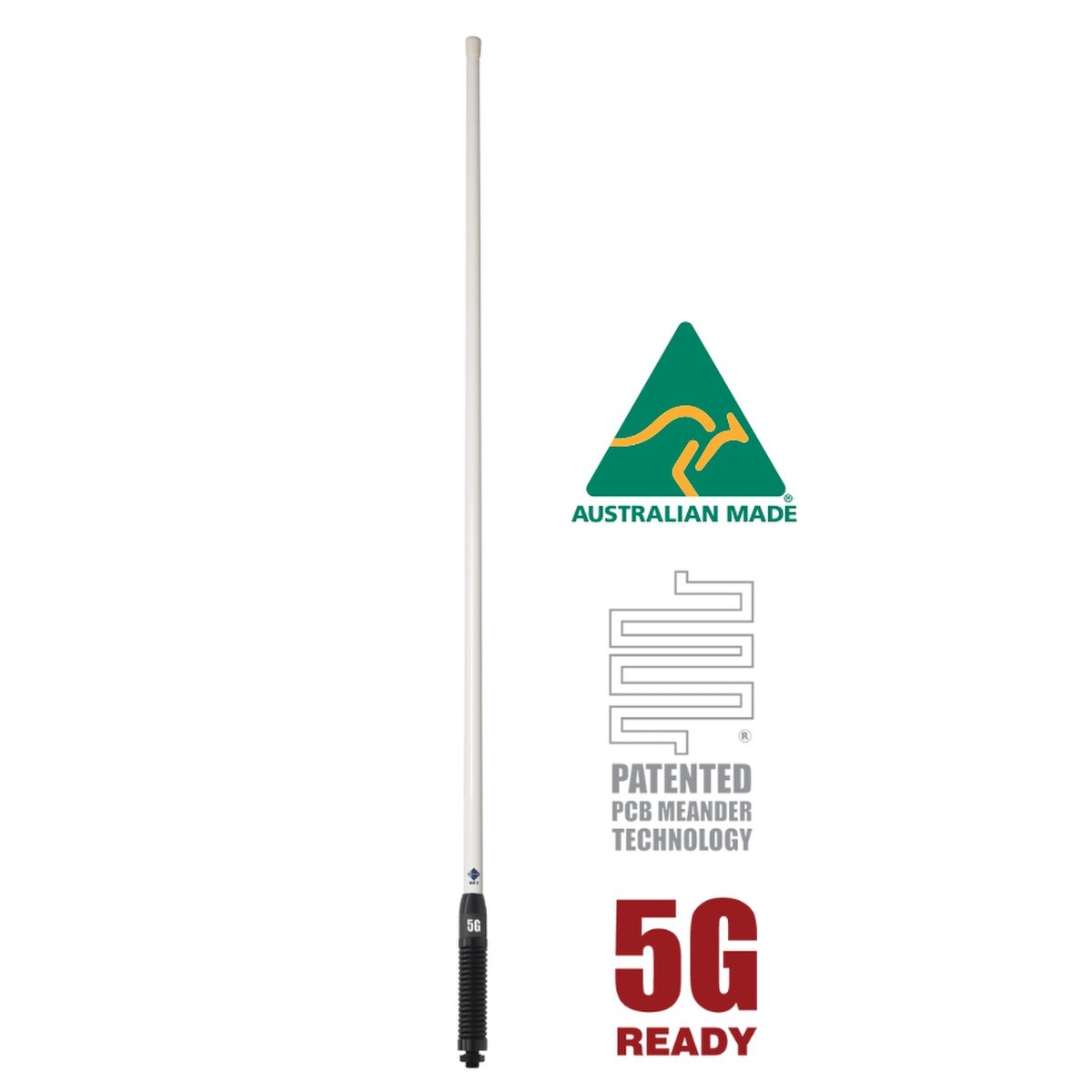

RFI CD8197-W 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White Radome Black 1152mm
The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.
KEY FEATURES:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
| Packaging | Retail Hang Sell Bag |
| Whip Material | Fibreglass (White) |
| Cable And Connector | 5m RG58 (9006) Low Loss Cable Terminated with SMA(M) Connector |
| Frequency Range | 1710-2170, 2300 - 2700, 3400 - 3800, 698 - 960 |
| Nominal impedance | 50 |
| Power w | 10 |
| Nominal Gain Dbi | 7.5 / 4.5 / 5.5 / 6.5 |
| Polarisation | Linear |
| VSWR | <2.5:1 |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni-directional |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 |
| Length [mm] | 1152mm |
| Brand | RFI |
| Weight [kg] | 0.84 |
| Height [mm] | 1140 |
