RFI - PTP DISTRIBUTIONS (Optus Network)

SKU:KIT-G31-3/8/28S-LPDA-DAS

Cel-Fi GO G31-3/8/28S-LPDA-DAS Stationary OPTUS - 11dBi LPDA7030 | 6dBi DAS 6938-SDP150 Internal Panel Mount Antenna Bundle

Cel-Fi GO G31-3/8/28S-LPDA-DAS Stationary OPTUS - 11dBi LPDA7030 | 6dBi DAS 6938-SDP150 Internal Panel Mount Antenna Bundle

Regular price $1,322.00 AUD
Regular price Sale price $1,322.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock, ready to ship
View full details

Cel-Fi GO Stationary Optus - 11dBi LPDA7030 Directional Antenna | 6dBI DAS6938 Panel Mount Donor Antenna Bundle (KIT-G31-3/8/28S-LPDA-DAS)

Each Cel-Fi GO - Stationary Optus LPDA/DAS bundle consists of...

G31-3/8/28S Optus 3/8/28S Cel-Fi GO Stationary Unit. Includes 240VAC Power Pack

RFI LPDA7030-11-10SMA 11dBi Log Periodic Antenna GSM 700-1000 MHz/1500-3000Mhz. inc 10M cable terminated with SMA connector

DAS6938-SDP150-N DAS LTE Directional Panel Antenna 698-3800MHz, -150dBc, N type connector, IP55

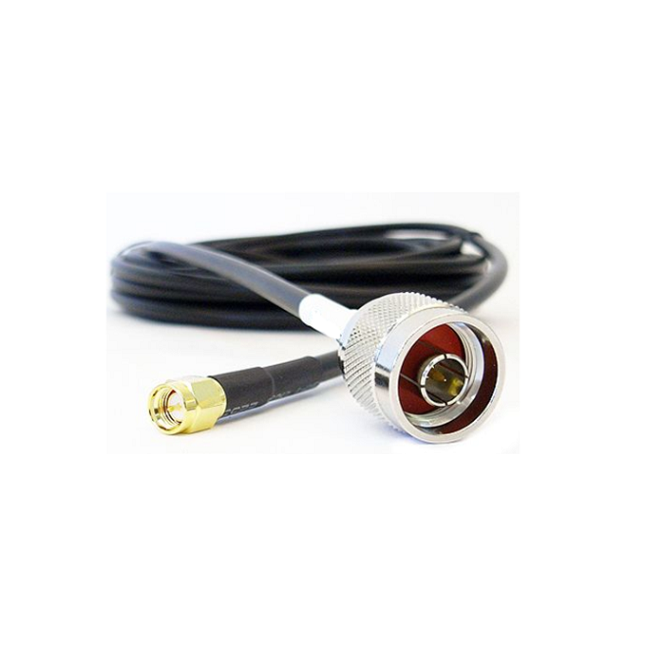

9207N-10 Cable Extension 10Mts - SMA Male to N Female

The Cel-Fi GO Stationary Smart Signal Repeater, the first carrier-class indoor/outdoor cellular coverage solution to feature industry leading 100 dB system gain and Nextivity’s unconditionally network safe guarantee. Cel-Fi GO Stationary leverages the award-winning Intelliboost signal processing to deliver the industry’s largest coverage footprint with the best voice and data wireless performance. Cel-Fi GO Stationary is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for use in commercial properties, government buildings, agricultural settings, small manufacturing operations, rural areas, businesses, and large homes.

Cel-Fi Go Features:

  • 3G / 4G / 4GX Voice and Data for the Telstra Network
  • Up to 1,500 m2 of Coverage
  • Multi-Band Support
  • Indoor / Outdoor IP54 Rated.
  • Network Safe
  • Configure for Mobile or Stationary use via Wave app



3-Band Cel-Fi GO Mobile

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating, combined with an industrial design for harsh conditions, enables the device to support weather conditions that include water, dust, and dirt.

Cel-Fi GO Stationary Telstra - 11dBi LPDA7030 | 8dBi CPL6927 Antenna Bundle - Point to Point Distributions
SUPPORTED NETWORKS
Optus Network




SPECIFICATIONS - Cel-Fi Go Stationary

Available Frequency Bands (MHz) Band 3/8/28
Frequency Range 1800Mhz, 900Mhz and 700Mhz
RF Gain 100dB
RF Connectors SMA
Power Supply GO unit + AC adapter
Ambient Temp. Range 0° to 65°C
Environment IP54
Weight (inc. frame) 600gm
Dimensions 255mm(W) x 87mm(D) x 28mm(H)
Output Impedance 50 Ohms
Current Consumption 15W
DC Supply 9.6 to 28.8 VDC via external supply
Case One piece extruded Aluminium
Frequency - Layered Navigation Multiband



Specifications - LPDA7030-11-10SMA

Nominal Gain dBd 11dBi / 9dBd
Frequency MHz 700 - 1000 / 1500 - 3000
Tunable Bandwidth Full band.
VSWR <2.0:1
Polarisation Linear
Vertical Beamwidth 50 (± 5)
Horizontal Beamwidth 55 (± 5)
Front/Back Ratio dB 20 dB (± 3 bB)
Power W 10
Dimensions mm 1100 x 180 x 60
Length mm 1100
Weight (kg) 1.85
Termination 10 meters cable terminated with male SMA connector



Specifications - DAS6938-SDP150-N

Frequency Range 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
Base Gain 0 to 3 dBd
Nominal impedance 50
Power w 50
Nominal Gain Dbi 5/06/2007
Dimensions 165(L) x 155(W) x 50(H)
VSWR <1.8:1 / <1.5:1 / <1.8:1
Termination Single 300mm tail with N (F) connector
Construction UV resistant White ASA, IP55
Passive IM 3rd Order (2x20W) dBc -150
Horizontal Beamwidth 90 / 80 / 70
Brand RFI
Weight [kg] 0.33



Get setup in 5 easy steps

Cel-Fi GO Stationary Telstra - 11dBi LPDA7030 | 8dBi CPL6927 Antenna Bundle - Point to Point Distributions

Warranty: 2 Years





Documentation

Cel-Fi GO Data Sheet

Cel-Fi GO Stationary Quick Start Guide

Cel-Fi GO Trouble Shooting Support

Cel-Fi GO Technical Guide

LPDA7030-11-10SMA Technical Data Sheet

View LPDA7030-11-10SMA Installation Instructions



Wave App

Nextivity Wave App - iPhone, Android and PC





What's in the Box

KIT-G31-3/8/28S-LPDA-DAS
1x CEL-FI-GO Optus 3/8/28S Stationary unit
1x 240VDC Power Pack
1x RFI LPDA7030-11-10SMA 11dBi Log Periodic Antenna - 10Mtr cable
1x DAS6938-SDP150-N DAS LTE Directional Panel Antenna 698-3800MHz, -150dBc, N type connector, IP55
1x 9207N-10 Cable Extension 10Mts - SMA Male to N Female


The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)

Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers
