SKU:KIT-G31-3/8/28SK-DL-1SO
Cel-Fi GO G31-3/8/28SK-DL-1SO Stationary OPTUS - 11dBi LPDA7038 | 6dBi DAS 6938-SOC150 Omni Ceiling Mount Antenna Bundle
Cel-Fi GO G31-3/8/28SK-DL-1SO Stationary OPTUS - 11dBi LPDA7038 | 6dBi DAS 6938-SOC150 Omni Ceiling Mount Antenna Bundle
Cel-Fi GO Stationary Optus - 11dBi LPDA7038 | 6dBi DAS 6938-SOC150 Omni Directional Ceiling Mount Antenna Bundle (KIT-G31-3/8/28SK-DL-1SO)

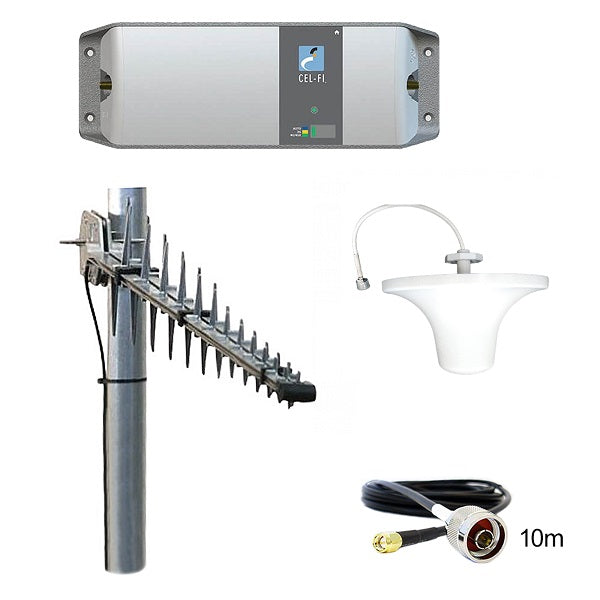

Each Cel-Fi GO - Stationary Optus LPDA/DAS bundle consists of...
OPTUS-G31-3/8/28S Optus 3/8/28S Cel-Fi GO Stationary Unit. Includes 240VAC Power Pack
RFI LPDA7038-11-10SMA 11dBi Log Periodic Antenna GSM 700-1000 MHz/1500-3000Mhz. inc 10M cable terminated with SMA connector
DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz, N type connector
9207N-10 Cable Extension 10Mts - SMA Male to N Female
The Cel-Fi GO Stationary Smart Signal Repeater, the first carrier-class indoor/outdoor cellular coverage solution to feature industry leading 100 dB system gain and Nextivity’s unconditionally network safe guarantee. Cel-Fi GO Stationary leverages the award-winning Intelliboost signal processing to deliver the industry’s largest coverage footprint with the best voice and data wireless performance. Cel-Fi GO Stationary is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for use in commercial properties, government buildings, agricultural settings, small manufacturing operations, rural areas, businesses, and large homes.
Cel-Fi Go Features:
- 3G / 4G / 4GX Voice and Data for the Optus Network
- Up to 1,500 m2 of Coverage
- Multi-Band Support
- Indoor / Outdoor IP54 Rated
- Network Safe
- Configure for Mobile or Stationary use via Wave app
3-Band Cel-Fi GO Mobile
The evolved smart signal booster that can amplify cellular signals up to 100 dB.
The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating, combined with an industrial design for harsh conditions, enables the device to support weather conditions that include water, dust, and dirt.
SPECIFICATIONS - Cel-Fi Go Stationary
Available Frequency Bands (MHz) | Band 3/8/28 |
Frequency Range | 1800Mhz, 900Mhz and 700Mhz |
RF Gain | 100dB |
RF Connectors | SMA |
Power Supply | GO unit + AC adapter |
Ambient Temp. Range | 0° to 65°C |
Environment | IP54 |
Weight (inc. frame) | 600gm |
Dimensions | 255mm(W) x 87mm(D) x 28mm(H) |
Output Impedance | 50 Ohms |
Current Consumption | 15W |
DC Supply | 9.6 to 28.8 VDC via external supply |
Case | One piece extruded Aluminium |
Frequency - Layered Navigation | Multiband |
Specifications - LPDA7030-11-10SMA
Nominal Gain dBd | 11dBi / 9dBd |
Frequency MHz | 700 - 1000 / 1500 - 3000 |
Tunable Bandwidth | Full band. |
VSWR | <2.0:1 |
Polarisation | Linear |
Vertical Beamwidth | 50 (± 5) |
Horizontal Beamwidth | 55 (± 5) |
Front/Back Ratio dB | 20 dB (± 3 bB) |
Power W | 10 |
Dimensions mm | 1100 x 180 x 60 |
Length mm | 1100 |
Weight (kg) | 1.85 |
Termination | 10 meters cable terminated with male SMA connector |
Specifications - DAS6938-SOC153-N
Electrical Specifications
-
Frequency Range: 698-960MHz / 1710-2700MHz / 3500-3600MHz / 5200-6000MHz
-
Max Gain: 2.0dBi / 4.0dBi / 4.0dBi / 6.0dBi
-
Input Impedance: 50 Ω
-
VSWR: <1.7:1 / <1.7:1 / <1.6:1 / <1.7:1
-
Vertical Beamwidth: 100° / 55° / 45° / 30°
-
Horizontal Beamwidth: 360°
Mechanical/Environmental Specifications
-
Construction: PC + ABS
-
Cable: 300mm
-
Input Connector: N Female
-
Weight: 0.25 kg
-
Dimensions: 89 x 184mm (H x Ø)
-
Mounting: Ceiling
Get setup in 5 easy steps
Warranty: 2 Years
Documentation
Cel-Fi GO Stationary Quick Start Guide
Cel-Fi GO Trouble Shooting Support
LPDA7030-11-10SMA Technical Data Sheet
LPDA7030-11-10SMA Installation Instructions
DAS6938-SOC150-N Technical Data Sheet
Wave App
Nextivity Wave App - iPhone, Android and PC
What's in the Box
KIT-G31-3/8/28SK-DL-1SO
1x CEL-FI-GO Optus 3/8/28S Stationary unit
1x 240VDC Power Pack
1x RFI LPDA70308-11-10SMA 11dBi Log Periodic Antenna - 10Mtr cable
1x DAS6938-SOC153-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz, N type connector
1x 9207N-10 Cable Extension 10Mts - SMA Male to N Female
The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)
Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers
