RFI - PTP DISTRIBUTIONS

SKU:KIT-G31-3/5/28S-LPDA-DAS

Cel-Fi GO G31-3/5/28S-LPDA-DAS Stationary TELSTRA - 11dBi LPDA7030 | 6dBi DAS 6938-SDP150 Internal Panel Mount Antenna Bundle

Name: Cel-Fi GO G31-3/5/28S-LPDA-DAS Stationary TELSTRA - 11dBi LPDA7030 | 6dBi DAS 6938-SDP150 Internal Panel Mount Antenna Bundle
Brand: RFI - PTP DISTRIBUTIONS
SKU: KIT-G31-3/5/28S-LPDA-DAS
Price: 1330.0 AUD
Availability: OutOfStock

$1,330.00 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Out of stock

View full details

Cel-Fi GO Stationary Telstra G31-3/5/28S-LPDA-DAS, 11dBi LPDA7030 Directional Antenna | 6dBI DAS6938 Panel Mount Donor Antenna Bundle

This product is End of Life (EOL) and no longer available

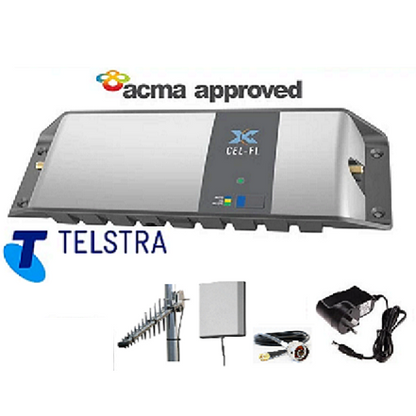

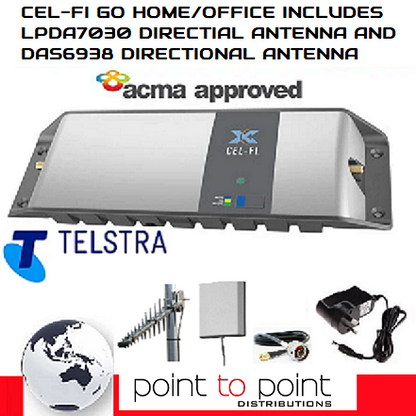

Each G31-3/5/28S-LPDA-DAS Cel-Fi GO - Stationary Telstra LPDA/DAS bundle consists of...

G31-3/5/28S Telstra 3/5/28S Cel-Fi GO Stationary Unit. Includes 240VAC Power Pack

RFI LPDA7030-11-10SMA 11dBi Log Periodic Antenna GSM 700-1000 MHz/1500-3000Mhz. inc 10M cable terminated with SMA connector

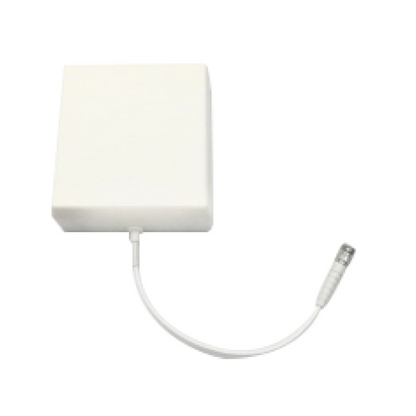

DAS6938-SDP150-N DAS LTE Directional Panel Antenna 698-3800MHz, -150dBc, N type connector, IP55

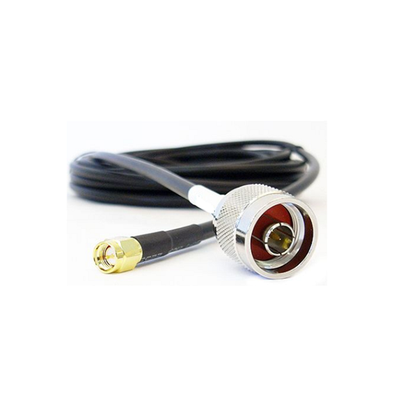

9207N-10 Cable Extension 10Mts - SMA Male to N Female

The Cel-Fi GO Stationary Smart Signal Repeater, the first carrier-class indoor/outdoor cellular coverage solution to feature industry leading 100 dB system gain and Nextivity’s unconditionally network safe guarantee. Cel-Fi GO Stationary leverages the award-winning Intelliboost signal processing to deliver the industry’s largest coverage footprint with the best voice and data wireless performance. Cel-Fi GO Stationary is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for use in commercial properties, government buildings, agricultural settings, small manufacturing operations, rural areas, businesses, and large homes.

Cel-Fi Go Features:

3G / 4G / 4GX Voice and Data for the Telstra Network
Up to 1,500 m2 of Coverage
Multi-Band Support
Indoor / Outdoor IP54 Rated.
Network Safe
Configure for Mobile or Stationary use via Wave app

Telstra Mobile Signal Availability

Check out the Telstra mobile signal coverage map

3-Band Cel-Fi GO Mobile

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating, combined with an industrial design for harsh conditions, enables the device to support weather conditions that include water, dust, and dirt.

Cel-Fi GO Stationary Telstra - 11dBi LPDA7030 | 8dBi CPL6927 Antenna Bundle - Point to Point Distributions

SUPPORTED NETWORKS

Telstra Network

SPECIFICATIONS - Cel-Fi Go Stationary

Available Frequency Bands (MHz)	Band 3/5/28
Frequency Range	1800Mhz, 850Mhz and 700Mhz
RF Gain	100dB
RF Connectors	SMA
Power Supply	GO unit + AC adapter
Ambient Temp. Range	0° to 65°C
Environment	IP54
Weight (inc. frame)	600gm
Dimensions	255mm(W) x 87mm(D) x 28mm(H)
Output Impedance	50 Ohms
Current Consumption	15W
DC Supply	9.6 to 28.8 VDC via external supply
Case	One piece extruded Aluminium
Frequency - Layered Navigation	Multiband

Specifications - LPDA7030-11-10SMA

Nominal Gain dBd	11dBi / 9dBd
Frequency MHz	700 - 1000 / 1500 - 3000
Tunable Bandwidth	Full band.
VSWR	<2.0:1
Polarisation	Linear
Vertical Beamwidth	50 (± 5)
Horizontal Beamwidth	55 (± 5)
Front/Back Ratio dB	20 dB (± 3 bB)
Power W	10
Dimensions mm	1100 x 180 x 60
Length mm	1100
Weight (kg)	1.85
Termination	10 meters cable terminated with male SMA connector

Specifications - DAS6938-SDP150-N

Frequency Range	1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
Base Gain	0 to 3 dBd
Nominal impedance	50
Power w	50
Nominal Gain Dbi	5/06/2007
Dimensions	165(L) x 155(W) x 50(H)
VSWR	<1.8:1 / <1.5:1 / <1.8:1
Termination	Single 300mm tail with N (F) connector
Construction	UV resistant White ASA, IP55
Passive IM 3rd Order (2x20W) dBc	-150
Horizontal Beamwidth	90 / 80 / 70
Brand	RFI
Weight [kg]	0.33

Get setup in 5 easy steps

Warranty: 2 Years

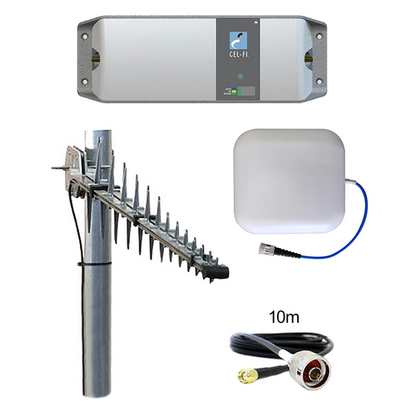

What's in the Box

1x CEL-FI-GO Telstra 3/5/28S Stationary unit
1x 240VDC Power Pack
1x RFI LPDA7030-11-10SMA 11dBi Log Periodic Antenna - 10Mtr cable
1x DAS6938-SDP150-N DAS LTE Directional Panel Antenna 698-3800MHz, -150dBc, N type connector, IP55
1x 9207N-10 Cable Extension 10Mts - SMA Male to N Female

The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)

Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers
