Cel-Fi GO Stationary Telstra - 11dBi LPDA7030 | 3dBi LTE-MAGS Antenna Bundle - Point to Point Distributions
Cel-Fi GO Stationary Telstra - 11dBi LPDA7030 | 3dBi LTE-MAGS Antenna Bundle - Point to Point Distributions
Cel-Fi GO Stationary Telstra - 11dBi LPDA7030 | 3dBi LTE-MAGS Antenna Bundle - Point to Point Distributions

Cel-Fi GO Stationary Telstra - 11dBi LPDA7030 | 3dBi LTE-MAGS Antenna Bundle



Regular price $1,210.00 Sale

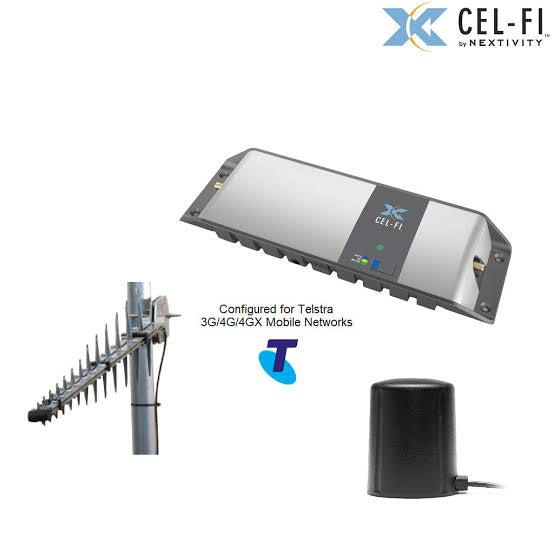

Cel-Fi GO Stationary Telstra - 11dBi LPDA7030 Yagi | 3dBi LTE-MAGS Donor Antenna Bundle

Each Cel-Fi GO - Stationary Telstra LPDA/CPL bundle consists of..

G31-3/5/28S Telstra 3/5/28S Cel-Fi GO Stationary Unit. Includes 240VAC Power Pack

RFI LPDA7030-11-10SMA Yagi 11dBi Log Periodic Antenna GSM 700-1000 MHz/1500-3000Mhz. inc 10M cable terminated with SMA connector

RFI LTE-MAGS-3M-SMA LTE SISO Magnetic base antenna (698-2700MHZ) inc 3M cable with SMA connector

The Cel-Fi GO Stationary Smart Signal Repeater, the first carrier-class indoor/outdoor cellular coverage solution to feature industry leading 100 dB system gain and Nextivity’s unconditionally network safe guarantee. Cel-Fi GO Stationary leverages the award-winning Intelliboost signal processing to deliver the industry’s largest coverage footprint with the best voice and data wireless performance. Cel-Fi GO Stationary is IP54 rated weather resistant and does not interfere with other wireless devices. This multi-band solution is ideal for use in commercial properties, government buildings, agricultural settings, small manufacturing operations, rural areas, businesses, and large homes.

Cel-Fi Go Features:

  • 3G / 4G / 4GX Voice and Data for the Telstra Network
  • Up to 1,500 m2 of Coverage
  • Multi-Band Support
  • Indoor / Outdoor IP54 Rated.
  • Network Safe
  • Configure for Mobile or Stationary use via Wave app

Telstra Mobile Signal Availability

Check out the Telstra mobile signal coverage map

3-Band Cel-Fi GO Mobile

The evolved smart signal booster that can amplify cellular signals up to 100 dB.

The Cel-Fi GO has a rugged design to withstand harsh conditions including dust and water exposure. Cel-Fi GO utilizes nanotechnology to produce a thin film coating across the entire PCB assembly. This coating, combined with an industrial design for harsh conditions, enables the device to support weather conditions that include water, dust, and dirt.

Telstra, Aldi Mobile, Boost Mobile, Woolworths Connect


SPECIFICATIONS - Cel-Fi Go Stationary

Available Frequency Bands (MHz) Band 3/5/28
Frequency Range 1800Mhz, 850Mhz and 700Mhz
RF Gain 100dB
RF Connectors SMA
Power Supply GO unit + AC adapter
Ambient Temp. Range 0° to 65°C
Environment IP54
Weight (inc. frame) 600gm
Dimensions 255mm(W) x 87mm(D) x 28mm(H)
Output Impedance 50 Ohms
Current Consumption 15W
DC Supply 9.6 to 28.8 VDC via external supply
Case One piece extruded Aluminium
Frequency - Layered Navigation Multiband


Specifications - LPDA7030-11-10SMA

Nominal Gain dBd 11dBi / 9dBd
Frequency MHz 700 - 1000 / 1500 - 3000
Tunable Bandwidth Full band.
VSWR <2.0:1
Polarisation Linear
Vertical Beamwidth 50 (± 5)
Horizontal Beamwidth 55 (± 5)
Front/Back Ratio dB 20 dB (± 3 bB)
Power W 10
Dimensions mm 1100 x 180 x 60
Length mm 1100
Weight (kg) 1.85
Termination 10 meters cable terminated with male SMA connector


Specifications - LTE-MAGS-3M-SMA

Frequency: 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 1.8dBi / 3.1dBi / 2.9dBi (peak)
Power W 25
Packaging Clear Bag
VSWR <3.0:1
Cable Type / Length 1 x 3m RG174
Termination 1 x SMA male connectors
Mounting Magnetic
Operating Temperature °C -40 to +85
Ingress Protection Rating IK69K

t setup in 5 easy steps

Warranty: 2 Years



Cel-Fi GO Data Sheet

Cel-Fi GO Stationary Quick Start Guide

LPDA7030-11-10SMA Technical Data Sheet

View LPDA7030-11-10SMA Installation Instructions

LTE-MAGS-3M-SMA Technical Data Sheet



Cel-Fi Wave App

Nextivity Wave App - iPhone, Android and PC

What's in the Box

1x CEL-FI-GO Telstra 3/5/28S Stationary unit
1x 240VDC Power Pack
1x RFI LPDA7030-11-10SMA Yagi 11dBi Log Periodic Antenna -10Mtr cable
1x RFI LTE 3dBi SISO Magnetic base antenna (698-2700MHZ) 3M cable with SMA

The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 metres of low loss RG58 cable terminated with SMA male connector. (Mounting pole not included)

Mounting bracket kit including:
• 2 x Econo-brackets
• 2 x U-bolt (SS) M6x60x90mm
• 4 x M6 nuts (SS) & washers
