The Zetifi 780mm ANCA1103AU-01 4G-5G Cellular Smart Antenna, 698 to 3800Mhz, represents a breakthrough in antenna technology with its location-aware variable gain system. This innovative antenna automatically switches between high and low gain modes to optimise performance based on real-time conditions. Utilising ZetiLink™ technology, it dynamically adjusts gain by interpreting GPS data and antenna tilt, ensuring the best possible signal reception in various environments.
Featuring a versatile design, the ANCA1103AU Smart Antenna provides both high and low gain modes within a single antenna. In low gain mode, it offers a gain of 3 dBi, while switching to high gain mode boosts performance to 6dBi. This flexibility is complemented by its broad frequency range of 698-900 MHz, 1710-2700 MHz, and 3400-3800 MHz, making it compatible with a wide array of cellular networks. The antenna’s efficient performance is further supported by its low VSWR values, ensuring minimal signal loss and high reliability.
The antenna is constructed with a fibreglass whip and a steel ferrule housing the ZetiLink™ controller board, providing durability and resilience. It features a total height of 780mm and integrates a bellied spring for stable mounting. The antenna includes a comprehensive installation kit with coaxial and power cables, a conduit cable protector, and an installation tool, making setup straightforward and secure.
Key Features:
- Location-Aware Technology
- Variable Gain Modes
- Advanced Signal Processing
- Wide Frequency Range
- Durable Construction
- Flexible Installation
Dynamic Gain Adjustment
Equipped with a sophisticated ZetiLink™ engine, the ANCA1103AU intelligently processes data from its inbuilt GPS and gyroscope sensors. This allows the antenna to adapt its gain settings according to terrain (flat, hilly, or urban) and antenna attitude. Whether you're navigating hilly landscapes or cruising on flat terrain, the antenna automatically selects the optimal gain mode for uninterrupted connectivity.
High-Performance Specifications
The ANCA1103AU offers impressive performance across a wide frequency range. It supports frequencies from 698-900 MHz, 1710-2700 MHz, and 3400-3800 MHz, with a gain of 3dBi in low mode and 6.5dBi in high mode. Its vertical beam width ranges from 50° to 20° depending on the gain mode, ensuring strong and reliable signal reception.
Sturdy Construction
Built for durability, the antenna features a fibreglass whip with a reconfigurable PCB antenna element. It includes a steel ferrule with an integrated ZetiLink™ controller and a bellied spring for added resilience. The M14 threaded stud and nut ensure a secure mounting, suitable for various installation scenarios.
Comprehensive Installation Kit
The ANCA1103AU comes with a complete installation kit, including a 4360 mm LMR195 coaxial cable, a 2500 mm 16AWG automotive power cable, and a 500 mm conduit cable protector. The kit also includes a 22 mm split socket tool for easy antenna attachment, ensuring a hassle-free setup process.
Optimised for Performance
Designed for optimal performance, the antenna's VSWR is less than 2.5:1 at 698-900 MHz and under 2:1 at other frequencies, providing efficient signal transmission. It operates on a DC voltage range of 12V to 18V, with a low power consumption of just 0.7W, making it suitable for a variety of applications.

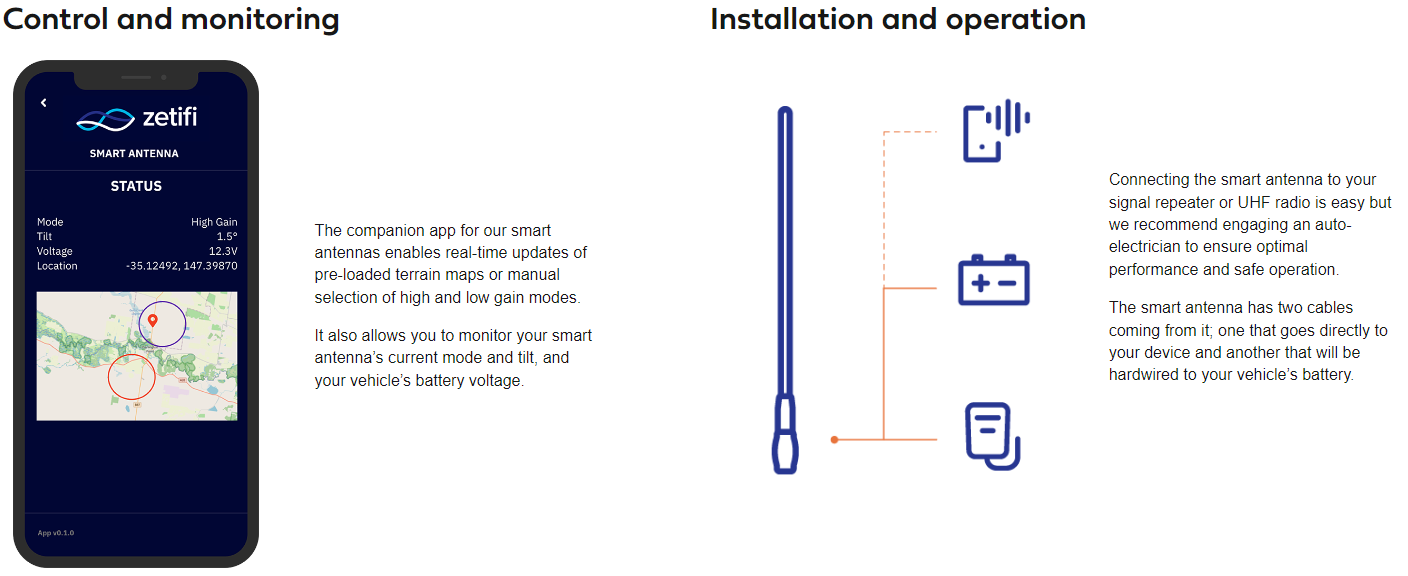

User-Friendly App Integration
Enhance your antenna's functionality with the companion app, which allows you to monitor and control the automatic switching between high and low gain modes. This feature adds an extra layer of convenience, letting you tailor the antenna's performance to your specific needs and preferences.
