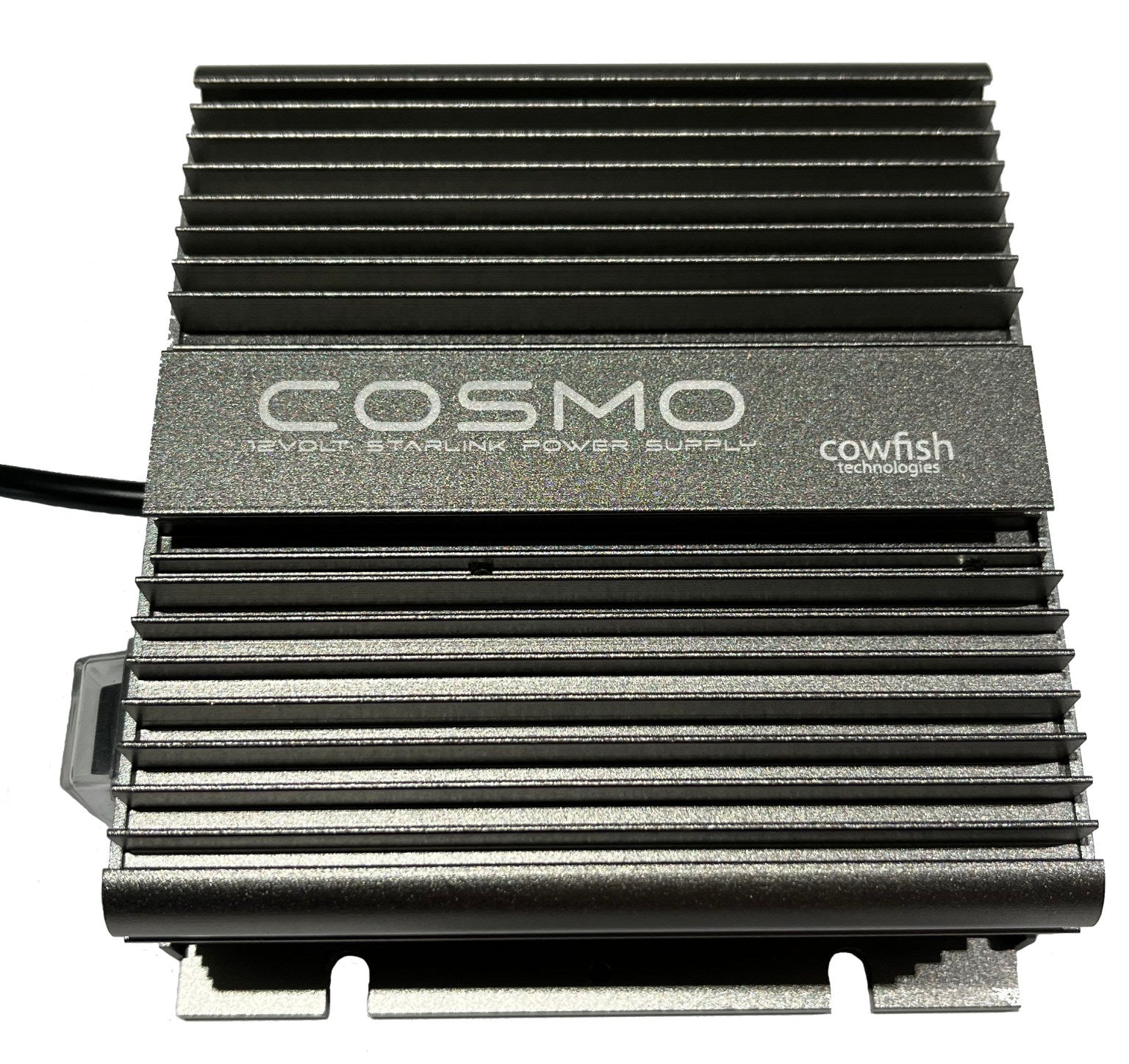

Cosmo 12V Starlink Standard Gen 3 Power Supply with Anderson Plug
The perfect solution for powering your Starlink Dish whilst on the road.
Cowfish Technologies has developed this unique solution to operate your Starlink Gen 3 Dish from your 12V battery system, ensuring reliable and consistent connectivity even in the most remote locations. This removes the requirement to run an inverter to power the Starlink system, but instead powers the system directly for your caravan battery.
This 12 volt Starlink solution does not only cater for those that do not have an inverter, they also use less power compared to a conventional 240V inverter setup powering the Starlink setup. This reduction in power usage allows you to stay off grid for longer.
Why a Cosmo Power Supply?

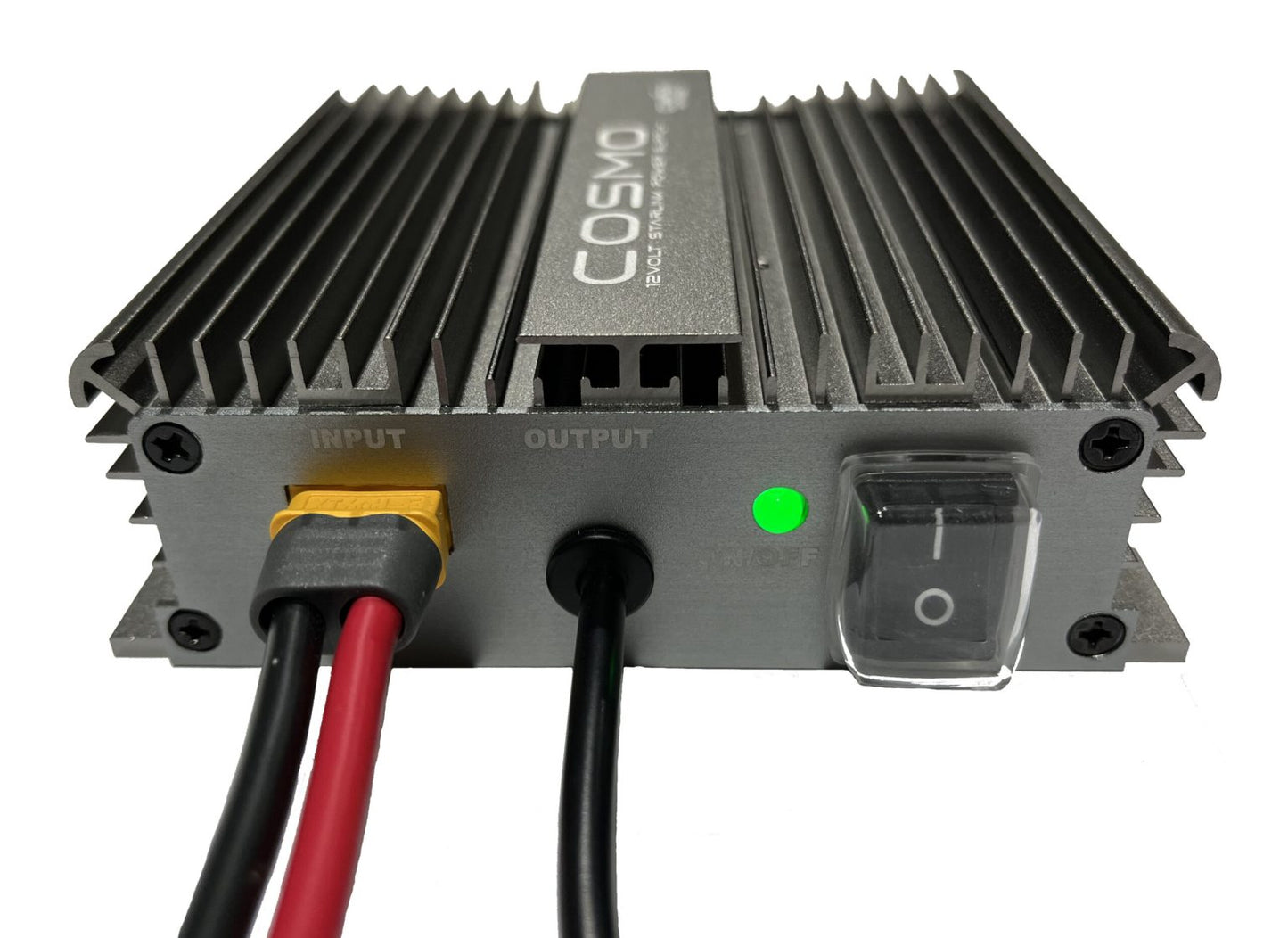

For anyone who uses the Starlink Gen 3 system and wants to run their Starlink on 12 volt power. This is a dedicated power supply unit that replaces the standard Starlink power supply. COSMO plugs directly into the Starlink router, powering the entire Starlink setup through 12 volt. The unit also has its own ON/OFF switch, allowing you to completely turn the Starlink system off when not in use, in order to save power.
Off course the full Starlink system can still be managed through the Starlink App whereby you can monitor the status of the system and change settings.
Installation

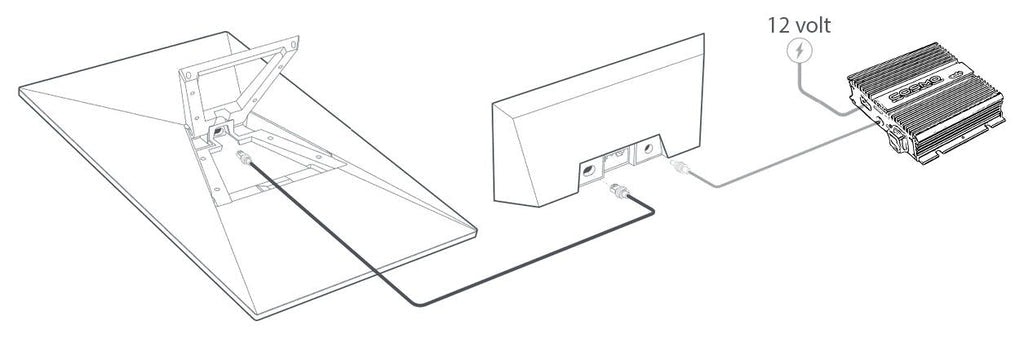

COSMO is to be installed next to the Starlink router. Mount the unit next to the router and connect the power supply cable into the power point on the Starlink router. Connect COSMO to the caravans/vehicle power supply. In order to supply adequate input power to COSMO, a minimum of 10 AWG (6.0 mm²) electrical wire is required.
Compatibility
Starlink Standard Gen 3 (not suitable for Starlink Mini)
Specifications

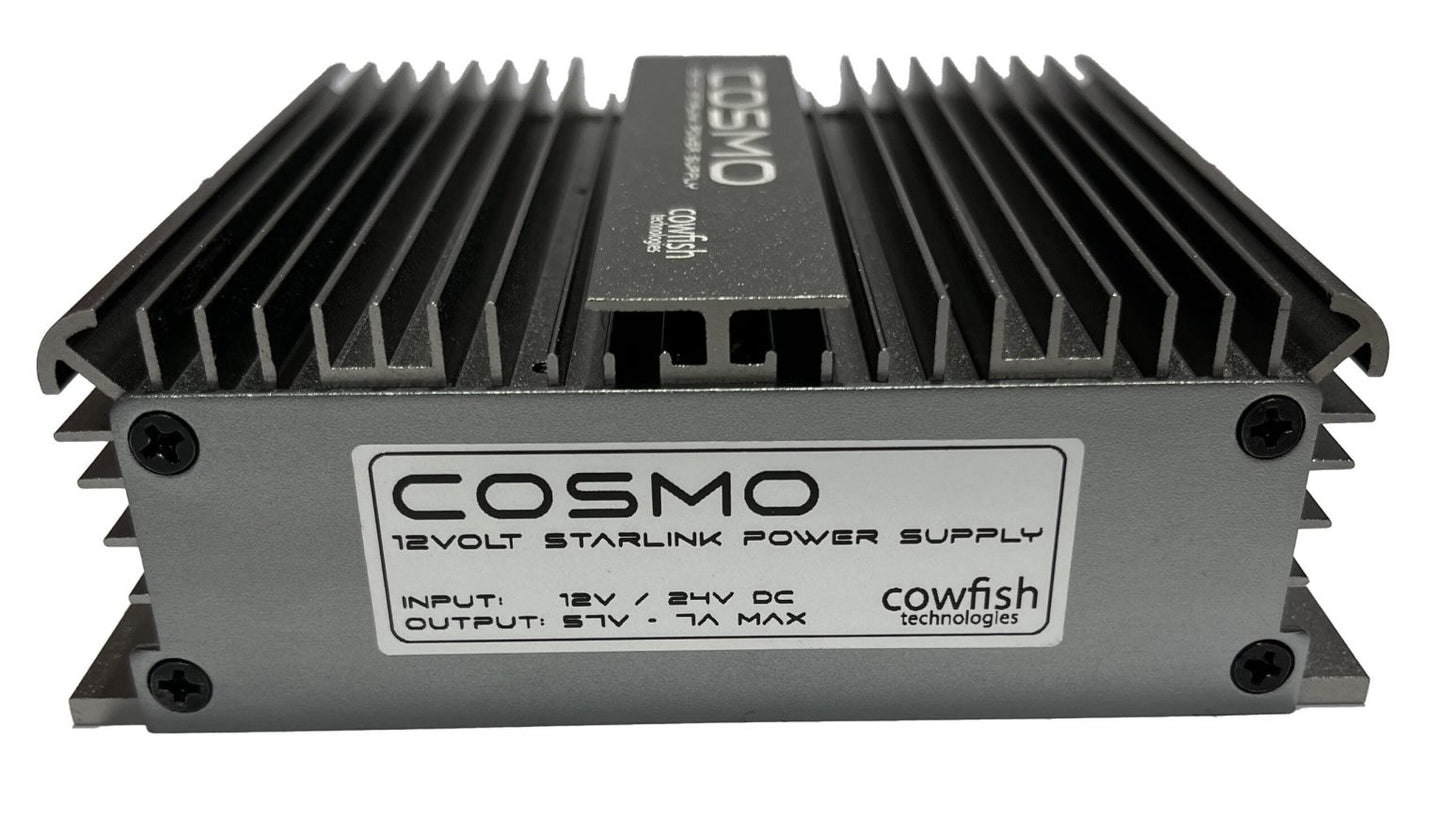

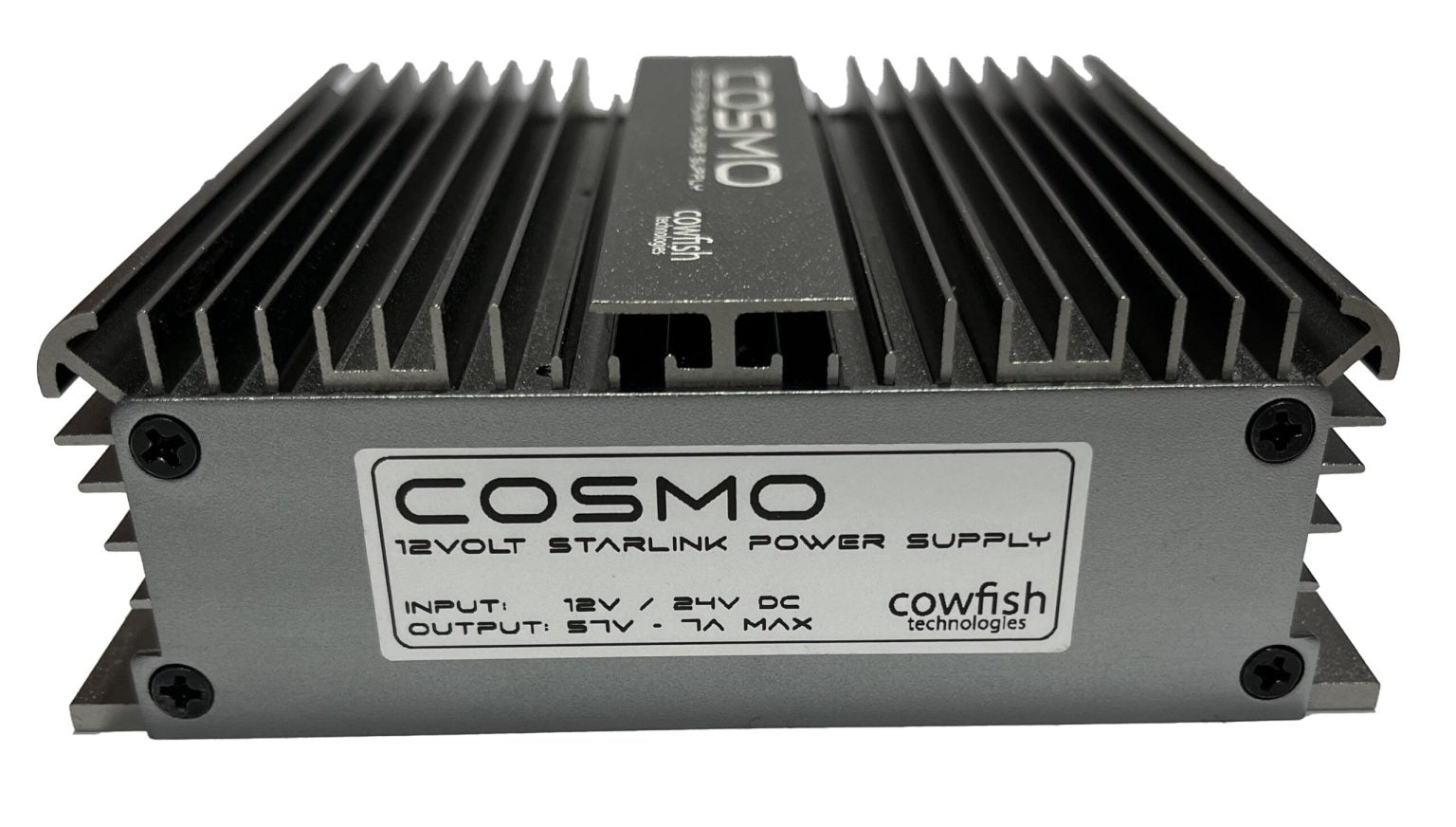

Cosmo has an input voltage of 12 / 24V and gives you a single output to connect directly to the Gen 3 Starlink router.
The unit is rated to a maximum of 35A @ 12V. It is important that a minimum of 10AWG cabling is used, fused at 35Amp, to supply power to Cosmo. This is to ensure that sufficient current is supplied and that there is no voltage drop that may cause the input voltage to fall below the minimum requirement of 12V.
- Input Voltage range: 12V – 24V
- Dims: 110mm x 120mm x 40mm
- Output Voltage: 57V
- Max output current: 7A
- Rating: 400W

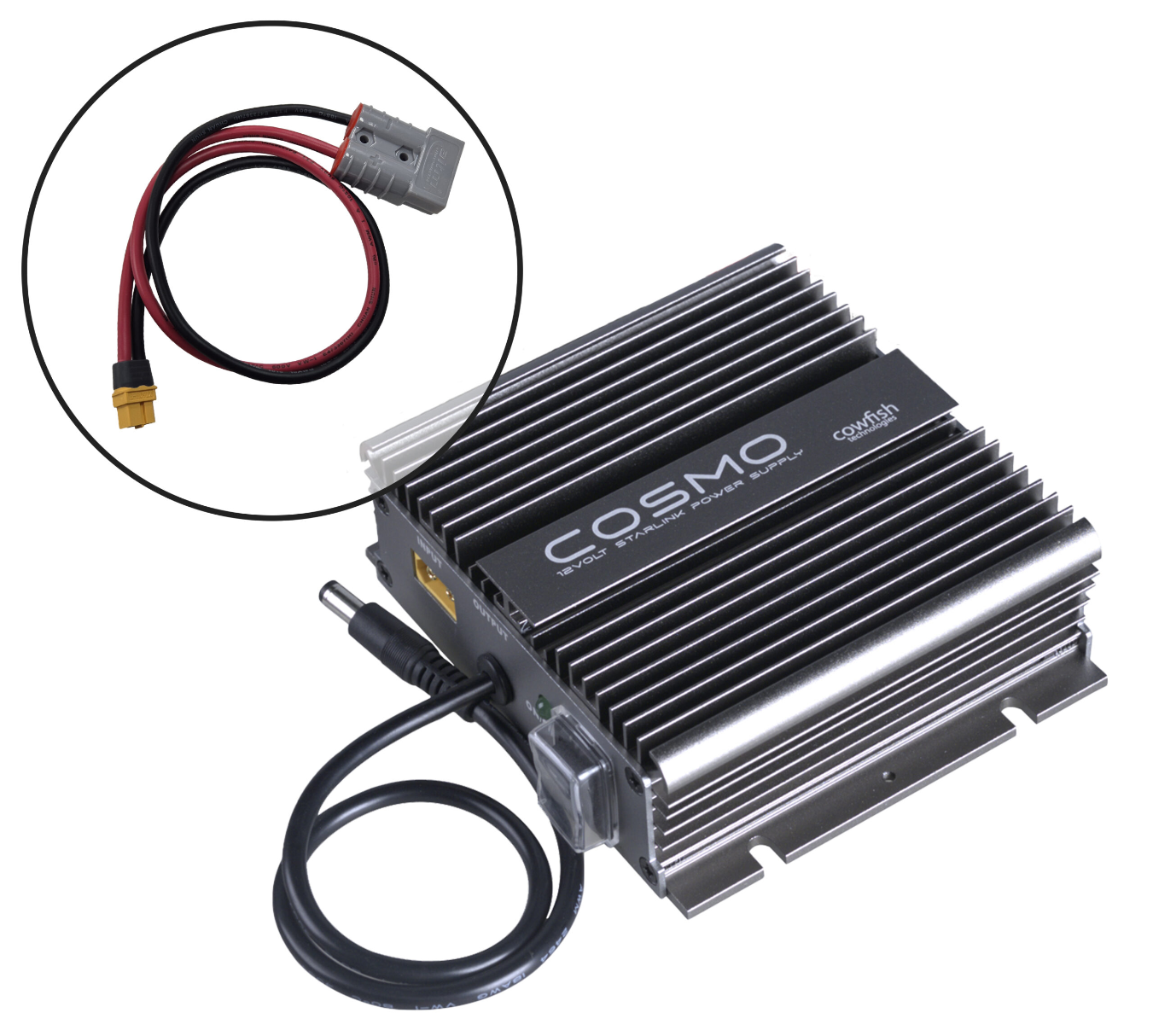

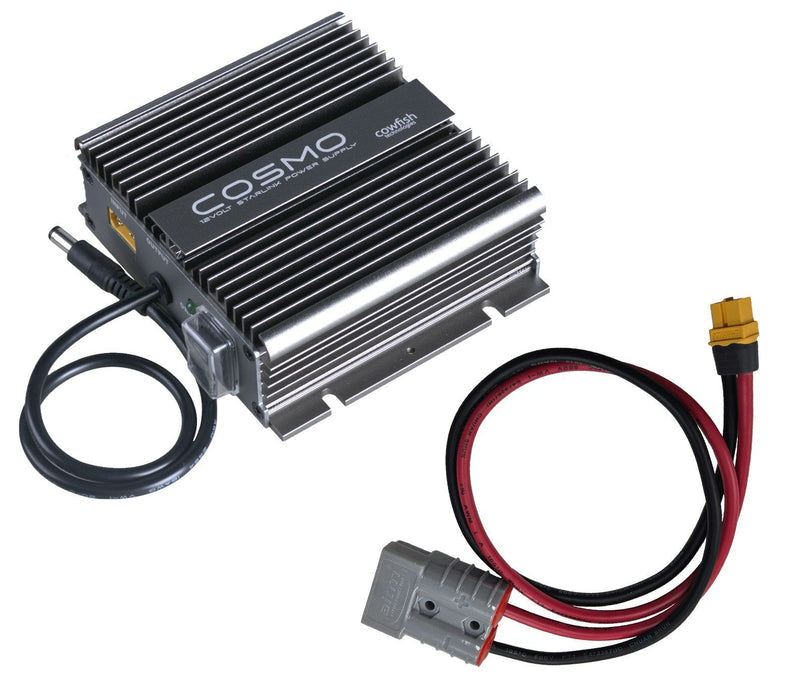

XT60 to Anderson connector
- 10AWG wire (6.0 mm²)
- 50cm long
Warranty Period: 2 Years
