LPDA7040-11-10SMA LTE 11dBi LPDA Directional Enclosed Antenna includes 10m Cable

LPDA7040-11-10SMA

RFI

Regular price $201.00 Sale

LPDA7040-11-10SMA LTE 11dBi LPDA Directional Enclosed Antenna (698-4000MHz); includes 10m cable RG58 / SMA male.

The RFI LPDA7040-11-10SMA is a high performance wide band log periodic antenna designed to operate in the LTE bands from 698 to 4000 MHz. This wideband design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired. The brass & aluminium internal components of this antenna are enclosed within a UV-stable white ABS radome for all-weather operation and is supplied with a tilt and swivel mast mount kit.

LPDA7040-11-10SMA:

  • Broad operating frequency range
  • Compact design
  • IP65
  • Increase system transmission reliability
  • LTE fringe areas (close to an LTE area, but just out of reach)
  • Network operator flexibility - as the antennas is wideband, a new antenna is not needed per network operator
  • Works on most networks
  • 10mtr RG58 cable with SMA (m) connection included



Cable And Connector 0.3 m RG141 cable terminated with N type female connector
Connector N(F)
Frequency Range 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
Power w 50
Nominal Gain Dbi 9.5 / 11.0 / 11.5
Dimensions 440 x 205 x 60mm
Polarisation Linear
VSWR <2.0:1
Mounting area Up to 52mm diameter pole
Tuned bandwidth Full
Passive IM 3rd Order (2x20W) dBc -153
Horizontal Beamwidth 90 / 75 / 54
Front Back ratio dB 15
Frequency MHz 698-960 / 1710-2700 / 3300-4000
Brand RFI
Weight [kg] 1



Documentation

View LPDA7040-11-0.3NF  data sheet







What’s in the box

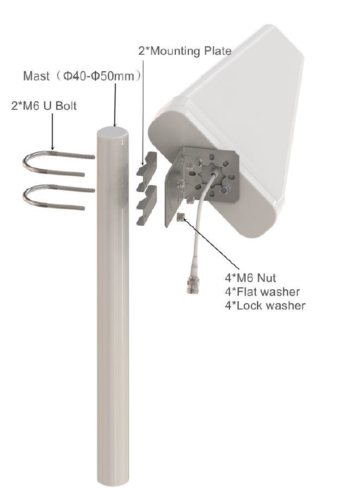

The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 52mm. (Mounting pole not included)


1 x LPDA with 0.3 metres cable terminated with N Type female connector
1 x Antenna L bracket
2 x Mounting plates
2 x M6 U-bolts (including: 4 x M6 Nuts, 4 x Flat washers & 4 x Spring washers)

1 x 10Mtrs RG58 Cable with SMA male connector
