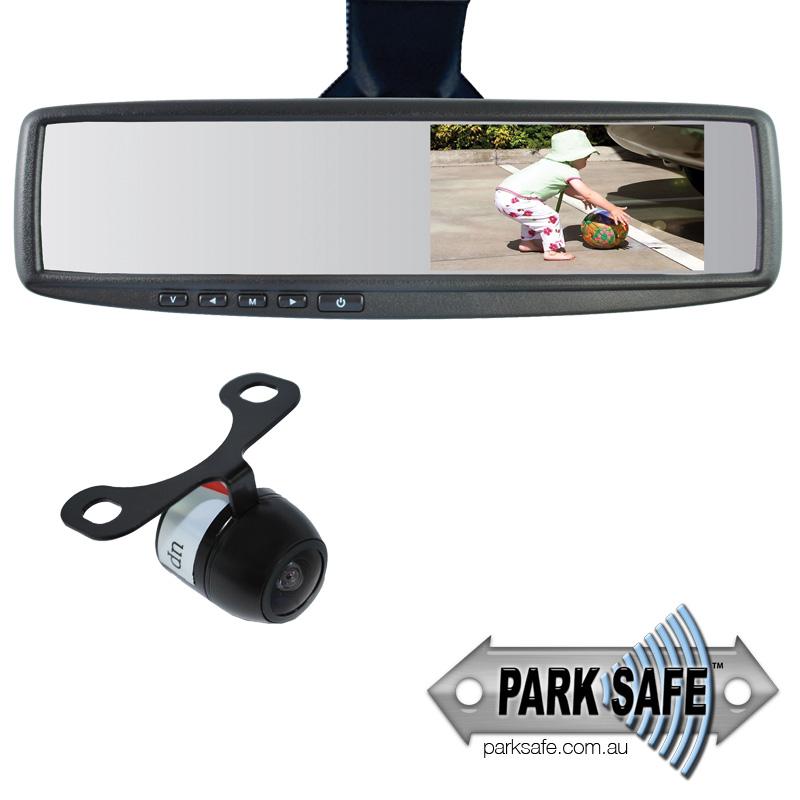

Parksafe CD-CM057-V2 4.3″ Replacement Mirror Monitor & Camera Combo

Parksafe CD-CM057-V2 4.3″ Replacement Mirror Monitor & Camera Combo

A complete reversing camera package deal. Suitable for most vehicles that use a No.1 windscreen mirror mount. (Other arms available) Easy installation with a high end result. Product includes mirror monitor, no.1 windscreen mount, monitor power harness, 6 metre AV lead, Butterfly camera, camera power harness.

For easy installation ask about our Fuse power take offs.

MIRROR-MONITOR

• High resolution digital LCD panel
• NTSC/PAL auto switching
• Special anti-glare mirror for perfect visibility
• Smart & easy push button controls
• 12 Volt low current consumption
• Dual video inputs
• Quality No. 1 metal arm supplied (suits most vehicles) other arms available.

CAMERA

• Mini CCD butterfly camera
• 170 Degree view angle
• NTSC
• 6 metre video lead
• 0.1 LUX  (Great low light sensitivity)
• Mirror image reverse via blue wire
• 9.6 -12 Volt Operation
• Water resistant
• Switchable guidelines on/off via white wire
• Size: 20(l) x 17(W) x 17mm(H)

Warranty: 3 Year Monitor, 1 Year Camera

Documentation

To view user manual click here

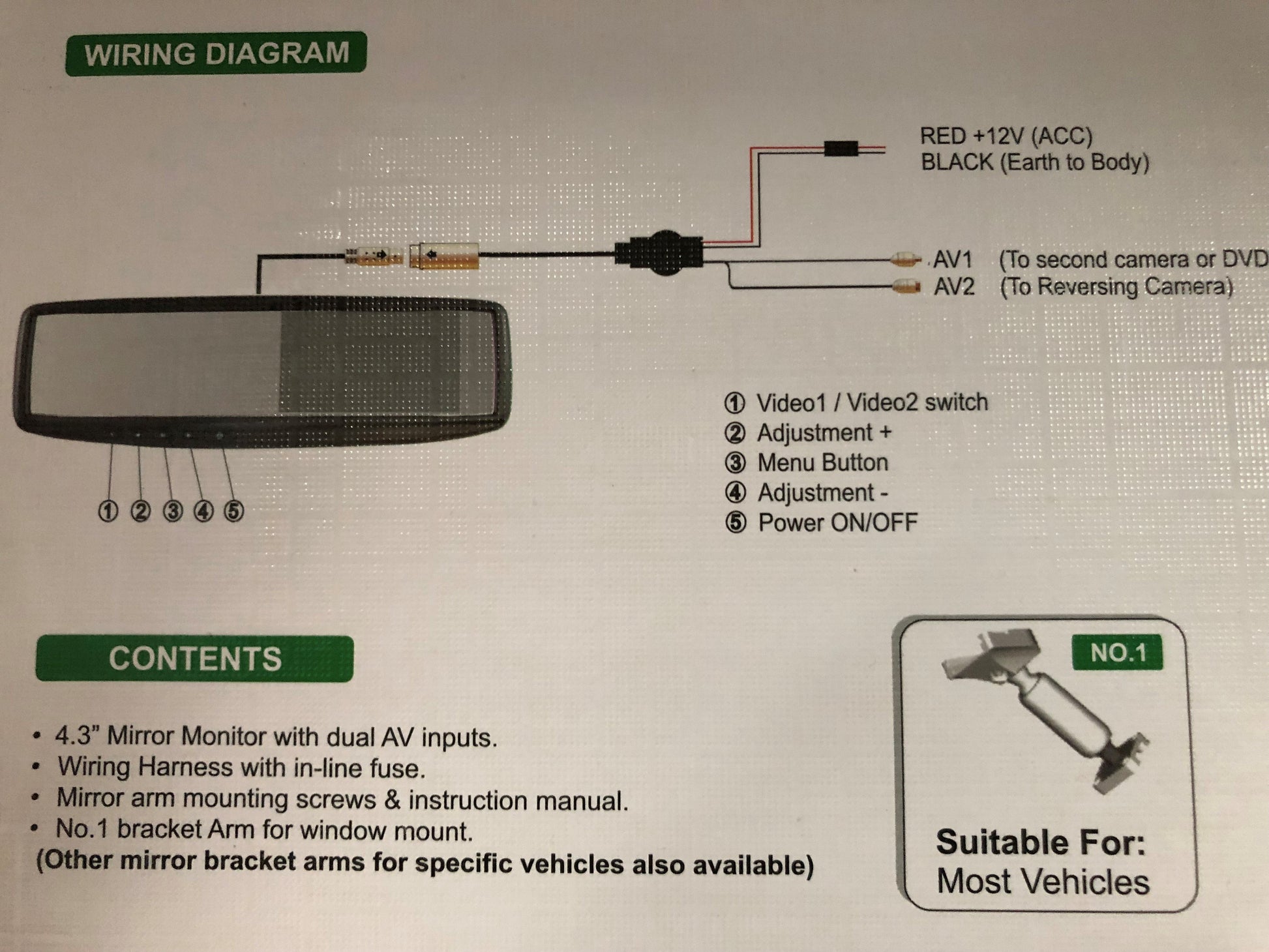

To view wiring diagram click here
