Parksafe CD-CM079 - 5″ Clip-On Mirror Monitor & Camera Combo

Parksafe CD-CM079 - 5″ Clip-On Mirror Monitor & Camera Combo

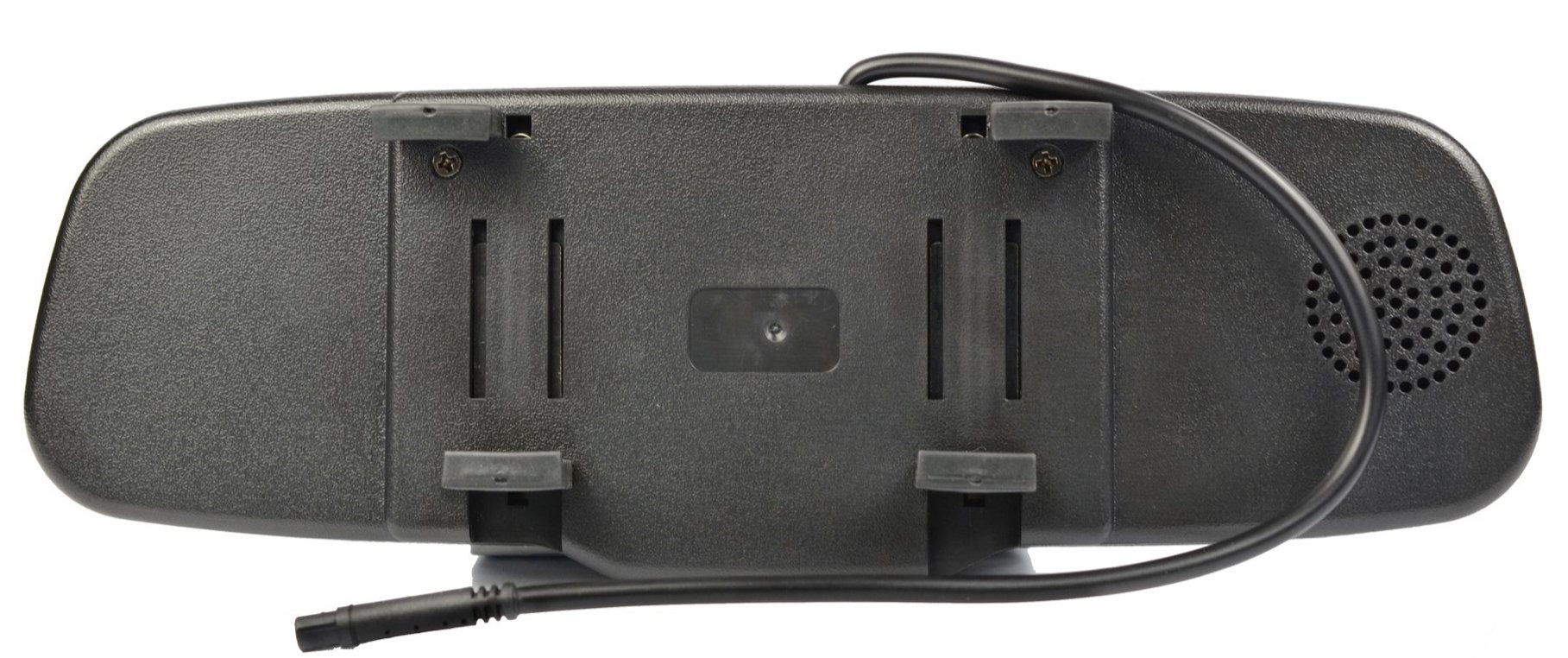

Parksafe’s clip-on mirror monitor system adopts the latest digital LCD properties and will suit all vehicle’s which have a rear vision mirror, reduce dashboard clutter by using the vehicles existing mount points and reducing the impact on the vehicles user experience. The clip-on version is generally used for vehicles with a roof mounted rear vision mirror.

Benefits:

A complete reversing camera package deal. Suitable for most vehicles. Easy installation with a high end result.

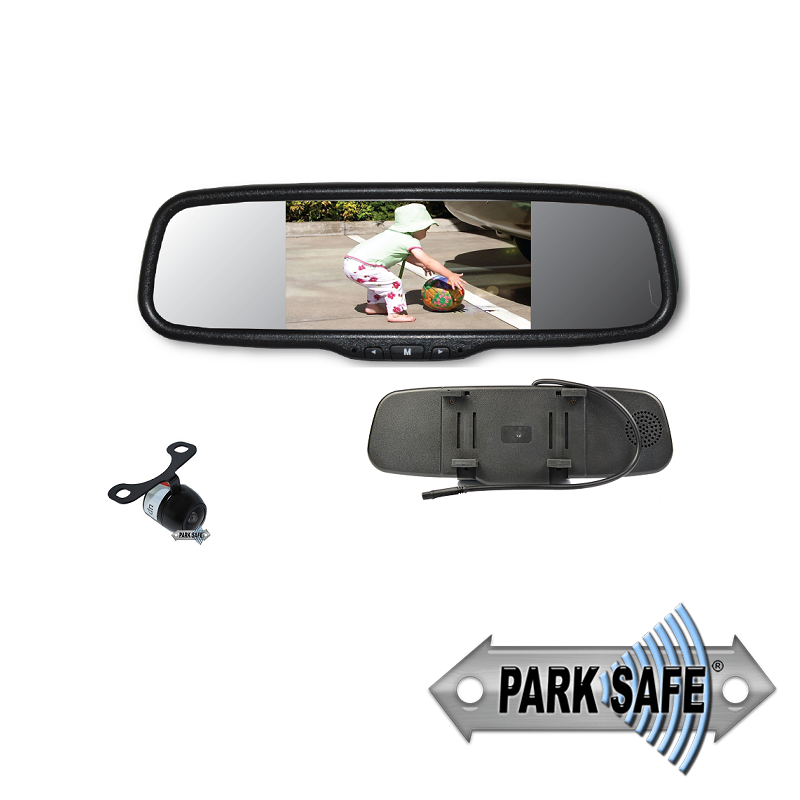

Product includes clip-on mirror monitor, monitor power harness, 6 metre AV lead, Butterfly camera, camera power harness.

For easy installation ask about our Fuse power take offs.

 Monitor:

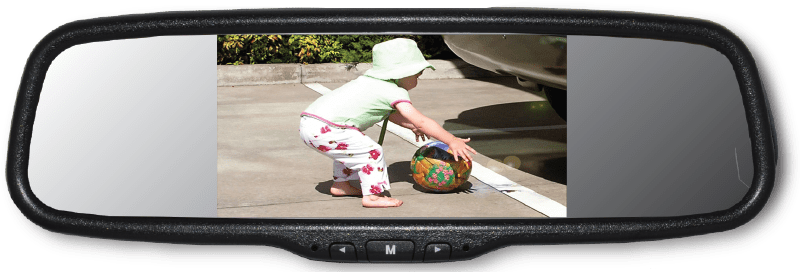

• 5″ Colour High Resolution digital LCD panel (imbedded) Mirror (Clip-On)
• 12 Volt
• Dual (2) AV Inputs
• Push Button Control
• PAL/NTSC Auto Switching
• Designed To Replace Factory Mirror
• Automatic activation Via AV Signal

CAMERA

• CCD butterfly camera
• 170 Degree view angle
• NTSC
• 0.1 LUX  (Great low light sensitivity)
• 6 metre video Lead
• Mirror image reverse via blue wire
• 9.6 -12 Volt Operation
• Water resistant
• Switchable guidelines on/off via white wire
• Size: 20(L) x 17(W) x 17mm(H)

Warranty: 3 Year Monitor, 1 Year Camera

Documentation

To view wiring diagram click here

To view user manual click here

Availability
