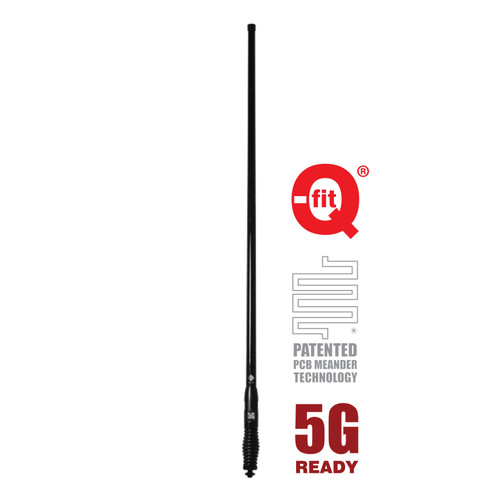

RFI CDQ8199-B 5G Q-Fit LTE 8.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 2080mmCDQ8199-B
RFI CDQ8199-B Q-FIT 5G LTE 8.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 2080mm
The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).
It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.
This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.
|Packaging||Retail Hang Sell Bag|
|Cable And Connector||5m RG58 (9006) low loss cable terminated with SMA male connector|
|Frequency Range||1710 -2170, 2300 - 2700, 3400 - 3800, 698-960|
Nominal Gain DBi
|8.5 / 4.5 / 5.5|
|Mounting area||13-16mm diameter hole|
|Frequency MHz||698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz|
CHECK OUT THE RFI PRODUCT DOCUMENTATION
View the CDQ8100 Series Technical Data Sheet
MOUNTING BRACKET OPTIONS
