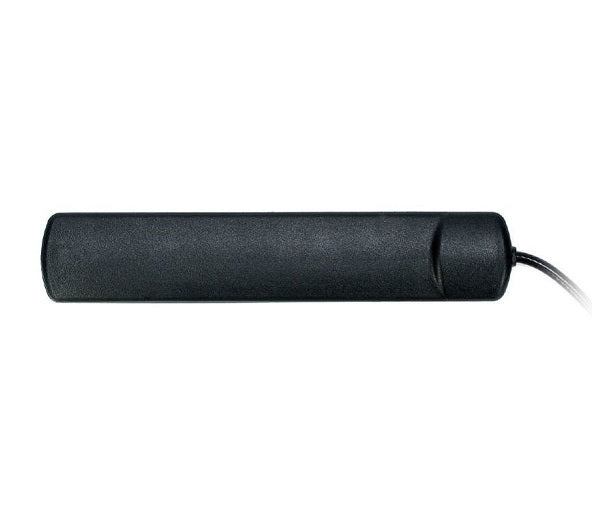

RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)

RFI T5-4M-SMA 5G LTE Internal Glass Mount Antenna (617-5925 MHz); 4m SMA(M)

RFI brings 5GNR technology to our T5 Series by offering our new ground plane independent adhesive mount antenna. This solution combines wideband multi-application device functionality that caters to 5GNR, 4G LTE, 3G, 2G and CDMA technologies operating within 617 MHz to 5925 MHz frequencies. The T5 Series is a low-cost solution with easy installation through the simple peel-and-stick application making this antenna ideal for commercial, industrial and consumer industries.

The T5 Series brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies. This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibility.  In addition, this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). The T5 Series offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.

Network Compatibility	Yes/No
LTE 700MHz
LTE 800MHz
3G 850MHz
LTE 900MHz
LTE 1700MHz
LTE 1800MHz
LTE 1900MHz
LTE 2100MHz
LTE 2300MHz
LTE 2600MHz
LTE 2700MHz
5G 3500MHz

Key Features:
•Wideband frequency range; 617 to 5925 MHz
•Adhesive mount
•Ground Plane Independent
•Compact size: 116 x 22 x 6.7 mm

Documentation

T5 Specifications

Availability
