RFI CD29-148174-00 Broadband VHF Ground Independ Mopole 148-174 MHz-Whip Only
RFI CD29-148174-00 Broadband VHF Ground Independ Mopole 148-174 MHz-Whip Only
Couldn't load pickup availability

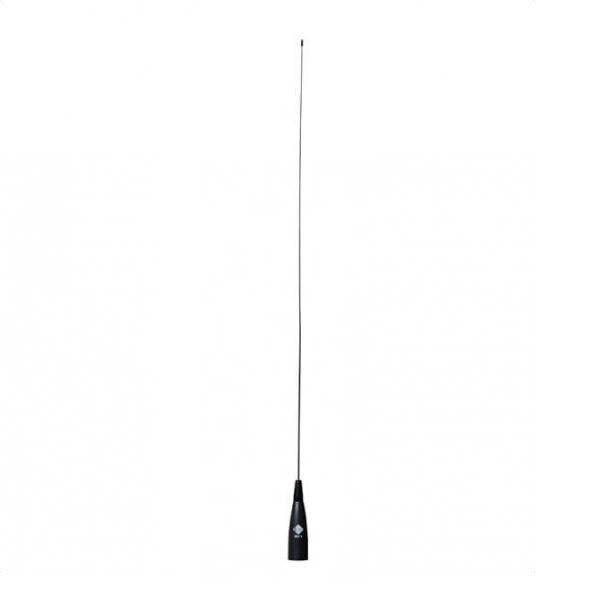

RFI Broadband VHF Ground Independent Mopole 148-174 MHz - Whip Only
2-4 Day Lead Time
The CD29 Series antennas provide greater bandwidth coverage without sacrificing antenna performance. Their no tune design eliminates the need to tune in the field, hence reducing installation costs and complexity while improving overall coverage of the desired frequencies. The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a tapered stainless steel highly flexible whip. The CD29 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrade.
CD29-148174-00 Features:
- Ground plane independent design allows alternative mounting locations
- Ultra broadband coverage means no tuning in the field
- Highly flexible tapered stainless steel whip
- Base is virtually indestructible
DESIGNED & MANUFACTURED IN AUSTRALIA.
| Band | 148-174 MHz |
| Tunable Bandwidth | Full |
| Nominal Gain dBq | 3 |
| Power W | 25 |
| Cable and Connector | Not included |
| Whip Material | Flexible tapered stainless steel whip |
| Suggested Installation | Bracket |
| Whip Length mm | 829 |
| VSWR | <1.8:1 |
Documentation
CD29-148174-00 Technical Data Sheet
