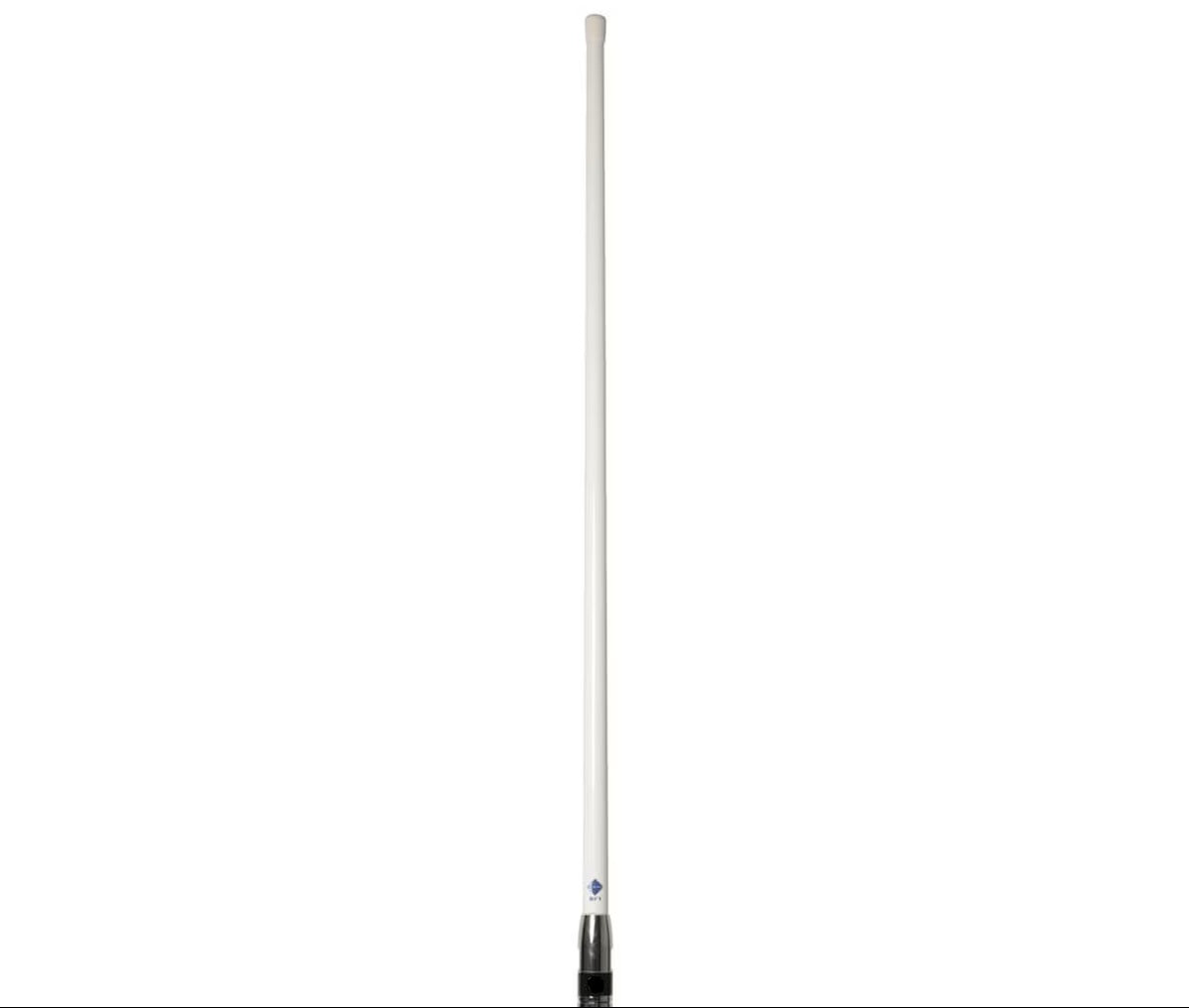

RFI VHF 3dBi CDQ Marine Antenna (156-163 MHz); Whip Only - White
The CDQ29 Series is our first marine VHF collinear antenna covering 153-163 MHz. The antenna is an elevated broad band centre fed dipole making the constructed using highly repeatable via co-planar PCB technology.
The PCB is housed in a robust fiberglass radome using our proven Q-Fit® interface allowing for easy fitment on various marine CDQ bases. It is DC grounded through integral shunt matching for protection from lightning and static build-up.
Key Features:
• Q-Fit® Mounting System
• PCB Radiator
• Various Mounting Accessories
Specifications:
| Height [mm] | 1200mm |
| Brand | RFI |
| Frequency MHz | 156-163 MHz |
| Mounting Area | Whip Only |
| Radome Diameter Mm | 22 |
| VSWR | <1.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 3 |
| Power [W] | 25 |
| Operational Temperature Range | -40 to +85 |
| Band | VHF Marine Band |
| Colour | White |
| Antenna Type | 5/16" 26TPI Thread, Collinears, Ground Independent |
| Antenna Application | Terminal Antenna |
| Antenna Configuration | SISO |
