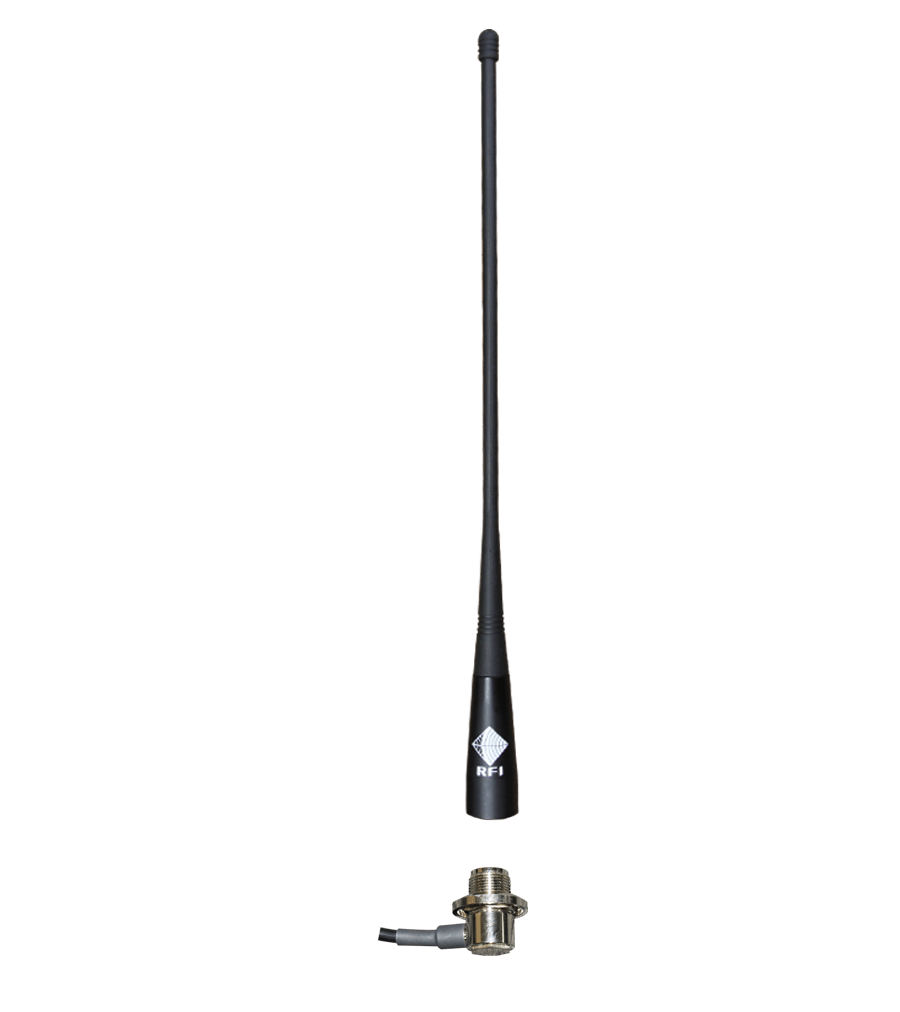

RFI CD34-71-53 UHF CB (477 MHz) Mopole™ Antenna - MBC Mount (4 dBi)
CD34-71-53RFI
Regular price
$89.00
Sale
RFi CD34-71-53 UHF CB (477 MHz) Mopole™ Antenna - MBC Mount (4 dBi)
The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.
The antenna is available in a stud mounted version or MBC base with removable whip. Both are supplied with 5 metres RG58 C/U cable & factory terminated with a FME female connector for ease of installation. Also included is a FME male to UHF male adaptor for connection to all UHF CB radios.
Features:
• Ground plane independent design allows installation in almost any location
• Available in stud or MBC mount
• Robust UV stable base & flexible whip
Specifications:
The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application.
The antenna is available in a stud mounted version or MBC base with removable whip. Both are supplied with 5 metres RG58 C/U cable & factory terminated with a FME female connector for ease of installation. Also included is a FME male to UHF male adaptor for connection to all UHF CB radios.
Features:
• Ground plane independent design allows installation in almost any location
• Available in stud or MBC mount
• Robust UV stable base & flexible whip
Specifications:
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 4 |
| Tuning | Supplied pre-tuned |
| Power W | 50 |
| Cable and Connector | 5.0m RG58 low loss cable fitted with FME female connector plus supplied with an FME male to UHF male adaptor. |
| Whip Material | Stainless Steel braid over moulded with UV resistant TPU |
| Suggested Installation | Bracket |
| Whip Length mm | 330 |
| VSWR | <1.5:1 |
| Mounting | 13mm threaded stud & stepped nut |
