RFI
SKU:CD34-71-73

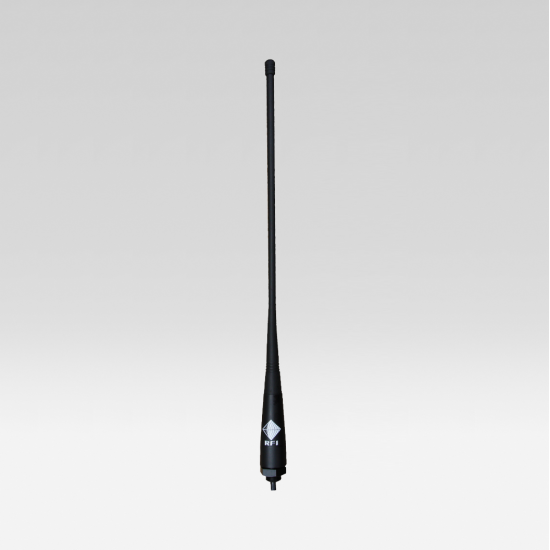

RFI CD34-71-73 UHF CB (477 MHz) Mopole™ Antenna - Stud Mount 5.0 Mtr cable with FME connection (4 dBi)
RFI CD34-71-73 UHF CB (477 MHz) Mopole™ Antenna - Stud Mount 5.0 Mtr cable with FME connection (4 dBi)
Couldn't load pickup availability
RFI CD34-71-73 UHF CB (477 MHz) Mopole™ Antenna - Stud Mount 5.0 Mtr cable with FME connection (4 dBi)
The CD34 Series Mopole antenna is specifically designed to be used in a variety of mounting positions such as a vehicle mirror, gutter or roof rack. Mounting in such positions, the CD34 is the ideal substitute for an antenna which would normally need to be mounted in the centre of a metal roof to obtain maximum efficiency.
The CD34 antenna is an end-fed dipole (1/2 wave) with a tuned circuit incorporated in the base and a fully moulded radiating element. The end result is a tremendously rugged antenna suited for almost any application. The antenna is available in a stud mounted version or MBC base with removable whip. Both are supplied with 5 metres RG58 C/U cable & factory terminated with a FME female connector for ease of installation. Also included is a FME male to UHF male adaptor for connection to all UHF CB radios.
Features:
• Ground plane independent design allows installation in almost any location
• Available in stud or MBC mount
• Robust UV stable base & flexible whip
Specifications:
| Whip Material | Stainless Steel braid over moulded with UV resistant TPU |
| Whip Length mm | 330 |
| Cable And Connector | 5.0m RG58 low loss cable fitted with FME female connector plus supplied with an FME male to UHF male adaptor. |
| Tuning | Supplied pre-tuned |
| Band | 477MHz |
| Frequency Range | 476 - 477 |
| Power w | 50 |
| Nominal Gain Dbi | 4 |
| VSWR | <1.5:1 |
| Tuned bandwidth | Full. No tuning required |
| Frequency MHz | 476 - 477 |
| Brand | RFI |
Documentation
CD34-71-53 Technical Data Sheet
