RFI CD5000-W UHF CB Mobile 477mHZ Antenna White - 907mm

RFI CD5000-W UHF CB Mobile 477mHZ Antenna White - 907mm

Regular price $173.00 AUD
Regular price Sale price $173.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock, ready to ship
View full details

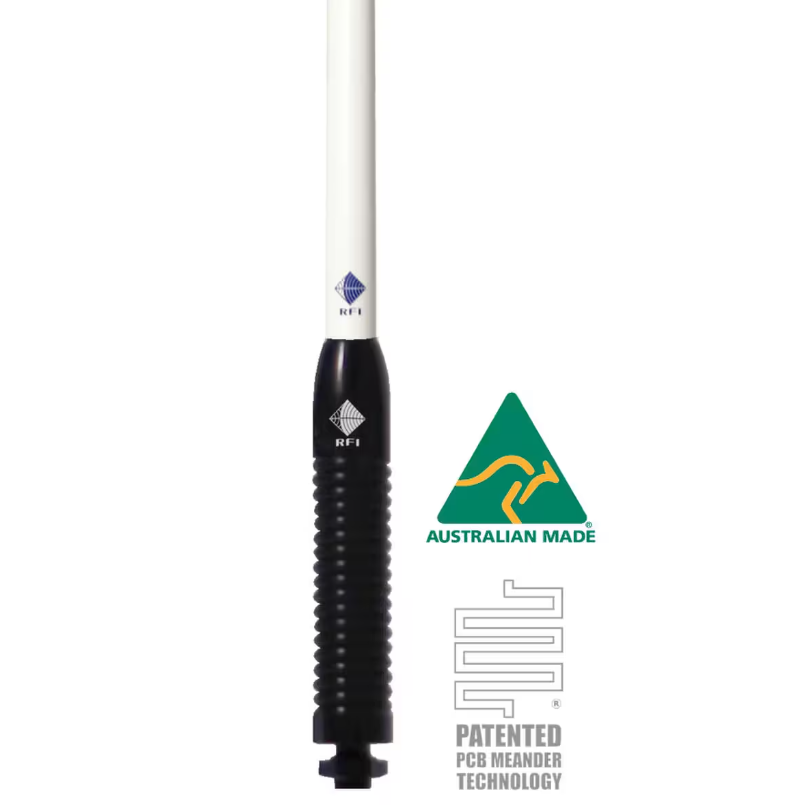

RFI CD5000-W UHF CB Mobile 477mHZ Broomstick Antenna White - 907mm

This antenna is extremely robust in design with the patented PCB designed radiating element housed in a white fibreglass radome fitted to an integral heavy duty electro-polished stainless steel spring.

With a 13mm stud mount and ground plane independent design, this antenna may be installed onto a number of mounting brackets such as mirror, bull bar, gutter or fender mounts and are ideal for installations in commercial vehicles, four wheel drives and trucks. They can even be used as a base station antenna due to their ground plane independent design.

Features CD5000-W:


• 5 dB Gain ideal for fringe areas and country applications
• Robust design for heavy duty applications-
• Available with GPS sub-assembly on request
• Available in black - CD5000-B
• Patented PCB based collinear design offering the ultimate in pattern and gain stability


Specifications:

Band 477MHz
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 5
Tuning Supplied pre-tuned
Power W 25
Cable and Connector 5.0m 9006 supplied with FME-101 connector terminated and UHF adapter supplied
Whip Material PCB radiating element housed in tapered high impact fibreglass - White
Suggested Installation Bullbar or guarg
Whip Length mm 907mm
VSWR <1.5:1
Mounting Threaded Stud



Documentation

CD5000 Technical Data Sheet
