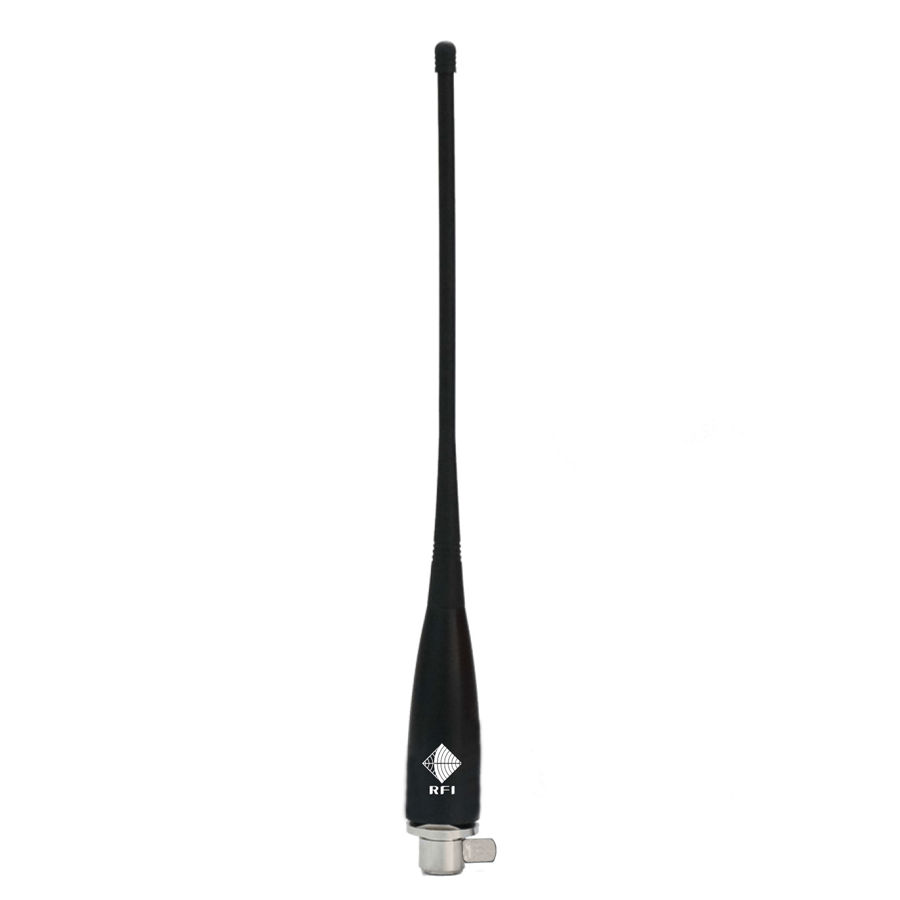

RFI CD61-4552-50 Broadband UHF Ground Independent Mopole 450-520 MHz - MBC BaseCD61-4552-50
RFI CD61-4552-50 Broadband UHF Ground Independent Mopole 450-520 MHz - MBC Base
The CD61 Series broadband antenna supports multi band radio technology, providing full interoperability among emergency services and commercial radios, regardless of UHF segment used. They provide outstanding coverage of UHF frequencies, in a ready-to-install, no tune design.
The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a fully moulded highly flexible whip. The CD61 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrades on public safety vehicles.
- Ground plane independent design allows alternative mounting locations
- Ultra broadband coverage means no tuning in the field
- Highly flexible over-moulded whip
- Base is virtually indestructible
DESIGNED & MANUFACTURED IN AUSTRALIA.
Band 450-520MHz Tunable Bandwidth Full Nominal Gain dBq 4 Power W 25 Cable and Connector No included Whip Material Highly flexible over-moulded whip Suggested Installation Bracket Whip Length mm 273 VSWR <1.5:1 Mounting MBC (PL259) base
