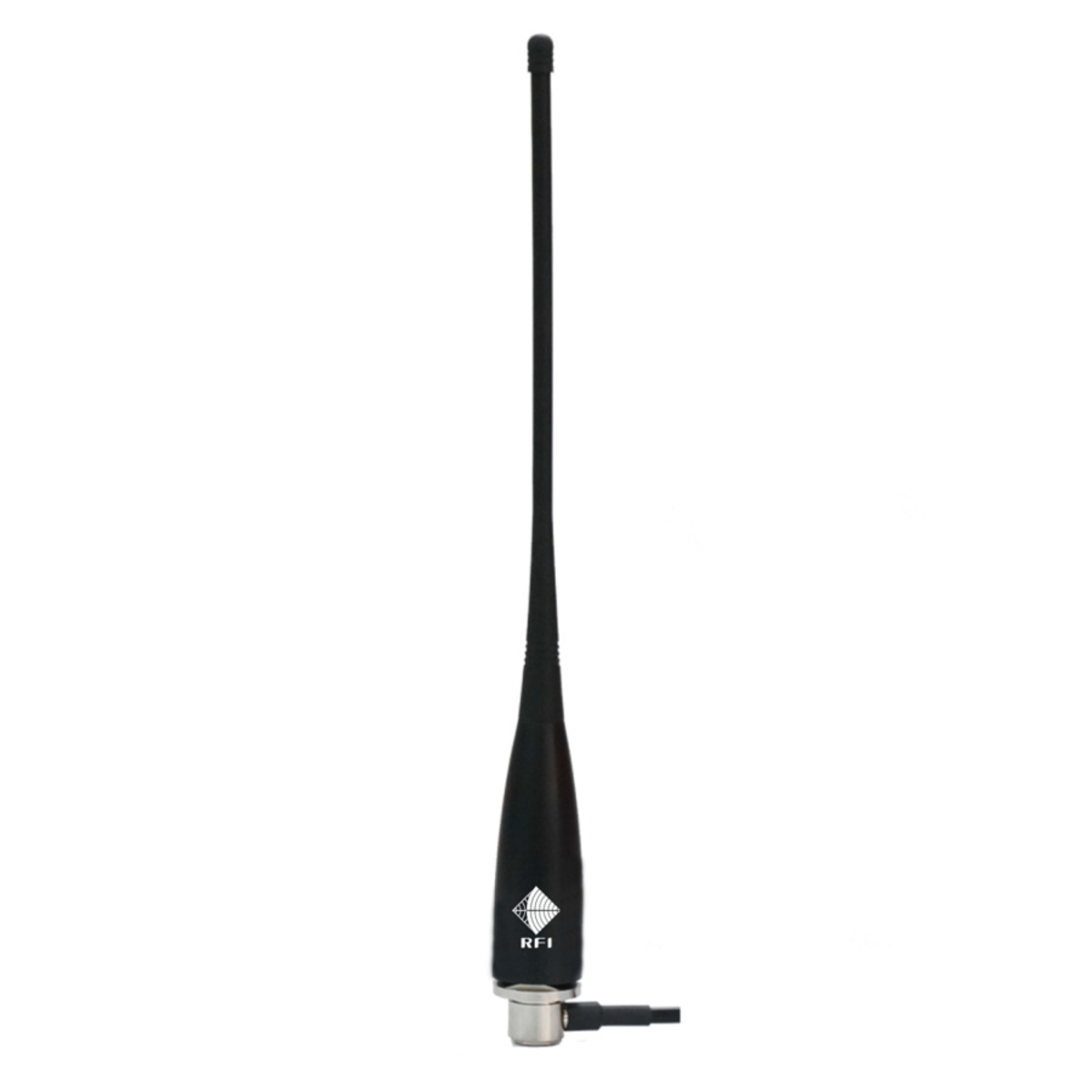

RFI CD61-4552-53 UHF 4dB Broadband Antenna (450-520 MHz); MBC Base 5m No Connector
RFI CD61-4552-53 UHF 4dB Broadband Antenna (450-520 MHz); MBC Base 5m No Connector
Couldn't load pickup availability
RFI CD61-4552-53 UHF 4dB Broadband Antenna (450-520 MHz); MBC Base 5m No Connector
Temporarily out of stock
The CD61 Series broadband antenna supports multi band radio technology, providing full interoperability among emergency services and commercial radios, regardless of UHF segment used. They provide outstanding coverage of UHF frequencies, in a ready-to-install, no tune design.
The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a fully moulded highly flexible whip. The CD61 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrades on public safety vehicles.
Features:
- Ground plane independent design allows alternative mounting locations
- Ultra broadband coverage means no tuning in the field
- Highly flexible over-moulded whip
- Base is virtually indestructible
Specifications:
| Brand | RFI |
| Tuned Bandwidth | Full |
| VSWR | <1.5:1 |
| Polarisation | Vertical |
| Power [W] | 25 |
| Frequency | 450-520 MHz |
| Frequency Range [MHz] | 450 - 520 |
| Cable And Connector | 5M RG58C/U cable / no connector |
| Whip Length mm | 273 |
| Whip Material | Highly flexible over-moulded whip |
| Nominal Gain dBq | 4 |
| Antenna Type | Omni |
| Antenna Application | Vehicle Antenna |
| Frequency Band | UHF 380-520 MHz |
| Antenna Configuration | SISO |
Documentation
CD61-4552-53 Technical Data Sheet
