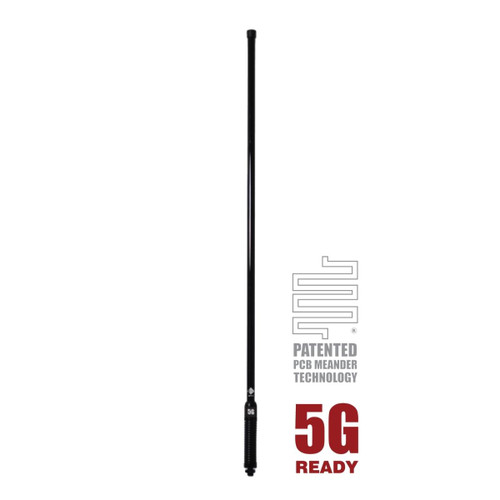

RFI CD8194-B 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 675mm RFI
RFI CD8194-B 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 675mm RFI

RFI CD8194-B 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 675mm

CD8194-B

RFI

Regular price $184.00 Sale

RFI CD8194-B 5G LTE 5.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 675mm



The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.


KEY FEATURES:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.

Colour Black
Packaging Retail Hang Sell Bag
Whip Material Fibreglass
Cable And Connector 5m of 9006 low loss cable with SMA(M)
Frequency Range 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 5.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm Diameter Hole
Tuned bandwidth Full. No tuning required
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800
Length [mm] 675mm
Brand RFI



Documentation

CHECK OUT THE RFI PRODUCT DOCUMENTATION

View the CD8100 Series Technical Data Sheet

View 8100 Series Specifications Matrix



Related Products

Also available as CDQ8195-B (removable whip)
