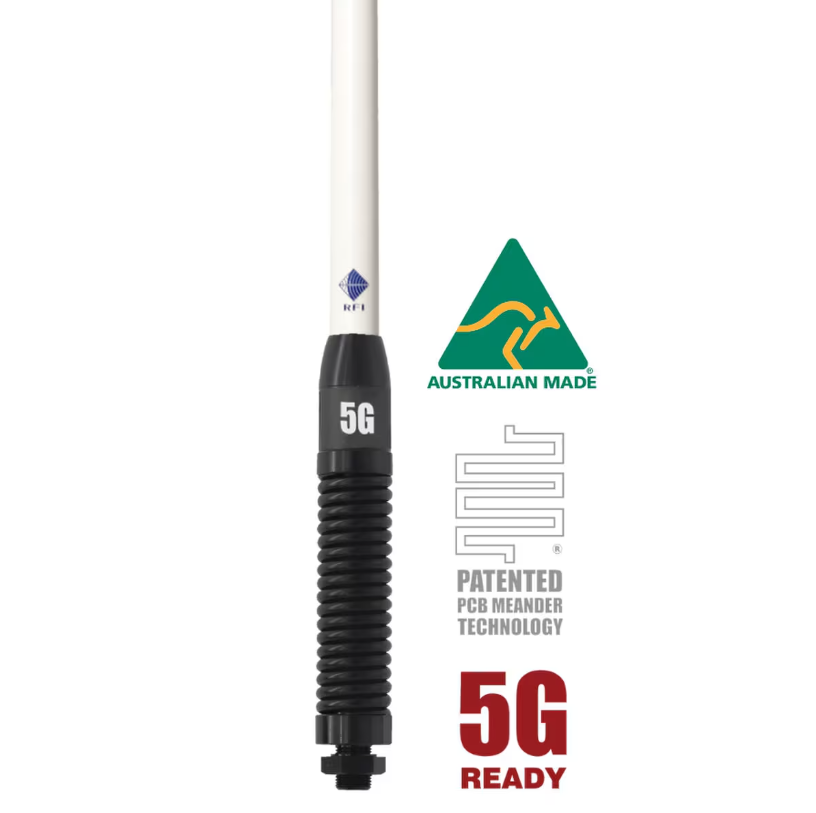

RFI CD8195-WB 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White/Black 918mm

Name: RFI CD8195-WB 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White/Black 918mm
Brand: RFI
SKU: CD8195-WB
Price: 172.57 AUD
Availability: OutOfStock

$172.57 AUD

~~$194.00 AUD~~ $172.57 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Out of stock

View full details

RFI CD8195-WB 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White Radome Black Spring 918mm

The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles.

KEY FEATURES:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.

- Ideal for new 5G/LTE networks with true multi-band coverage.

- High gain across all bands making it suiting fringe and rural applications.

Colour	White Radome/Black Spring
Packaging	Retail Hang Sell Bag
Whip Material	Fibreglass
Cable And Connector	5m RG58 low loss cable (9006) terminated with SMA male connector
Frequency Range	1710-2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance	50
Power w	10
Nominal Gain Dbi	6.5 / 4.5 / 5.5 / 6.5
Polarisation	Vertical
VSWR	<2.5:1
Mounting area	13-16mm diameter hole
Horizontal Beamwidth	Omni-Directional
Frequency MHz	698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Length [mm]	918mm
Operating Temperature Range [°C]	-40 to +85
Brand	RFI
Weight [kg]	0.82
