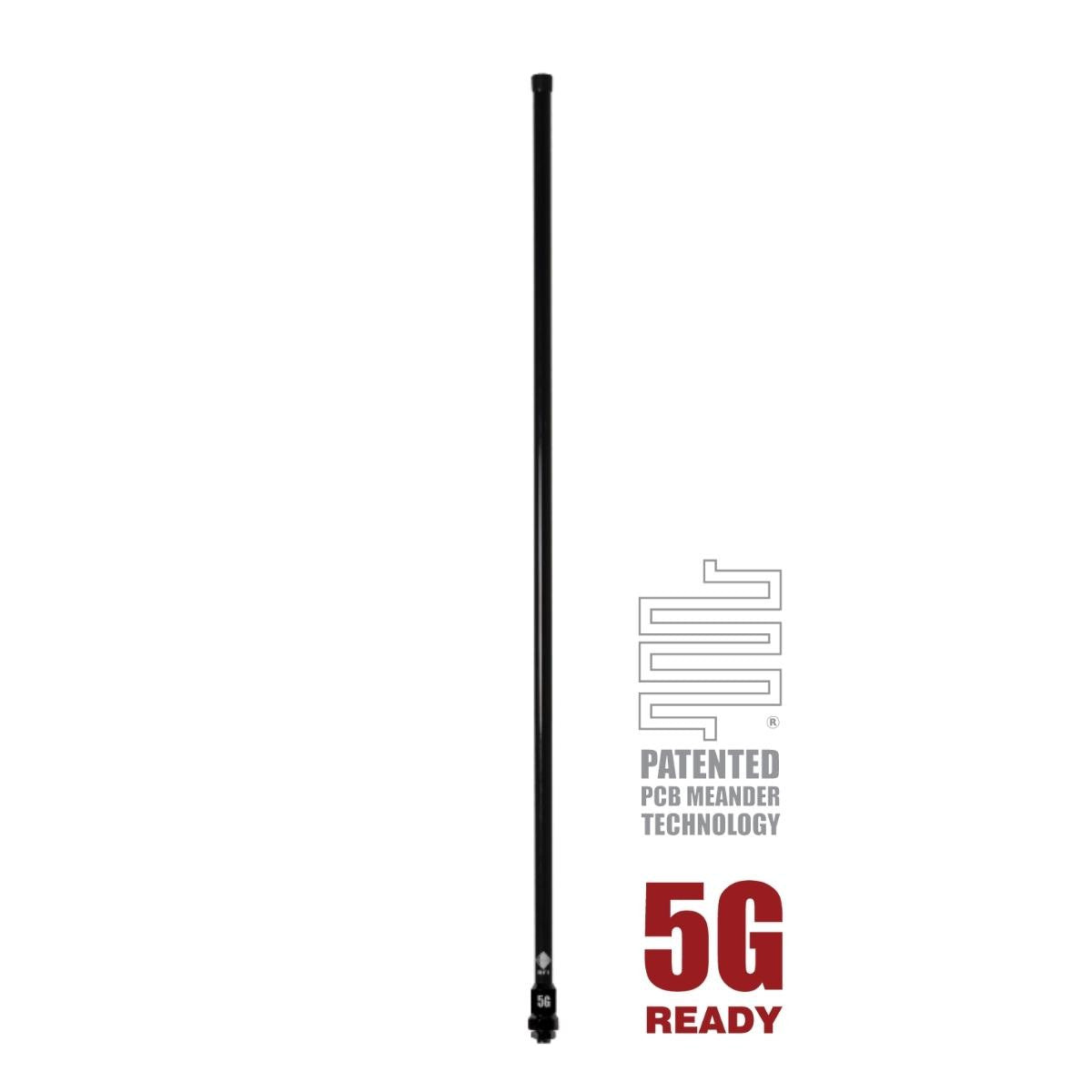

RFI CD8295 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 806mm RFI
RFI CD8295 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 806mm RFI

RFI CD8295 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 806mm

CD8295

RFI

Regular price $174.00 Sale

RFI CD8295 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) - Black 806mm



The new CD8200 Series 5G LTE antennas cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) and now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CD8200 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.


The CD8200 Series is designed for fixed mounting using the ½” 26TPI threaded stud & nut.

Key Features:
•    Patented PCB based collinear design offering the ultimate in pattern and gain stability.
•    Ideal for new 5G LTE networks with true multi-band coverage.
•    High gain across all bands making it suiting fringe and rural applications.

Colour Black
Cable Type RG58
Packaging Poly Bag
Whip Material Firbeglass
Cable And Connector 5m of RG58 (9006) low loss cable terminated with SMA male connector
Connector SMA(M)
Frequency Range 1710-2170, 2300 - 2700, 3400 - 3800, 698-960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 6.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm hole
Tuned bandwidth Full.
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Operating Temperature Range [°C] -45 to +85
IP Rating IP65
Brand RFI
Height [mm] 806





Documentation

CHECK OUT THE RFI PRODUCT DOCUMENTATION

View 8100 Series Specifications Matrix




Availability

2-4 DAYS LEAD TIME
