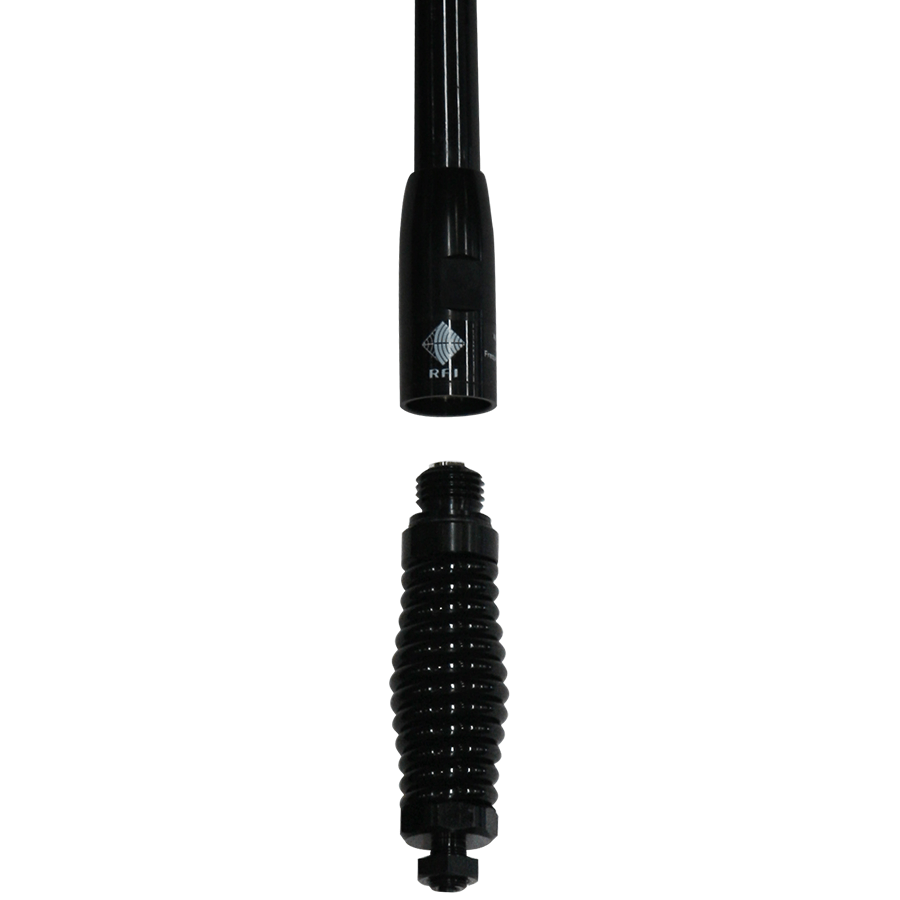

RFI CDQ3000-B Q-Fit UHF CB 477Mhz Collinear Antenna - Black /Black Chrome Spring 515mm
CDQ3000-BRFI
Regular price
$290.00
RFI CDQ3000-B QUICK-FIT UHF 3DBi CB 477mHZ ANTENNA - BLACK 515mm
CDQ3000 antenna is the last product to our Q-Fit UHF CB antenna series. The CDQ3000 is super compact at only 515mm long and is based on our hugely successful CDQ5000 antenna and designed to the same revolutionary performance. The secret to this extraordinary performance lies in the use of a unique PCB radiator. The patented Meander™ circuit delivers exceptional consistency in gain and pattern.
The new compact CDQ3000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring, the CDQ3000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
CDQ3000 antenna is the last product to our Q-Fit UHF CB antenna series. The CDQ3000 is super compact at only 515mm long and is based on our hugely successful CDQ5000 antenna and designed to the same revolutionary performance. The secret to this extraordinary performance lies in the use of a unique PCB radiator. The patented Meander™ circuit delivers exceptional consistency in gain and pattern.
The new compact CDQ3000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring, the CDQ3000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 3dBi gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
| Band | 477MHz |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | 3 |
| Tuning | Supplied pre-tuned |
| Power W | 25 |
| Cable and Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Suggested Installation | Bullbar, guard or roof rack |
| Radome Diameter mm | 22.5 – 18.5 |
| Packaging | Clear hanging bag |
| VSWR | <1.5:1 |
| Length mm | 515 |
| Mounting | Spring Assembly with threaded stud & nut |
