RFI CDQ5000-B Q-Fit UHF CB 477Mhz Collinear Antenna - Black / Black Chrome Spring 1010mm - Point to Point Distributions

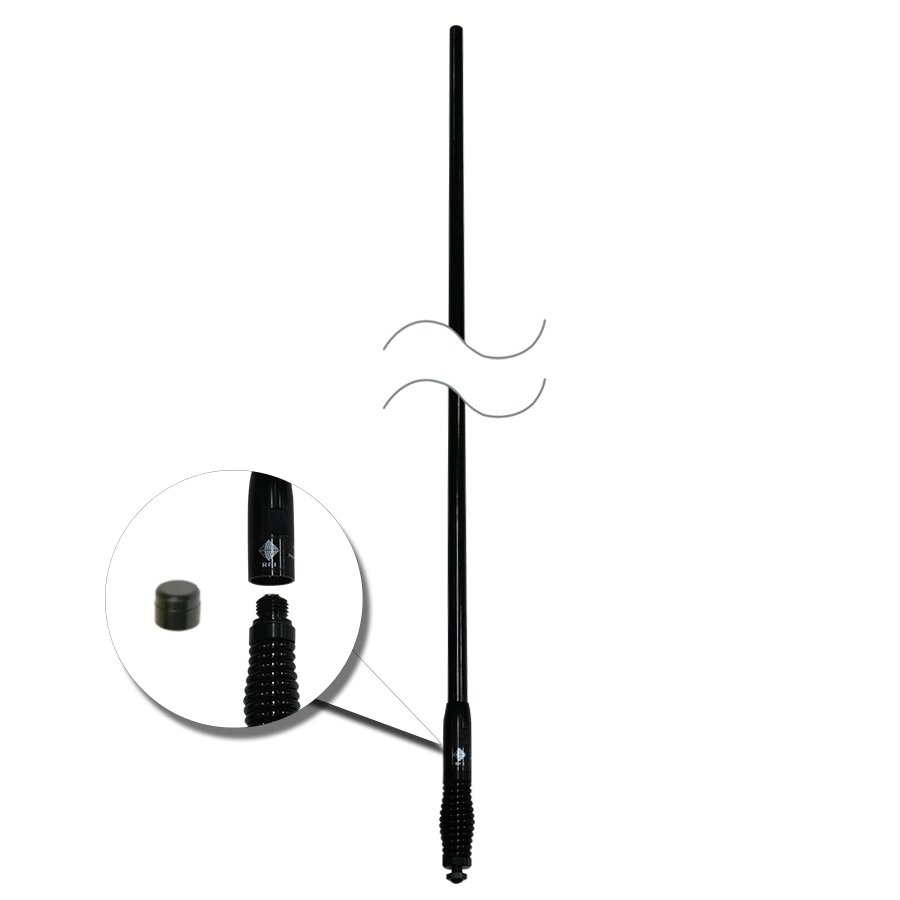

RFI CDQ5000-B Q-Fit UHF CB 477Mhz Collinear Antenna - Black / Black Chrome Spring 1010mm

CDQ5000-B

RFI

Regular price $299.00 Sale

RFI CDQ5000-B Q-Fit UHF CB Collinear Antenna - Black / Black Chrome Spring 1010mm

The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.

With a heavy duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.

Features:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent


Band 477MHz
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 5
Tuning Supplied pre-tuned
Power W 25
Cable and Connector 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Whip Material PCB radiating element housed in tapered high impact fibreglass
Suggested Installation Bullbar
Radome Diameter mm 22.5 - 15.6
Packaging Clear hanging bag
VSWR <1.5:1
Length mm 1010
Mounting Threaded Stud



Documentation

CDQ5000 Technical Data Sheet
