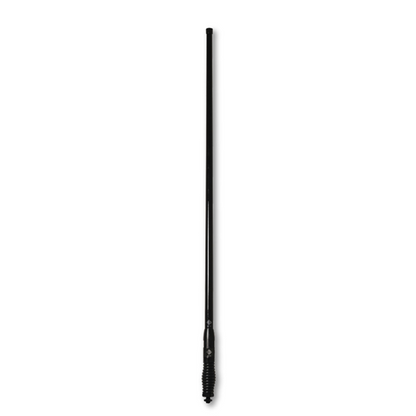

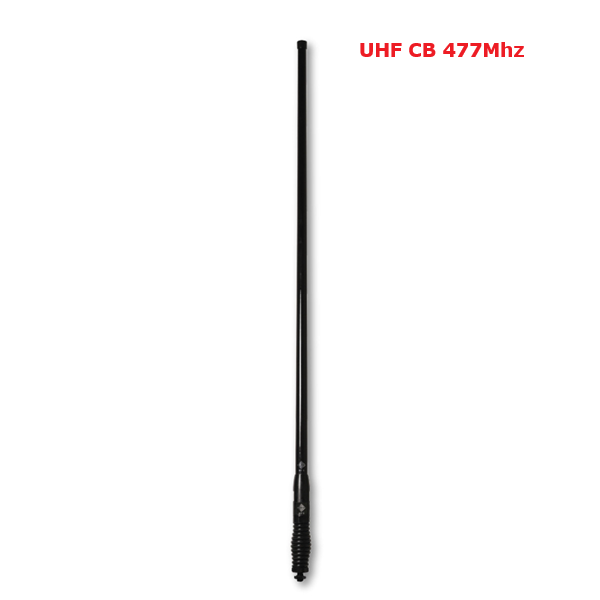

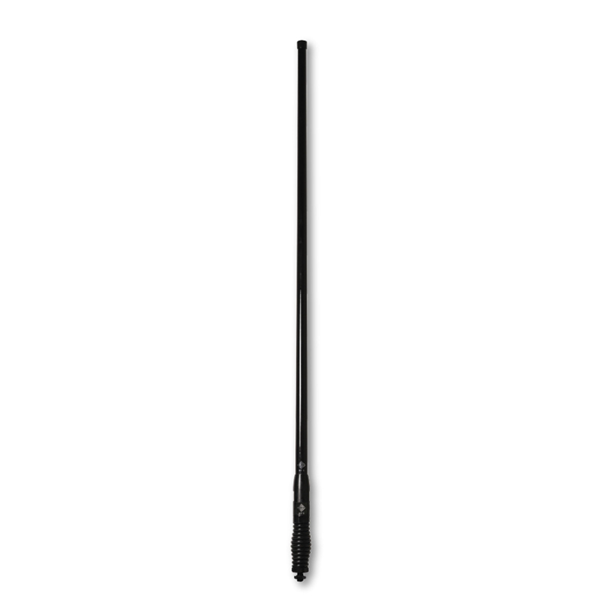

RFI CDQ5000-BL Q-Fit UHF CB Collinear Antenna - Black / Black Chrome Spring 1210mm
The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antenna is supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed.
With a heavy duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.
Features CDQ5000-BL:
- Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability.
- 5 dBi (CDQ5000-BL) gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security.
- Ground Independent
- 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
Specification:
| Brand | RFI |
| Mounting | Threaded Stud |
| Length [mm] | 1210 |
| Frequency MHz | 477 |
| Tuned Bandwidth | Full. No tuning required |
| Radome Diameter Mm | 22-16 |
| VSWR | <1.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 5 |
| Power [W] | 25 |
| Band | 477MHz |
| Tuning | Supplied pre-tuned |
| Cable And Connector | 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor |
| Whip Material | PCB radiating element housed in tapered high impact fibreglass |
| Packaging | Clear hanging bag |
| Colour | Black |
| Antenna Type | Collinears, Ground Independent, Meander, Removeable Whip/Replacement Whip, Spring Mount, Vehicle |
| Antenna Application | Vehicle Antenna |
| Antenna Configuration | SISO |
