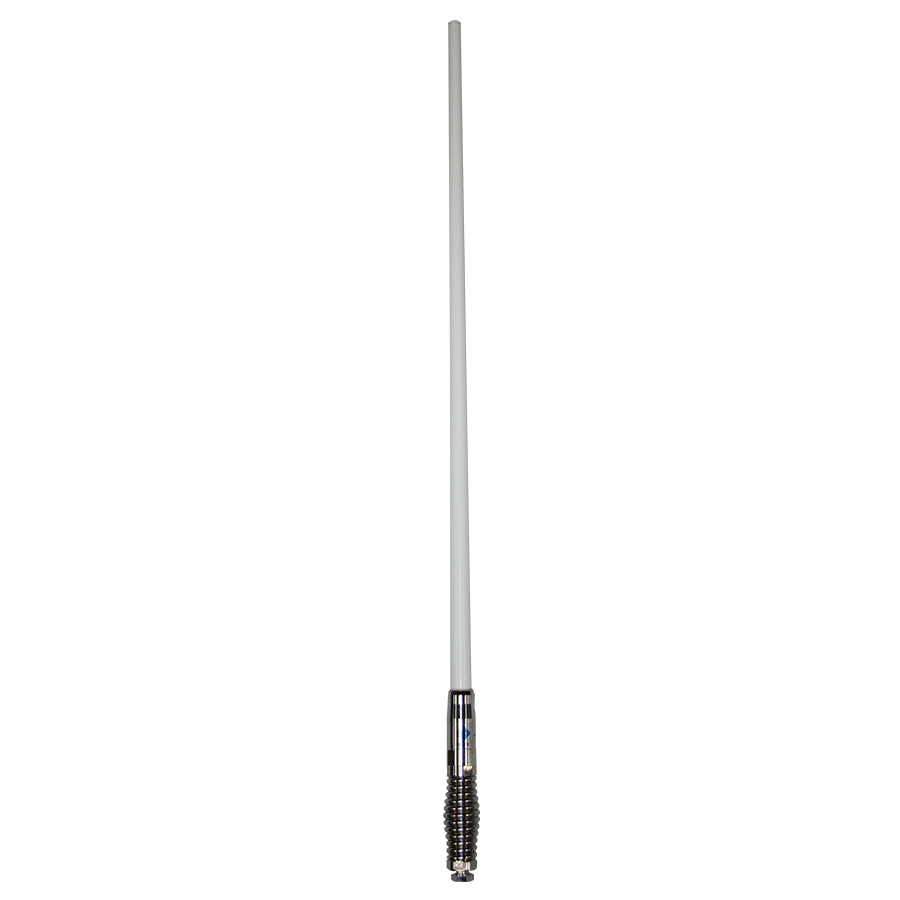

RFI CDQ7195-W-SMA White Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 970mm 6.5dBi RFI - PTP DISTRIBUTIONS
RFI CDQ7195-W-SMA White Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 970mm 6.5dBi RFI - PTP DISTRIBUTIONS

RFI CDQ7195-W-SMA White Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 970mm 6.5dBi

CDQ-7195-W-SMA

RFI

Regular price $267.00 $199.00 Sale

RFI CDQ7195-W White Cellular Mobile Antenna with FME connection Q-Fit 3G+4G+4GX 970mm 6.5dBi

The outstanding performance of the CDQ7100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.


In addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes, low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.

Features:

  • Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
  • Ideal for all new 4G networks with true multi-band coverage
  • High gain across 4Gx/4G+ band suiting fringe and rural applications
  • Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security

Specifications:

Frequency: 698-960 / 1710-2170 / 2300-2700 MHz
Impedance: 50
Tunable Bandwidth Full
Nominal Gain dBi 6.5 / 4.5 / 5.5
Radiator Material: Flexible PCB
Power W 10
Cable and Connector 5m of 9006 low loss cable terminated with FME female connector
Radome Diameter mm 22.5 - 15.6 Tapered
Packaging Retail Hang Sell
VSWR <2.5:1
Length mm 970



Documentation

View the CDQ 7100 Series Technical Data Sheet
