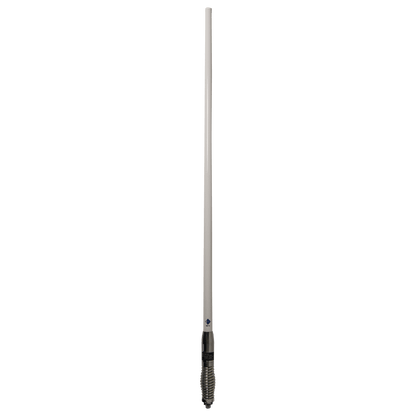

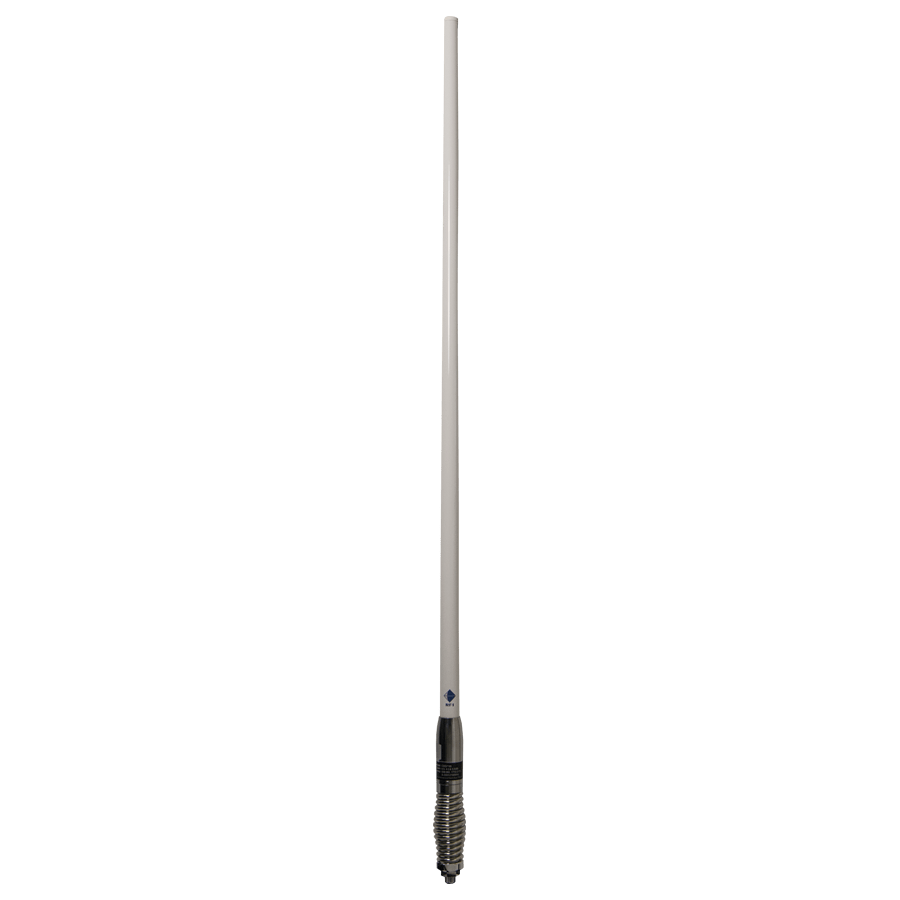

RFI CDQ7197-W-SMA White Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 1210mm 7.5dBi

CDQ-7197-W-SMA

RFI - PTP DISTRIBUTIONS

Regular price $314.00 Sale

RFI CDQ7197-W-SMA White Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX Antenna 1210mm 7.5dBi

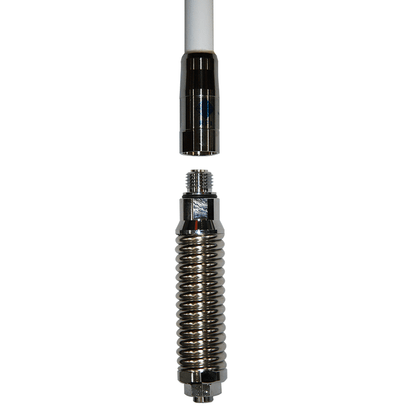

In addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes, low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.

Features:

  • Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
  • Ideal for all new 4G networks with true multi-band coverage
  • High gain across 4Gx/4G+ band suiting fringe and rural applications
  • Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security.

Specifications:

Frequency: 698-960 / 1710-2170 / 2300-2700 MHz
Impedance: 50
Tunable Bandwidth Full
Nominal Gain dBi 7.5 / 4.5 / 5.5
Radiator Material: Flexible PCB
Power W 10
Cable and Connector 5m of 9006 low loss cable terminated with SMA connector
Radome Diameter mm 22.5 - 15.6 Tapered
Packaging Retail Hang Sell
VSWR <2.5:1
Length mm 1210
Termination FME female connector
Mounting 16mm mounting hole



Documentation

CDQ 7100 Series Technical Data Sheet
