RFI CDQ7199-B-SMA Black Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 2080mm 8.5dBi

Name: RFI CDQ7199-B-SMA Black Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 2080mm 8.5dBi
Brand: RFI
SKU: CDQ-7199-B-SMA
Price: 360.0 AUD
Availability: InStock

$360.00 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

In stock, ready to ship

View full details

RFI CDQ7199-B-SMA Black Cellular Mobile Antenna with SMA connection Q-Fit 3G+4G+4GX 2080mm 8.5dBi

The outstanding performance of the CDQ7100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

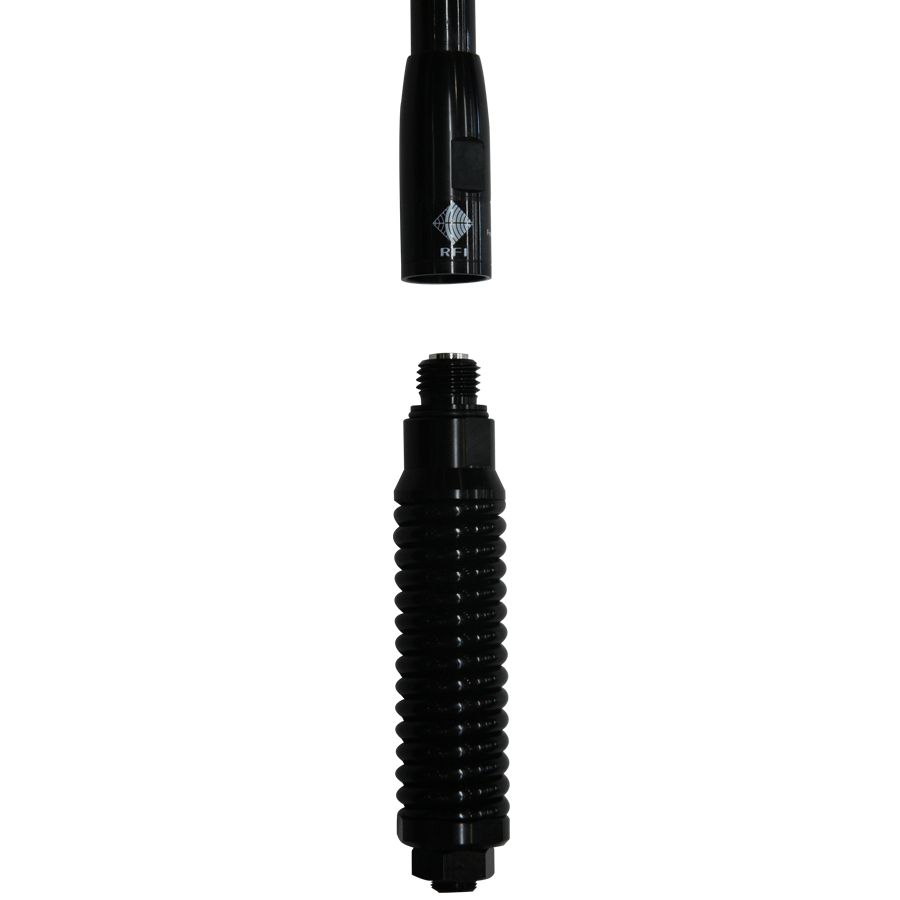

In addition the CDQ7100 series are designed with our Q-Fit® system for quick and simple removal of the whip section. This allows users to remove the whip section when entering car washes, low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.

Features:

Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability
Ideal for all new 4G networks with true multi-band coverage
High gain across 4Gx/4G+ band suiting fringe and rural applications
Q-Fit® removable whip system for ease of removal in low height environments such as multi story car parks, car wash’s or for security.

Specifications:

Frequency:	698-960 / 1710-2170 / 2300-2700 MHz
Impedance:	50
Tunable Bandwidth	Full
Nominal Gain dBi	8.5 / 4.5 / 5.5
Radiator Material:	Flexible PCB
Power W	10
Cable and Connector	5m of 9006 low loss cable terminated with SMA connector
Radome Diameter mm	22.5 - 15.6 Tapered
Packaging	Retail Hang Sell
VSWR	<2.5:1
Length mm	2080
Termination	FME female connector
Mounting	16mm mounting hole

Documentation

View the CDQ 7100 Series Technical Data Sheet
