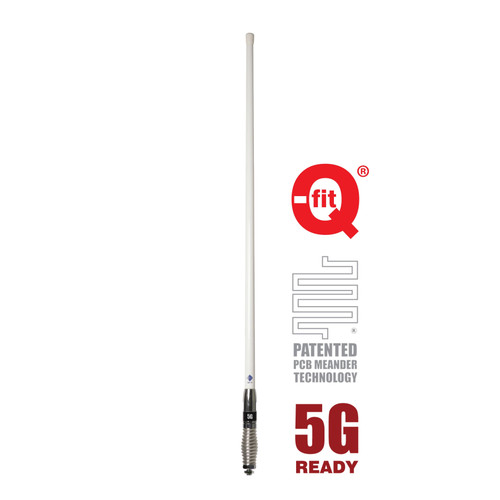

RFI CDQ8195-W 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 975mm

RFI CDQ8195-W 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 975mm

Regular price $255.00 AUD
Regular price $295.00 AUD Sale price $255.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

2 in stock

In stock, ready to ship
View full details

RFI CDQ8195-W Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m Cable terminated with SMA(M) - White Radome/Chrome Spring 975mm


The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.

KEY FEATURES:

- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.

Colour White
Packaging Retail Hang Sell Bag
Whip Material Fibreglass
Cable And Connector 5m RG58 (9006) low loss cable terminated with SMA male connector
Frequency Range 698-960 / 1710-2170 / 2300-2700 / 3400-3800
Nominal impedance 50
Power w 10
Nominal Gain Dbi 6.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm diameter hole
Tuned bandwidth Full
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Length [mm] 975mm
Brand RFI


Documentation

CHECK OUT THE RFI PRODUCT DOCUMENTATION

View the CDQ8100 Series Technical Data Sheet

View 8100 Series Specifications Matrix
