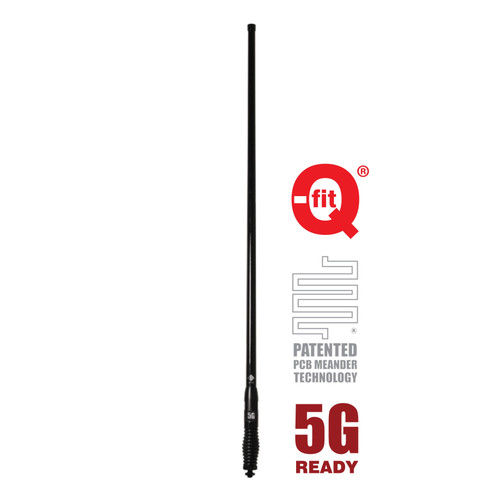

RFI CDQ8197 5G RFi Q-Fit LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1211mm

RFI CDQ8197 5G RFi Q-Fit LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1211mm

Regular price $288.77 AUD
Regular price $330.00 AUD Sale price $288.77 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock, ready to ship
View full details

RFI CDQ8197-B Q-FIT 5G LTE 7.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 1211mm

The new CDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, 2300-2700MHz, 3400-3800Mhz) but now the new 5G LTE band (3400-3800MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CDQ8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

This antenna is RFI flagship product and is designed for the harsh Australian conditions. Includes an integrated with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.


- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.

Brand RFI
Mounting 16mm mounting hole
Length [mm] 1211mm
Frequency MHz

698-960Mhz, 1710-2170Mhz, 2300-2700MHz, 3400-3800Mhz

Tuned Bandwidth Full
Radome Diameter Mm 22.5 - 15.6 Tapered
VSWR <2.5:1
Nominal Gain [dBi] 7.5 / 4.5 / 5.5
Power [W] 10
Cable And Connector 5m of 9006 low loss cable terminated with SMA male connector
Packaging Retail Hang Sell
Antenna Type Collinears, Ground Independent, Meander, Removeable Whip/Replacement Whip, Spring Mount
Antenna Application Vehicle Antenna
Antenna Features Multi Band Capable, Omnidirectional
Frequency Band Multi-Band 700 to 3800



View the CDQ8100 Series Technical Data Sheet


View 8100 Series Specifications Matrix


Related Products

Also available in White CDQ8195-W

Also available as CD8195-B (non removable whip)

Also available SMA to FME Adapter
