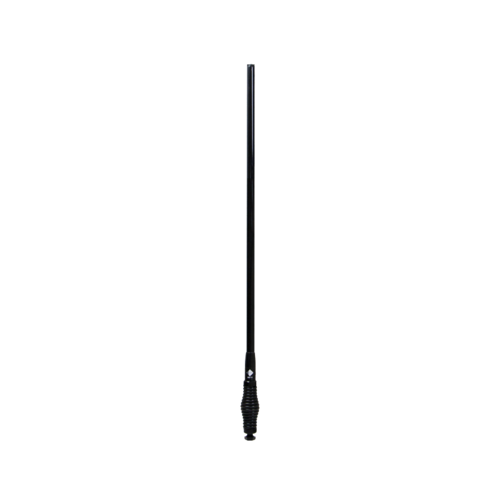

RFI CDR7194-B Black Cellular Mobile Antenna 3G+4G+4GX 695mm 5.5dBi

RFI CDR7194-B Black Cellular Mobile Antenna 3G+4G+4GX 695mm 5.5dBi

CDR-7194-B

RFI - PTP DISTRIBUTIONS

Regular price $208.00 Sale

RFI CDR7194-B 4G LTE Cellular Mobile Antenna 698-960 & 1710-2700MHz (All Black) 695mm

The CDR7194 4G LTE cellular mobile antenna utilises our patented Meander™ flexible PCB radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CDR7100 Series antennas sits in between our market leading CD7100 and CDQ7100. It is basically a light duty CDQ7100 (i.e. using our CD7100 15.6mm parallel radome and a CD900 Series spring assemble). The CDR7100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.

Features:

  • Patented PCB based collinear design offering the ultimate in pattern and gain stability
  • Ideal for all new 4G LTE networks with true multi-band coverage
  • High gain across all bands making it suiting fringe and rural applications
  • Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security

 Specifications:

Frequency: 698-960, 1710-2170 & 2300-2700MHz
Impedance: 50
Tunable Bandwidth Full
Nominal Gain dBi 6.5 / 4.5 / 5.5
Radiator Material: Flexible PCB
Power W 10
Cable and Connector 5m of 9006 low loss cable terminated with FME female connector
Radome Diameter mm 16
Packaging Retail Hang Sell
VSWR <2.5:1
Length mm 695
Mounting 13mm thread stud & nut



Documentation

RFI CDR7100 Series Technical Data Sheet
