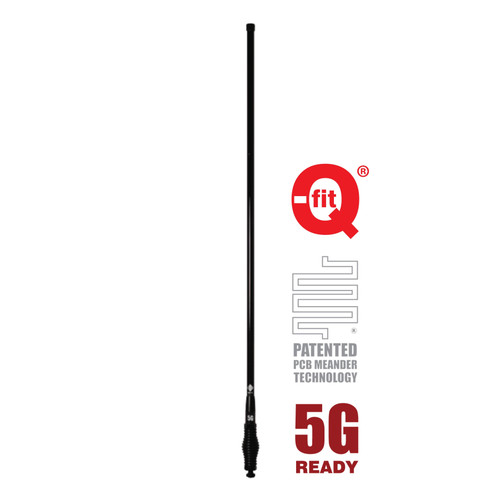

RFI CDR8194-B 5G Q-Fit LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 667mm

RFI CDR8194-B 5G Q-Fit LTE 5.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - Black 667mm

SKU:CDR8194-B

Regular price $222.15 AUD
Regular price $250.00 AUD Sale price $222.15 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

View full details

RFI CDR8194-B Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA (M) - Black

The new CDR8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CDR8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CDR8100 Series sits neatly in between our lighter duty CD8100 Series & our heavy duty CDQ8100 Series. Includes an integrated spring with threaded stud/nut for easy installation on vehicles . The whip can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.

KEY FEATURES:

  • Patented PCB based collinear design offering the ultimate in pattern and gain stability.
    - Ideal for new 5G/LTE networks with true multi-band coverage
    - High gain across all bands making it suiting fringe and rural applications
    - Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.

Specifications:

Packaging Retail Hang Sell Bag
Whip Material Fibreglass
Cable And Connector 5m RG58 (9006) low loss cable terminated with SMA male connector
Frequency Range 1710 - 2170, 2300 - 2700, 3400 - 3800, 698 - 960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 5.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm diameter hole
Tuned bandwidth Full
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800
Length [mm] 667
Brand RFI


View the CD8100 Series Technical Data Sheet

View 8100 Series Specifications Matrix
