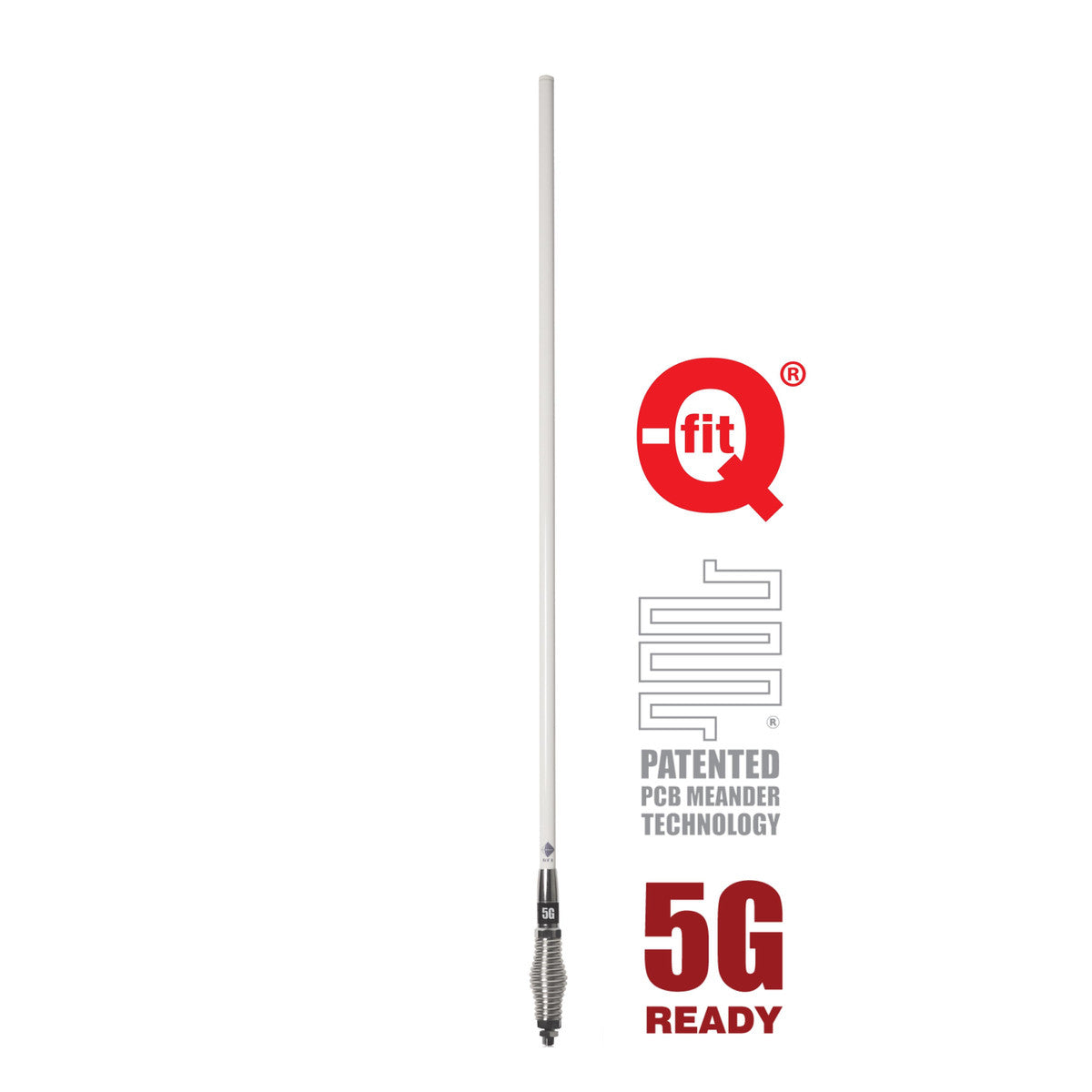

RFI CDR8195-W 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 940mm

RFI CDR8195-W 5G Q-Fit LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 940mm

Regular price $270.00 AUD
Regular price Sale price $270.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock, ready to ship
View full details

RFI CDR8195-W Q-FIT 5G LTE 6.5dBi Collinear Antenna (698-3800MHz); 5m SMA(M) - White 940mm

The new CDR8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CDR8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CDR8100 Series sits neatly in between our lighter duty CD8100 Series & our heavy duty CDQ8100 Series. Includes an integrated spring with threaded stud/nut for easy installation on vehicles . The whip can be removed via the integrated N male connector in the whip and N female connector on the spring ass


- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage
- High gain across all bands making it suiting fringe and rural applications
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.

Colour White
Packaging Retail Hang Sell Bag
Whip Material Fibreglass
Cable And Connector 5m RG58 (9006) low loss cable terminated with SMA male connector
Frequency Range 1710-2170, 2300 - 2700, 3400 - 3800, 698-960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 6.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm diameter hole
Tuned bandwidth Full
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Length [mm] 940mm
Brand RFI



View the CDR8100 Series Technical Data Sheet

View CD8100 Series Specifications Matrix
