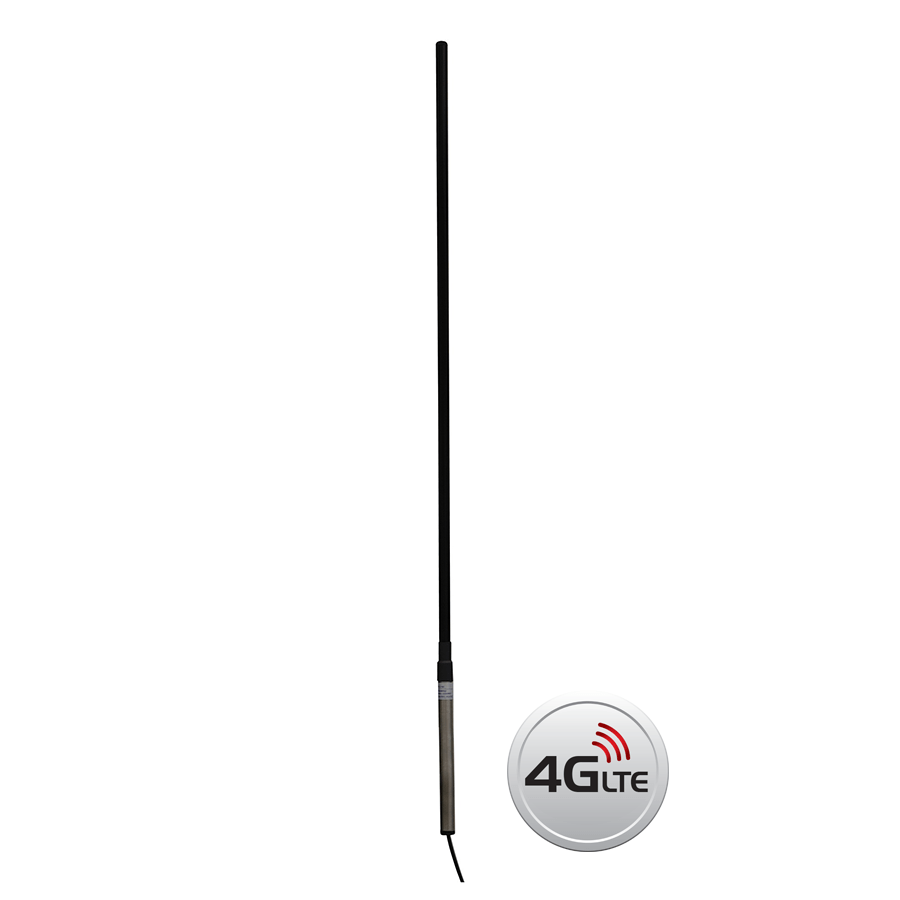

RFI COL7199 Cellular Collinear Antenna with 200mm S/S Tube SMA connection 3G+4G+4GX 1730mm 8.5dBi

RFI COL7199 Cellular Collinear Antenna with 200mm S/S Tube SMA connection 3G+4G+4GX 1730mm 8.5dBi

$253.00 AUD
$253.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock, ready to ship
View full details

RFI COL7199 Cellular Collinear Antenna with 200mm Stainless Steel Mounting Tube 3G+4G+4GX 1730mm 8.5dBi

The evolution continues with the release of the COL700 Series 4G LTE cellular Meander™ collinear antenna. The secret to its outstanding performance lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

With a 200mm (x 19mm) stainless steel mounting tube, the COL7199 is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.

Also available in smaller version (COL7195) - here

Features:

  • Patented PCB based collinear design offering the ultimate in patter and gain stability
  • Ideal for all new networks with true multi-band coverage
  • High gain across 4Gx/4G+ band suiting fringe and rural application

Specifications:

Nominal Gain dBi 8.5 @ 698-960MHz / 4.5 @ 1710-2170MHz / 5.5 @ 2300-2700MHz
Frequency MHz 698-960, 1710-2170 & 2300-2700
Tunable Bandwidth Full. No tuning required
VSWR <2.5:1
Polarisation Vertical
Vertical Beamwidth 15 / 15 / 20
Power W 10
Construction Black radome, 200mm S/S mounting tube
Length mm 1730
Radome Diameter mm 15.6
Weight (kg) .622
Termination 10m of 9006 low loss cable terminated with SMA connection
Mounting Area 200 x 19 S/S, 2 x S/S hose clamps (supplied)
Wind Gust Rating km/h 240



Mounting

With a 200mm (x 19mm) stainless steel mounting tube, the COL7100 Series is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps, which have an adjustment of 27-51mm.



Documentation

View the COL7100 Series Technical Spec Sheet
