RFI

SKU:COL8195

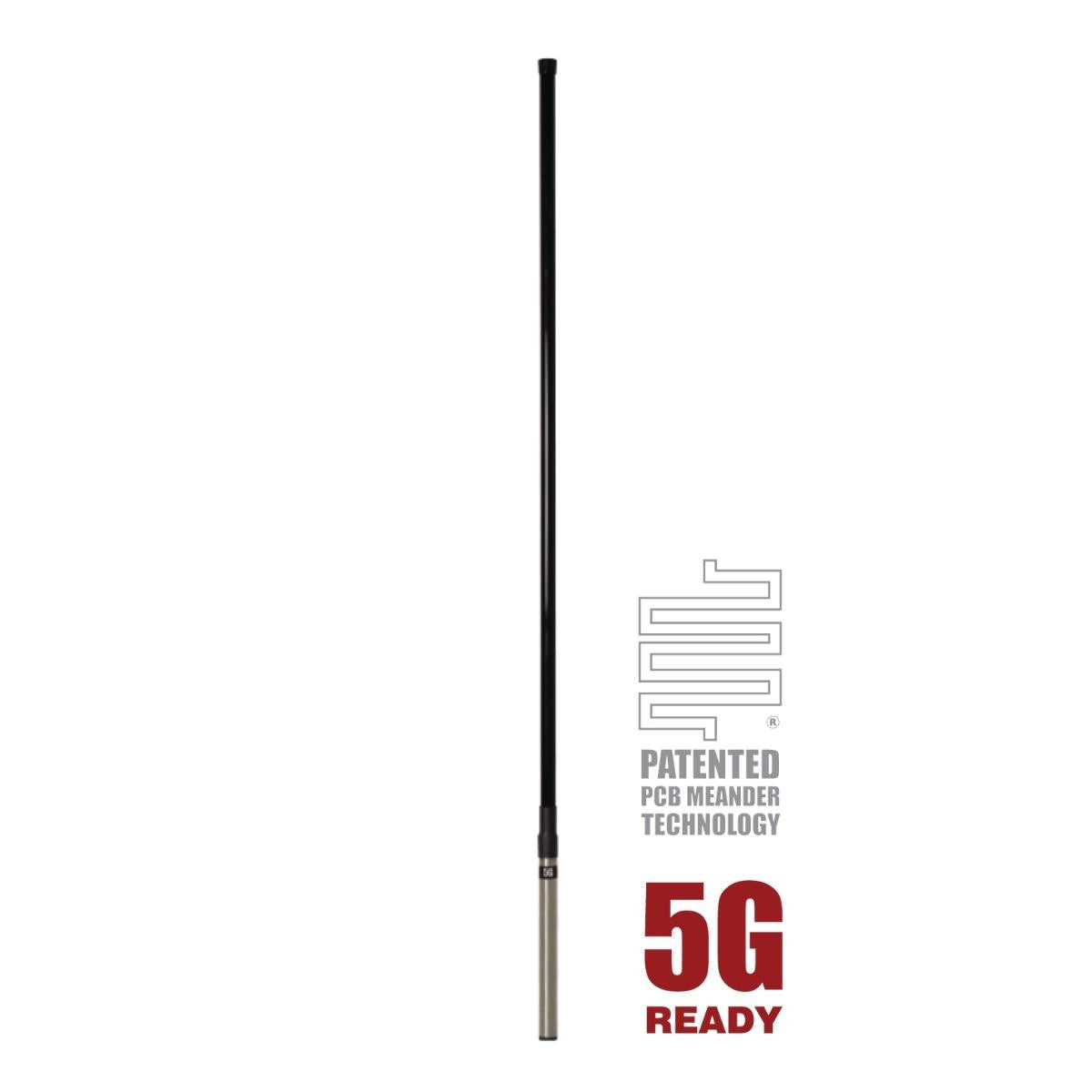

RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 10m SMA(M) - Black 965mm

RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 10m SMA(M) - Black 965mm

Regular price $173.24 AUD
Regular price $195.00 AUD Sale price $173.24 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock, ready to ship
View full details

RFI COL8195 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 10m SMA(M) - Black 965mm



The new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the COL8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

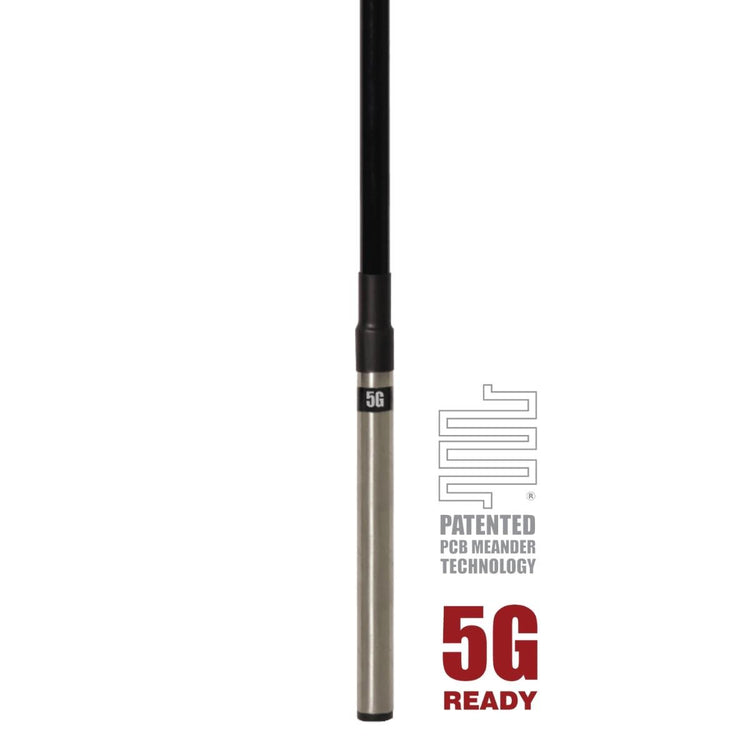

The COL8100 Series is supplied with a 200mm x 19mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps.

Key Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.

Colour Black
Cable Type RG58
Packaging Retail Hang Sell Pack
Cable And Connector 10m of RG58 (9006) low loss cable terminated with SMA male connector
Connector SMA(M)
Frequency Range 1710-2170, 2300 - 2700, 3400 - 3800, 698-960
Wind Load (Thrust) @ 160km/h N 240
Nominal impedance 50
Power w 10
Nominal Gain Dbi 6.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Radome Diameter Mm 15.6
Mounting area 200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied)
Construction Black radome, 200 x 19mm stainless steel mounting tube
Tuned bandwidth Full
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz
Operating Temperature Range [°C] -45 to +85
IP Rating IP65
Brand RFI
Height [mm] 965mm



Documentation

CHECK OUT THE RFI PRODUCT DOCUMENTATION

View the COL8100 Series Technical Data Sheet

View 8100 Series Specifications Matrix



Related Products

Also available as COL8199 - 1730mm
