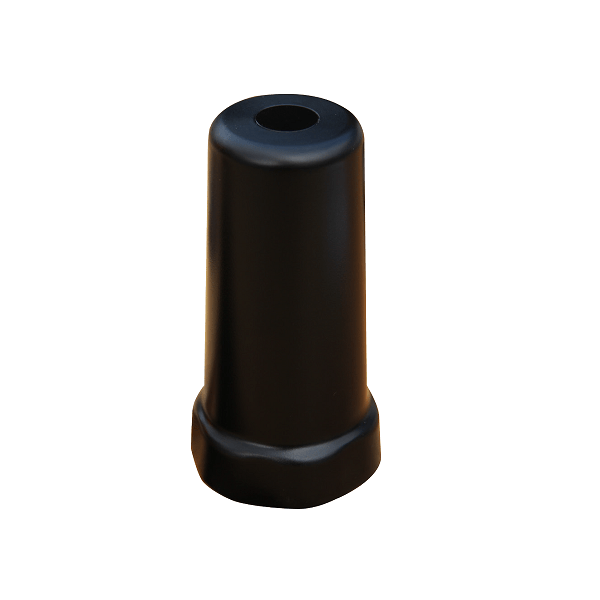

RFI CSM700-5M-SMA Black Cellular Mobile Antenna with SMA connection Stud Mount with 5M RG58 Cable
RFI CSM700-5M-SMA Black Cellular Mobile Antenna with SMA connection Stud Mount with 5M RG58 Cable
Couldn't load pickup availability
RFI CSM700-5M-SMA LTE Cellular Stud Mount with 5M RG58 Cable terminated with SMA connector
The CSM700 is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 3.8GHz. The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. The CSM700 is fitted with a 15.7mmᶲ stud mount (fits a 16mmᶲ hole) incorporating an integrated rubber O-ring seal and is IP65 rated.
Features:
◼Polycarbonate radome is ideal for outdoor use
◼ Attractive, low profile design for maximum overhead clearance
◼ Stud mounting offers ease of installation in the field
◼ Ingress protection to IP65
◼ Other cable/connector configurations available upon request
Specifications
| Weight [kg] | 0.17 without cable |
| Height [mm] | 80 |
| Brand | RFI |
| IP Rating | IP65 |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3500-3800 |
| Tuned Bandwidth | Full |
| Construction | UV Stable Black Polycarbonate Radome |
| Radome Diameter Mm | 50 |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Nominal Gain [dBi] | 2 / 3 / 5 / 5 |
| Frequency | 698-960 / 1710-2170 / 2300-2700 / 3300-3800 MHz |
| Connector | SMA(M) |
| Cable And Connector | 5.0m RG58 Terminated with SMA(M) |
| Antenna Type | Omni |
| Antenna Application | IoT and M2M, Terminal Antenna |
| Frequency Band | Multi-Band 700 to 2700 |
| Antenna Configuration | SISO |
Documentation
CSM700-5M-SMA Product Data Sheet
