RFI DAS6938-SDP150-N Low PIM SISO Directional Panel Antenna - 698-960MHz&1710-2700Mhz&3300-3800, N(F) with 10M cable

RFI DAS6938-SDP150-N Low PIM SISO Directional Panel Antenna - 698-960MHz&1710-2700Mhz&3300-3800, N(F) with 10M cable SMA terminated

DAS6938-SDP150-10

RFI - PTP DISTRIBUTIONS

Regular price $129.00 Sale

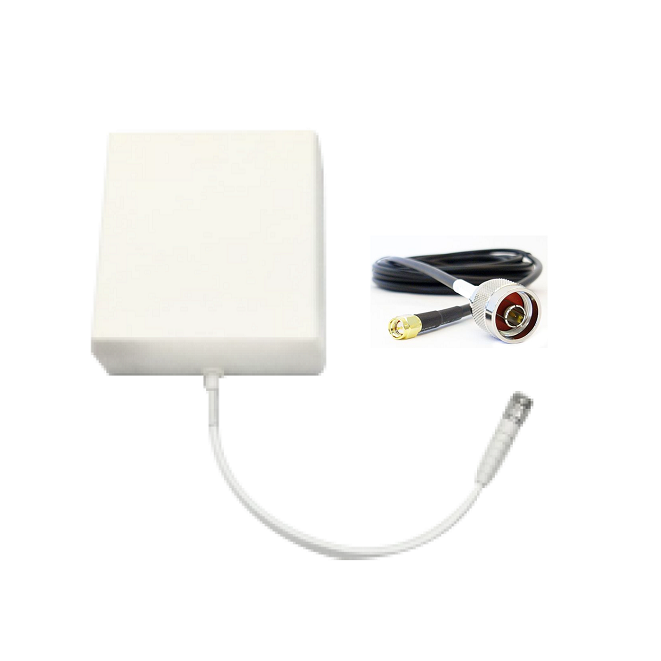

RFI DAS6938-SDP150-N Low  PIM SISO Directional Panel Antenna - 698-960MHz&1710-2700Mhz&3300-3800, N(F) + 10.0M cable SMA terminated

The DAS6927-SDP150-N is a PIM rated, indoor/outdoor SISO directional panel antenna antenna, covering 4G &5G Cellular bands, 689-960 MHz, 1710-2700MHz & 3300-3800 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.

Features:

RFI's Low PIM DAS range is a high performance, PIM rated DAS antenna range, offering indoor or outdoor panel antennas with great directional beam control, and a range of indoor and outdoor Omni directional solutions to suit indoor, outdoor requirements, with the optional low profile aesthetic. The multi-band capability of each offering covers both 4G and 5G bands including 690-960MHz, 1710-2700MHz & 3300-3800MHz, therefore eliminating the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications.

Features Include:
• Low Profile compact form factor
• IP55 rated • Coverage across multiple cellular and WLAN bands • Ideal for DAS deployment for in-building coverage solutions
• Excellent -150dBc PIM performance
• 1 x 300mm tail terminated with N type female connector
• 5dBi @ 698-960Mhz; 6dBi @ 1710-2700Mhz; 7bBi @ 3300-3800Mhz

This bundle comes with a 10Mtr extension cable terminated with SMA to be able to connect this antenna direct to a Cel-Fi GO unit - 9207N-10

 Specifications

Frequency Range 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
Base Gain 0 to 3 dBd
Nominal impedance 50
Power w 50
Nominal Gain Dbi 5/06/2007
Dimensions 165(L) x 155(W) x 50(H)
VSWR <1.8:1 / <1.5:1 / <1.8:1
Termination Single 300mm tail with N (F) connector
Construction UV resistant White ASA, IP55
Passive IM 3rd Order (2x20W) dBc -150
Horizontal Beamwidth 90 / 80 / 70
Brand RFI
Weight [kg] 0.33


Documentation

DAS6938-SDP150-N_2 Low PIM SISO Directional Panel Antenna
