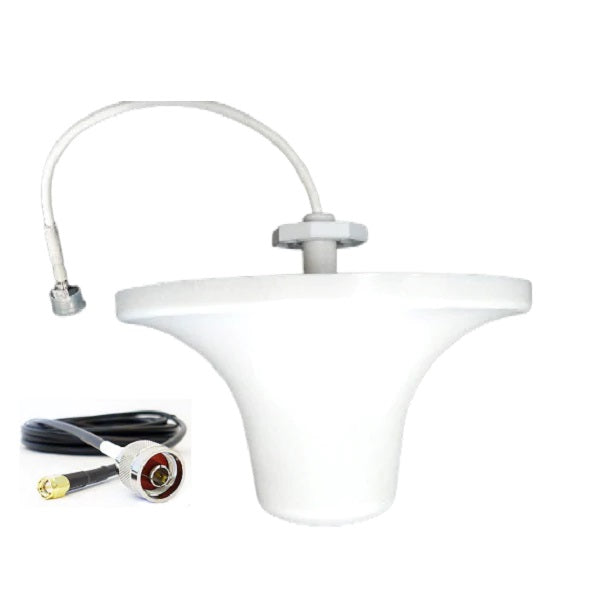

RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz, with 10M cable SMA terminated

RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz, with 10M cable SMA terminated

DAS6938-SOC150-10

RFI - PTP DISTRIBUTIONS

Regular price $120.00 Sale

RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz, N(F) + 10.0M cable SMA terminated

The DAS6938-SOC150-N is a PIM rated, indoor SISO Omni-directional antenna, covering 4G &5G Cellular bands, 689-960 MHz, 1710-3800 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.

Features:

RFI's Low PIM DAS range is a high performance, PIM rated DAS antenna range, offering indoor or outdoor panel antennas with great directional beam control, and a range of indoor and outdoor Omni directional solutions to suit indoor, outdoor requirements, with the optional low profile aesthetic. The multi-band capability of each offering covers at least 690-960MHz & 1710-3800MHz and eliminates the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications Features Include:
 • Low Profile compact form factor
 • Coverage across multiple cellular and WLAN bands
 • Ideal for DAS deployment for in-building coverage solutions
 • Excellent -153dBc PIM performance
 • 300mm tail terminated with N type female connector*

* This bundle comes with a 10Mtr extension cable terminated with SMA to be able to connect this antenna direct to a Cel-Fi GO unit - 9207N-10

Specifications

Connector N(F)
Frequency Range 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
Base Gain 0 to 3 dBd
Nominal impedance 50
Power w 50
Nominal Gain Dbi 2 / 3 / 4 / 5
Dimensions 120 x 200 mm
VSWR <1.8:1 / <1.5:1 / <1.8:1
Termination Single 300mm tail with N (F) connector
Construction UV resistant White ASA, IP45
Passive IM 3rd Order (2x20W) dBc -150
Width [mm] 200
Operating Temperature Range [°C] -40 ~ 70
IP Rating IP45
Brand RFI
Weight [kg] 0.3
Height [mm] 18
