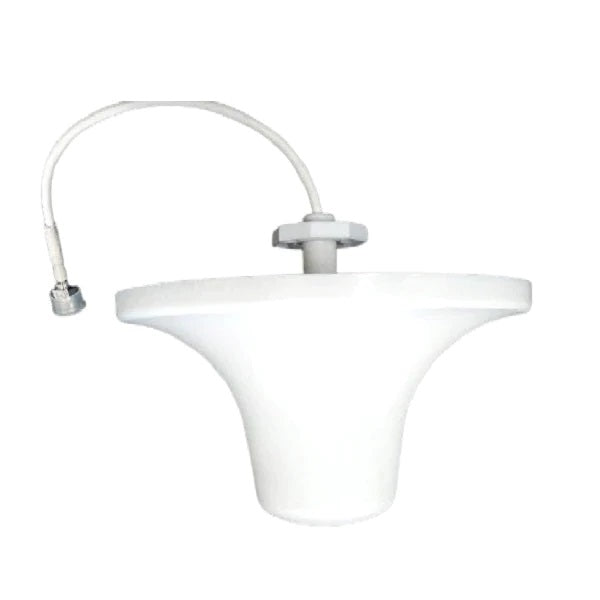

RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800 MHz
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800 MHz
Couldn't load pickup availability
RFI DAS6938-SOC150-N DAS LTE Omni Directional Ceiling Antenna 698-3800MHz, N(F)
The DAS6938-SOC150-N is a PIM rated, indoor SISO Omni-directional antenna, covering 4G &5G Cellular bands, 689-960 MHz, 1710-3800 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.
Features:
RFI's Low PIM DAS range is a high performance, PIM rated DAS antenna range, offering indoor or outdoor panel antennas with great directional beam control, and a range of indoor and outdoor Omni directional solutions to suit indoor, outdoor requirements, with the optional low profile aesthetic. The multi-band capability of each offering covers at least 690-960MHz & 1710-3800MHz and eliminates the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications Features Include:
• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -153dBc PIM performance
• 300mm tail terminated with N type female connector*
* This bundle comes with a 10Mtr extension cable terminated with SMA to be able to connect this antenna direct to a Cel-Fi GO unit - 9207N-10
Specifications
| Connector | N(F) |
| Frequency Range | 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 2 / 3 / 4 / 5 |
| Dimensions | 120 x 200 mm |
| VSWR | <1.8:1 / <1.5:1 / <1.8:1 |
| Termination | Single 300mm tail with N (F) connector |
| Construction | UV resistant White ASA, IP45 |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Width [mm] | 200 |
| Operating Temperature Range [°C] | -40 ~ 70 |
| IP Rating | IP45 |
| Brand | RFI |
| Weight [kg] | 0.3 |
| Height [mm] | 18 |
Documentation
DAS6938-SOC150-N Specifications
