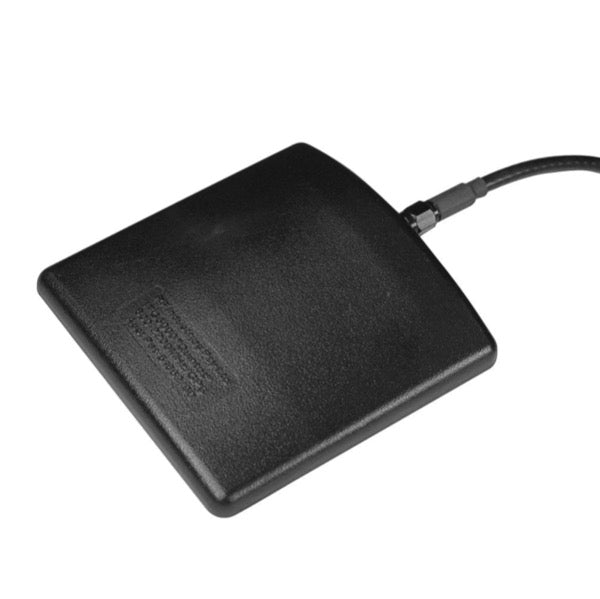

RFI ITG5001 Multiband Cellular 824-960MHz/1710-2170MHz

ITG5001

RFI

Regular price $75.00 Sale

RFI ITG5001 Multiband Cellular 824-960MHz/1710-2170MHz


ITG5001

A derivation of the Duet™ and Quadrant™ dual/multi band products, the antenna uses stripline fed slot radiator technology with patch circuits used to introduce multi band performance. Being slightly larger than the multi band Quadrant™, the Quintet™ has been configured to suit not only GSM900 and GSM1800 systems but also covers AMPS, DAMPS and CDMA 800, SMR systems, PCS1900, DCS1800 and UMTS/3G.

Features:
• Truly global cellular coverage.- One antenna suits all of the following systems: GSM900 and GSM1800, AMPS, DAMPS and CDMA 800, SMR systems, PCS1900, DCS1800 and UMTS/3G.
• Superb performance – approaches a quarter wave antenna and easily out-performs external mounted glass mount antennas. Patented mixed polarity design.
• Reduce inventories – one antenna suits all systems and can be shipped globally
• Completely internal – no impact on prestige vehicles, no threat of vandalism, no car wash damage and simplified installation
• Supplied ready to go with peel and stick mounting and pre-terminated, fully shielded low loss coaxial cable

Specifications:

Band 824 - 960MHz / 1710 - 2170MHz
Tunable Bandwidth Entire specified band @ <2.0:1 VSWR
Nominal Gain dBi 1.1 @ 806 - 960MHz / 4.4 @ 1710 - 1990 / 4.5 @ 1910 - 2170
Tuning Supplied pre-tuned
Power W 10
Cable and Connector Cellular feeder of 5.0m 9014 low loss, fully shielded cable terminated with SMA male and FME nipple (adapters available). GPS feeder of 5.0m RG174 type cable MCX connector fitted
VSWR <2.0:1
Height mm 17
Width mm 90
Length mm 90
Termination SME Female

Documentation

View the ITG5001 Technical Data Sheet
