RFI
SKU:LTE-MAGM-3M-SMA

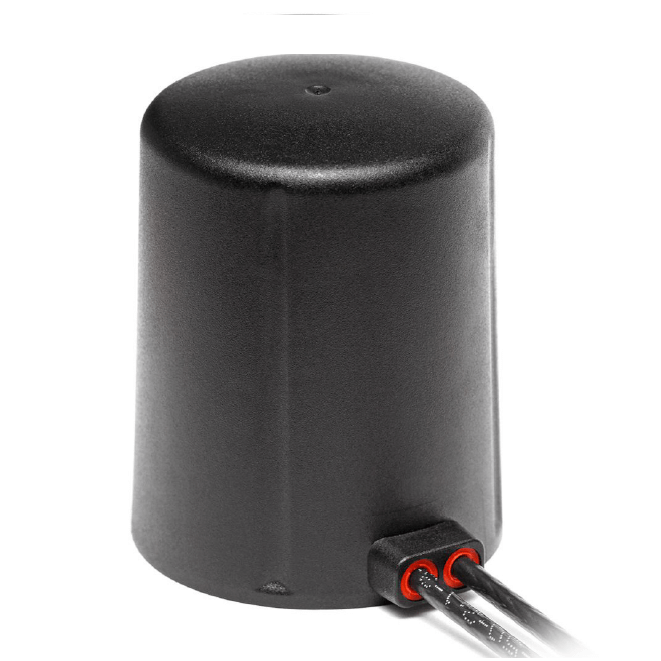

RFI LTE-MAGM-3M-SMA Cellular MIMO Low Profile Magnetic Antenna
RFI LTE-MAGM-3M-SMA Cellular MIMO Low Profile Magnetic Antenna
Couldn't load pickup availability
RFI LTE-MAGM-3M-SMA LTE Cellular MIMO Low Profile Magnetic Antenna - 2 x 3M RG174 / SMA Male Connector
The LTE-MAGM Series of magnetic MIMO wideband cellular antenna delivers stable, omni-directional gain across all common 4G, 3G & 2G global cellular bands from 698 MHz to 2.7 GHz. This low profile antenna can be used for all cellular devices and will not require changing antennas when deploying from most major markets worldwide such as 4G to 3G. The strong magnetic base is extremely robust, and uses high-quality rare earth magnets for a secure magnetic mount to any metal surface.
Features:
• Magnetic mount
• High performance MIMO
• Ground plane dependent
• Customised cable & connectors (MOQ’s may apply)
• IP69K
LTE-MAMM-3M-SMA Technical Specifications - click here
| Frequency: | 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz |
| Band | MIMO LTE |
| Tunable Bandwidth | Full. No tuning required |
| Nominal Gain dBi | -0.1dBi / 3.1dBi / 3.5dBi (peak) |
| Power W | 25 |
| Packaging | Clear Bag |
| VSWR | <3.0:1 |
| Cable Type / Length | 2 x 3m RG174 |
| Termination | 2 x SMA male connectors |
| Mounting |
Magnetic |
|
Operating Temperature °C |
-40 to +85 |
| Ingress Protection Rating | IK69K |
Documentation
LTE-MAGM-3M-SMA Technical Data Sheet
