RFI LTE-MAGS-3M-SMA TE SISO Magnetic Base Antenna 698-2700Mhz - Point to Point Distributions

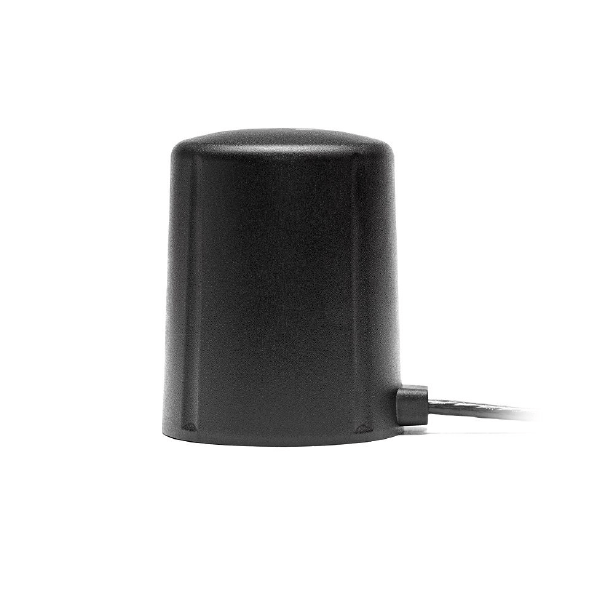

RFI LTE-MAGS-3M-SMA TE SISO Magnetic Base Antenna 698-2700Mhz

LTE-MAGS-3M-SMA

RFI - PTP DISTRIBUTIONS

Regular price $90.00 Sale

RFI LTE-MAGS-3M-SMA TE SISO Magnetic Base Antenna 698-2700MHZ - 3M Cable with SMA Male

The LTE-MAGS Series of magnetic wideband cellular antenna delivers stable, omni-directional gain across all common 4G & 3G global cellular bands from 698 MHz to 2.7 GHz. This low profile antenna can be used for all cellular devices and will not require changing antennas when deploying from most major markets worldwide such as 4G to 3G. The strong magnetic base is extremely robust, and uses high-quality rare earth magnets for a secure magnetic mount to any metal surface.

Features:

  • Magnetic mount

  • High performance

  • Ground plane dependent

  • IP69K

Specifications

Frequency: 698-960 MHz / 1710-2170 MHz / 2500-2700 MHz
Band SISO LTE
Tunable Bandwidth Full. No tuning required
Nominal Gain dBi 1.8dBi / 3.1dBi / 2.9dBi (peak)
Power W 25
Packaging Clear Bag
VSWR <3.0:1
Cable Type / Length 1 x 3m RG174
Termination 1 x SMA male connectors
Mounting Magnetic
Operating Temperature °C -40 to +85
Ingress Protection Rating IK69K



Documentation

LTE-MAGS-3M-SMA Product Data Sheet



Availability

Coming Soon
