RFI LTE MIMO Omni-Directional Antenna (790-2700MHz); 2 X 5m 2 X SMA(M) - Point to Point Distributions
RFI LTE MIMO Omni-Directional Antenna (790-2700MHz); 2 X 5m 2 X SMA(M) - Point to Point Distributions

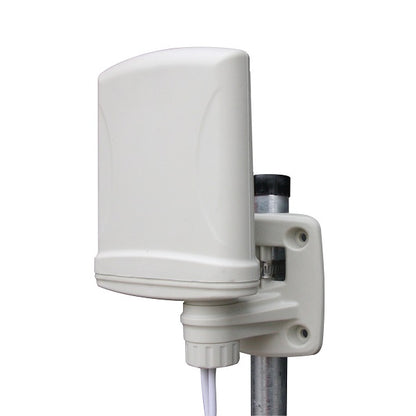

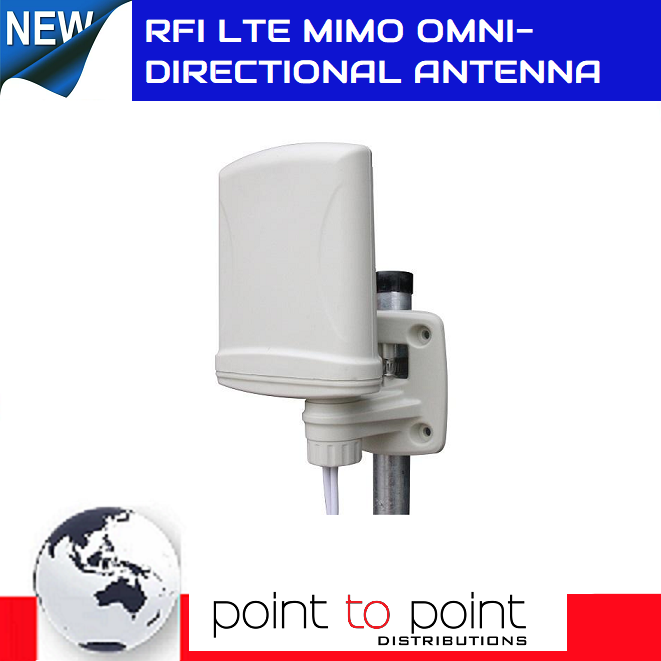

RFI LTE-XPOL-001 LTE MIMO Omni-Directional Antenna 790MHz-2700MHz

LTE-XPOL-001

RFI

Regular price $239.00 Sale

RFI LTE-XPOL-001 LTE MIMO Omni-Directional Antenna 790MHz-2700MHz - 2 X 5m 2 X SMA(M)

The LTE-XPOL-001 Omni-directional LTE MIMO antenna provides an innovative and future proof solution for 4G / 3G & 2G networks. LTE-XPOL-001 Features: It is ideal for those seeking increased signal and hence faster, more reliable data speeds on today's modern 4G networks. It incorporates two separately fed ultra-wideband elements in a single housing which provides full MIMO diversity for the networks of today and tomorrow. The weatherproof housing is designed for window (suction), pole or wall mounting and has dual 5m RG58 low loss cable terminated with SMA male connectors.

Features:

  • Omni-directional
  • Window, wall or pole mounted
  • Lightweight
  • Waterproof (IP65)



RFI LTE MIMO Omni-Directional Antenna (790-2700MHz); 2 X 5m 2 X SMA(M)
LTE-XPOL-001



Scope of Supply:

1 x Antenna with dual 5m low loss cables terminated with SMA male connectors

1 x Mounting bracket

1 x Hose clamp

4 x Suction cups

4 x Suction cup mounting pins

4 x Wall screws



Related Products

RFI SMA to TS9 Patch Lead

RFI Eave/Wall Mount Pole (Hockey Stick)

LTE-XPOL-001 Installation Instructions - click here

Specifications:
Cable And Connector 2 x RG58 Terminated with 2 x SMA(M)
Frequency Range 1710 - 2170, 2300 - 2700, 825 - 960
Power w 5
Nominal Gain Dbi 2.4 / 5 / 6
VSWR < 2.5:1
Mounting area Window (suction), wall or pole mount
Tuned bandwidth Full.
Frequency MHz 790-960 / 1710-2170 / 2500-2700
Brand RFI


Documentation

LTE-XPOL-001 Installation Sheet



What's in the box

1 x Antenna with dual 5m low loss cables terminated with SMA male connectors

1 x Mounting bracket

1 x Hose clamp

4 x Suction cups

4 x Suction cup mounting pins

4 x Wall screws
