RFI

SKU:LTE-XPOL-002-5G

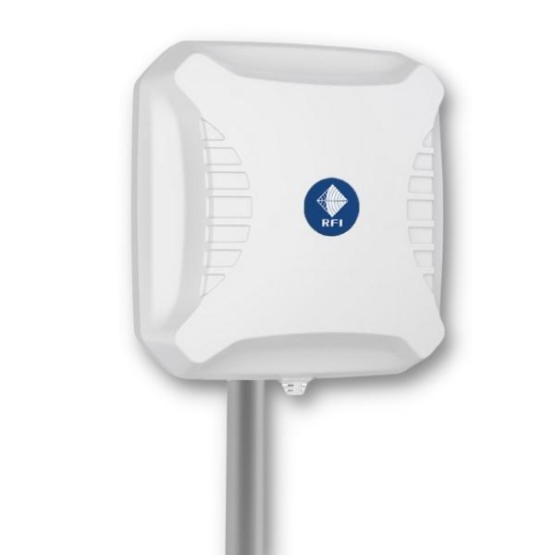

RFI LTE-XPOL-002-5G LTE 5G 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 10m Twin LMR195 SMA(M)

RFI LTE-XPOL-002-5G LTE 5G 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 10m Twin LMR195 SMA(M)

Regular price $485.00 AUD
Regular price Sale price $485.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock, ready to ship
View full details

RFI LTE-XPOL-002-5G LTE 5G 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 10m Twin LMR195 SMA(M)

The LTE-XPOL-002-5G is the third generation of this very popular Cross Polarised (LTE-XPOL-002-V2), cellular band, 2x2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.

The LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! The weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss LMR195 cable terminated with SMA male connectors.

Features:
- 2-3dB higher gain over all the bands compared to “V2”
- New 3400MHz-3800MHz, 5G band with 11dBi gain
- Consistent broadband performance
- X-Polarised 2x2 MIMO antenna
- Wall or pole mountable
- Lightweight & rugged
- Weatherproof & waterproof (IP65)
- High pattern consistency across bands for 4G/5G carrier aggregation


LTE-XPOL-002-5G



Connector SMA(M)
Frequency Range 1710 - 2170, 2300 - 2700, 3300 - 3800, 698 - 960
Nominal Gain Dbi 9 dBi @ 698-960MHz , 10 dBi @ 1710-2700MHz , 11 dBi @ 3400-3800MHz
Dimensions H 260, W 260
VSWR < 1.5:1 (over 95% of the band)
Termination comes we dual 10m low loss cable (LMR195) terminated with SMA male connectors
Construction Cream ABS
Tuned bandwidth Full. No tuning required
Brand RFI


Documentation

LTE-XPOL-002-5G Specifications

LTE-XPOL-002-5G Installation Guide



Scope of Supply:

1 x LTE-XPOL-002-5G Antenna with DUAL(2) low loss 10mtr LMR195 cables terminated with SMA male connectors

1 x Pole bracket with backing plate

1 x M6 x 60mm "U" bolt

4 x M6 x 12mm bolts

6x M6 washers

2x M6 nuts
