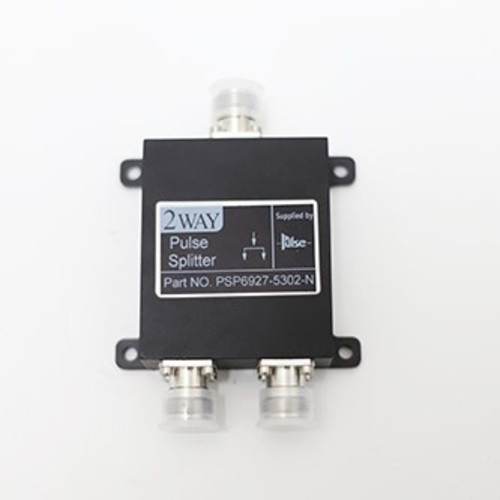

RFI Pulse 2 Way Splitter / Combiner 698-2700MHz, N type connection
These 2-way devices may be used in a range of RF signal splitting (divider) and combining applications and are designed to split RF source power into an equal ratio of power outputs, or combine multiple inputs to a single output with isolation between the ports.
These products feature broad operating frequency bandwidth and multi-carrier PIM rating, and are widely used in Distributed Antenna Systems (DAS), receiver distribution networks and low-power RF signal dividing and combining designs.
Specifications:
| Splits | 2 |
| Port To Port Isolation | 20dB typ. |
| Finish | Black - Painted |
| Connector Types All Termiantion Ports | N (F) |
| Insertion Loss dB | <3.3dB |
| Operational Temperature Range | -25° C to +65° C |
| Connector | N(F) |
| Frequency Range | 698 - 2700 |
| Weight [kg] | 0.25 |
| Component Type | Splitter/Combiner |
Documentation
View to PSP6827-5302-N Specifications
